04c-3 06c-3 08a-3 10a-3 12a-3 16a-3 20a-3 24a-3 28a-3 32a-3 36a-3 40a-3 48a-3 Short Pitch Roller Chain Made in Vietnam

Triplex Short pitch precision roller chains (A series)Roller chain application:Chain drives are widely used in various machinery in various industries such as agriculture, mining, metallurgy, petrochemicals and lifting and transportation. Chain drive can transmit power up to 3600kW, often used for p......

Send Inquiry

Product Description

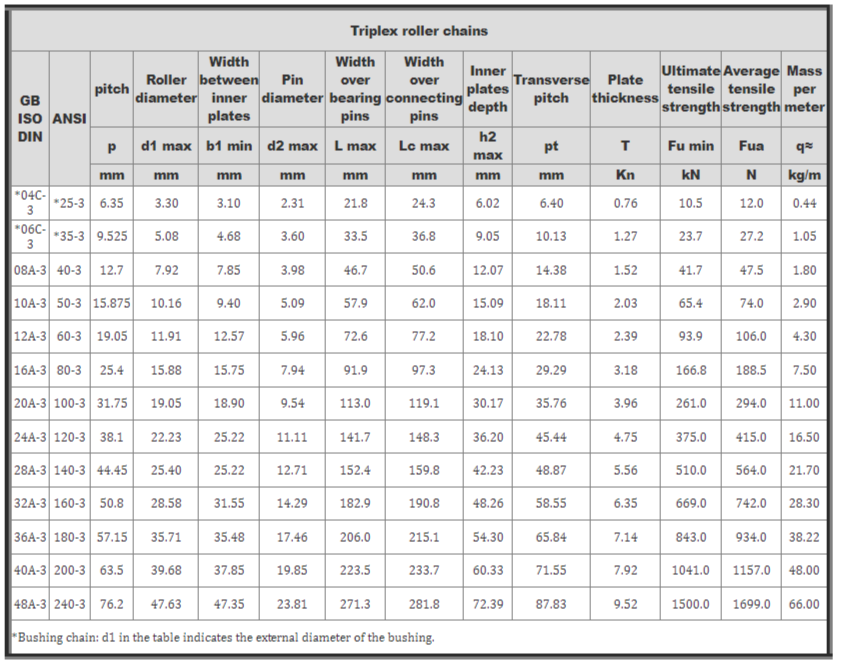

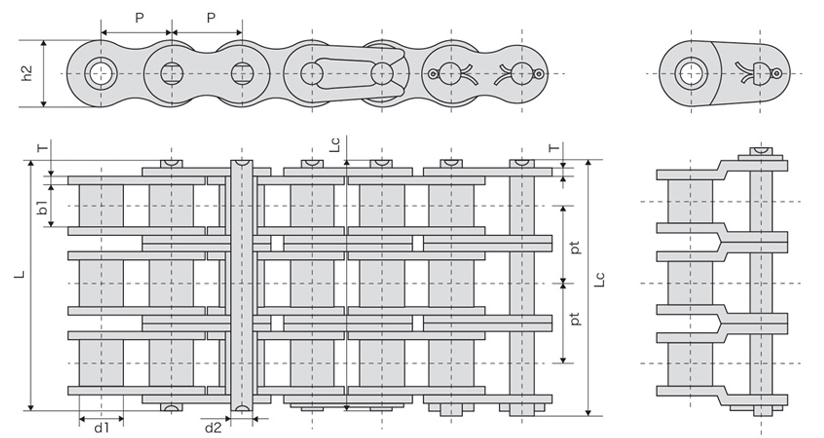

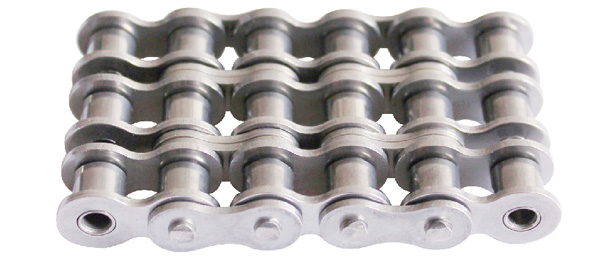

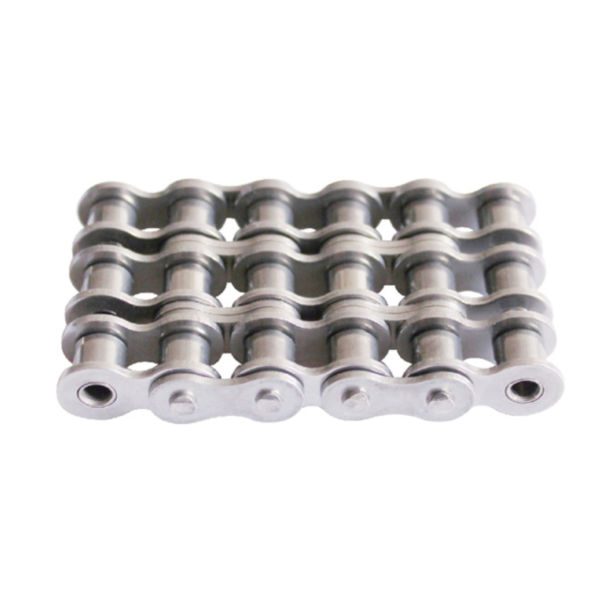

Triplex Short pitch precision roller chains (A series)

Roller chain application: Chain drives are widely used in various machinery in various industries such as agriculture, mining, metallurgy, petrochemicals and lifting and transportation. Chain drive can transmit power up to 3600kW, often used for power below 100kW; chain speed can reach 30~40m/s, common chain speed is below 15m/s; transmission ratio can be up to 15, generally less than 6, to .2 ~2.5 is appropriate.

Roller chain drive features: Advantages: Compared with the belt drive, there is no elastic sliding, which can maintain an accurate average transmission ratio, and the transmission efficiency is high; the chain does not require a large tension, so the shaft and the bearing are subjected to less load; no slip, reliable transmission, overload Strong ability to work well under low speed and heavy load. Disadvantages: Both the instantaneous chain speed and the instantaneous transmission ratio are changed, the transmission is poorly stable, and there are shocks and noises in the work. It is not suitable for high-speed applications, and is not suitable for the case where the direction of rotation changes frequently.

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

transmission chain (Driving Chain)	Short Pitch Precision Roller Chain (A Series)(1,2,3)	04C-1 06C-1-2-3 085-1-2-3 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3 40A-1-2-3 48A-1-2-3
	Short Pitch Precision Roller Chain (A Series)(1,2,3)			25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200 200-2 240
		Short Pitch Precision Roller Chain (B Series)(1,2,3)	06B-1-2-3 06B-1-2-3 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3 40B-1-2-3 48B-1-2-3 56B-1-2-3 64B-1-2-3 72B-1-2-3
		Heavy Duty Series Roller Chain(1,2)	08AH-1 10AH-1 12AH-1-2-3 16AH-1-2-3 20AH-1-2-3 24AH-1-2-3 28AH-1-2-3 32AH-1-2-3 40AH-1-2-3
		Side Bow Chain	40SB 43SB 50SB 60SB 63SB 80SB 08BSB 08BSBY1 10BSB 12BSB C2050SB
		Motorcycle Chain	410 415 415H 420 420H 428 428H 520 520H 525 525H 530 530H 630 630H
		Engine Mechanism Chain (Timing Chain)	CL04
		Self-Lubrication Roller Chain	08BSLR 10BSLR 12BSLR 16BSLR 40SLR 50SLR 60SLR 80SLR
		Double Pitch Transmission Chain	208A 208B 210A 210B 212A 212B 216A 216B 220A 220B
		Double Pitch Transmission Chain		2040 2050 2060 2080 2100
		Bush Chain	P15F-B P20-B P25-B P25F1-B P30F2-B P36-B P40-B P45-B P50-B P55-B P60-B P70-B P80-B
Conveyor Chain	Roller Chain With Straight Side Plates (A Series)	C08A-1-2-3 C10A-1-2-3 C12-1-2-3 C24A-1-2-3 C32A-1-2-3
	Roller Chain With Straight Side Plates (A Series)			C35 C40-1-2-3 C50-1-2-3 C80-1-2-3 C100-1-2-3 C120-1-2-3 C140-1-2-3 C160-1-2-3
		Roller Chain With Straight Side Plates (B Series)	C08B-1-2-3 C10B-1-2-3 C12B-1-2-3 C16-1-2-3 C20B-1-2-3 C24B-1-2-3 C28B-1-2-3 C32B-1-2-3
		Double Pitch Conveyor Chain	C208A C208AH C208B C208BL C210A C210AL C212A C212AH C212AHL C216A C216AL C216AH C216AHL C220A C220AL C220AH C220AHL C224A C224AL C224AH C224AHL C232A C232AL C232AH C232AHL
		Double Pitch Conveyor Chain		C2050 C2052 C2060 C2062 C2060H C2080 C2080H C2082 C2082H C2100 C2100H C2102 C2102H C2120 C2120H C2122 C2122H C2160 C2160H C2162 C2162H
		Double Pius Speed Chain	BS25-C206B BS25-C208A BS25-C210A BS25-C212A BS30-C206B BS30-C208B BS30-C210B BS30-C212B
		Conveyor Chain (M Series)	M20 M28 M40 M56 M80
		Hollow Pin Conveyor Chain (MC Series)	MC28 MC56 MC112 MC224
		Conveyor Chain (FV Series)	FV40 FV63 FV90 FV112 FV140
		Conveyor Chain (FVT Series)	FVT40 FVT63 FVT90 FVT112 FVT140 FVT180 FVT250 FVT315
		Hollow Pin Conveyor Chain (FVC Series)	FVC63 FVC90 FVC112 FVC140 FVC180 FVC250 FVC315
		Conveyor Chain (Z Series)	Z40 Z100 Z160 Z300
		Conveyor Chain (ZE Series)	ZE40 ZE100 ZE160 ZE300
		Hollow Pin Conveyor Chain (ZC Series)	ZC21 ZC40 ZC60 ZC150 ZC300
		Hollow Pin Chains	08BHPF 08BHPF5 08BHP9 10BHPF3 10BHPF4 12BHPF2 12BHPF3 16BHPF3 16BHPF4 40HP 08BHPF7 08BHP 50HP 50HPF4 50H-HP 60HP 60HPF1 80HP 80HPF1 80HPF2 80H-HP 80HPF3 80HPF4 HB41.75F5 A2080HP
		Welded type cranked link chains	WR78 WH78 WR82 WH82 WR106 WH106 WR110 WH110 WR111 WH111 WR124 WH124 WR132 WH132 WR150 WH150 WR155 WH155 WR157 WH157 WR78F5 WH78F4 WH124F1 WH111F1
		Palm oil Chains	P101.6F2 P152F14 P152F17 P152F29 90R-S P101.6F64 P76.7 P152F31
		Sugar mill chains	DH9063 DH2198 P152F93K2 P152F78K2 DH09060 DH1796 P152F77-AS2 P203.2F9
		Rubber gloves carrier chains	P100F155 P100F13 P100F139 P150/90
		Lumber conveyor chains	81X 81XH 81XHE 81XHH 81XHS 500R 441.100R
		Sharp top chains	08AF34 08BF21 10AF8 41F6 06BF1 06BF37 08AF41 08BF44 08AF8...
Stainless Steel Chain	Stainless Steel Short Pitch Precision Roller Chain(A Series)	25SS-1 35SS-1 41SS-1 40SS-1 50SS-1 60SS-1 80SS-1 100SS-1 120SS-1
		Stainless Steel Short Pitch Precision Roller Chain(B Series)	05BSS-1 06BSS-1 08BSS-1 10BSS-1 12BSS-1 16BSS-1 20BSS-1 24BSS-1
		Stainless Steel Roller Chain With Straight Side Plates	C40SS-1 C50SS-1 C60SS-1 C80SS-1 C100SS-1 C120SS-1 C08BSS-1 C10BSS-1 C12BSS-1 C16BSS-1 C20BSS-1 C24BSS-1
		Stainless Steel Double Pitch Transmission Chain	2040SS 2050SS 2060SS 2080SS 2100SS 2120SS 208BSS 210BSS 212BSS 216BSS 220BSS 224BSS
		Stainless Steel Double Pitch Conveyor Chain	C2040SS C2040HSS C208BSS C2050SS C2060SS C2060HSS C2080SS C2080HSS C2100SS C2100HSS C2120SS C2120HSS
		Stainless Steel Hollow Pin Chain	08BHFSS 40HPSS 50HPSS 60HPSS 12BHPSS 80HPSS C2040HPSS C2050HPSS C2060HPSS C2080HPSS HB50.8SS
		Stainless Steel Double Pitch Hollow Pin Chain	C2042HPSS C2052HPSS C2062HPSS C2082HPSS C2042H-HPSS C2052H-HPSS C2062H-HPSS C2082H-HPSS
Lifting Chain	Car Parking Chain	12AT-1 16AT-1-2 20AT-1-2-3 24AT-1-2
		Leaf Chain	LH0822 LH0823 LH0834 LH0844 LH0846 LH0888 LH1022 LH1023 LH1034 LH1044 LH1046 LH1066 LH1088 LH1222 LH1223 LH1234 LH1244 LH1246 LH1266 LH1288
		Leaf Chain		BL422 BL423 BL434 BL444 BL446 BL466 BL488 BL522 BL523 BL534 BL544 BL546 BL566 BL588 BL622 BL623 BL634 BL644 BL646 BL666 BL688
		Multile Plate Bearing Pin Chain	LF30 MP50F2 MP50.8 MP70F1 MP70F2 MP70F3 MP80F1 MP90F1 MP90F2 MP110F1
		Rollerless Lift Chain	45-1 55-1 65-1 85-1 105-1 125-1 145-1 165-1
Agricultural Chain	S Type Steel Agricultural Chain & Attachments	S32 S42 S45 S52 S55 S62 S77 S88 A550 A620
		C Type Steel Agricultural Chain with Attachments	CA550 CA550/S55 CA555 CA550HD CA550V CA557 CA620 CA2801 38.1R 38.4R 38.4V 38.4VB
		Rice Harvester Chain	S3558T-48001 S3558T-48002
Drop Forged Chain Series	Drop Forged Rivetless Chain	Imperial: 80H X348 X458 468H X658 X678 678 698 998 9118 S348 S458 S678 S698 S9118, Metric system: XT100 XT160
		Cast Detachable Chain	55 57 62 74 78
		Steel Detachable Chain	25 32 32W 51 52 55 62
Cast Iron Chain	Cast Iron Chain (C Series)	C55 C55L C77 C188 C188L C102B C111 C131 C132
		Cast Iron Chain (H Series)	H60 H78 H82 H110
		Cast Iron Chain (4 Series)	462 477 488 4103 720 720S 730
		Cast Iron Chain BRH188	BRH188 C188CP C102B-K2 C55A C55B C55D CC600 H78A H78B H130 H138 MC33 103 4103F29 907-E51
		Welded chains	WR78 WH78 WR82 WH82 WR124 WH124
		Forging Hanging Chain	X228 X348 X458 X678 698

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
