The chain is located at the external surface of the wheel, equal a belt, and the teeth stick beyond your chain. The chain grips with the wheel through tooth that are located in the bottom of the chain. The chain tooth and the chain wheel the teeth are so constituted that by wear at the linking components the pitch raises, the chain accordingly tend to re-locate on the tooth surfaces, so to hold on a more substantial pitch diameter; the consequence of this move is definitely that the pitch of the chain and the pitch of the wheel boost to the same extent.
The load on the teeth is divided across all of the teeth within the contact arc, whatever the extension by wear.
The links do not display any gliding on or of one's teeth, which posesses soft and practically noiseless gripping; this transmission was also designed for transmitting power or more speeds than this was allowed for roll chains.
The return of the “low noise chain” can amount 99% and for the entire transfer from 96% to 97% under favourable conditions; of 94% upto 96% there exists a guarantee with smartly designed transmission under typical operating conditions.
The life time and maintenance of low noise chains depends mainly on the look of the entire chain drive, the strain arrangement included. At extremely loose chains the balancing of the chain will speed up the wear. A good tension arrangement can dual the lifetime. Hook clearance is necessary with a minimum of +/-3 mm. Although the chain gets higher Special Chains positioned on the teeth upon stretching of the pitch, this stretching is not moderated by the straight portion of the chain, which implies that this section is slacking at wear.
Special Chain
RENCHER CHAIN
FORGED FURCATED CONVEYOR CHAIN
LARGE HEAVY DUTY LOADING CHAIN
WH TYPE HEAVY DUTY LOADING CHAIN
PARK CHAIN
PAVER CHAIN
SMELT ROLLING LOADING CHAIN
TOBACCO MACHINE CHAIN
TRACK CHAIN
WTR-A WTR-B TYPE TRAY WHEEL LOADED CHAIN
STEEL ROLLER CHAIN
STEEL ROLLER CHAIN ATTACHMENTS
STEEL PINTLE CHAIN
STEEL DETACHABLE CHAIN
STRAIGHT SIDEBAR CHAIN FOR SUGAR MACHINE
OFFSET SIDEBAR CHAIN FOR SUGAR MACHINE
SUGAR MACHINE CHAIN WITH EAR-SHAPED ATTACHMENT

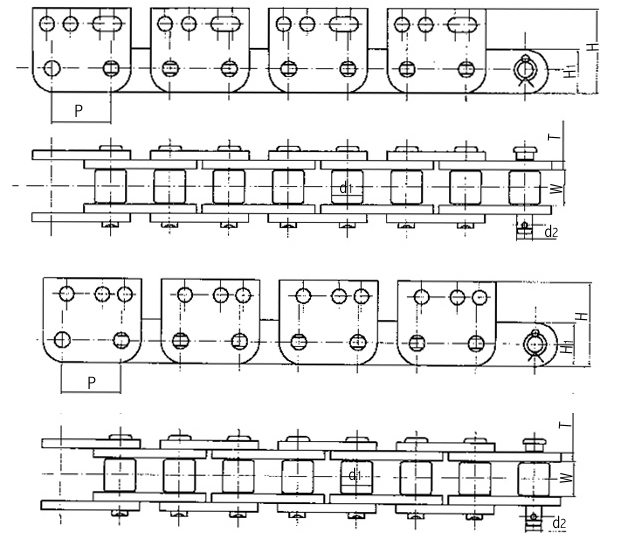

| Chain No. | P | W | d2 | d1 | H | H1 | T | Q | q |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
| 417 | 42.01 | 25.4 | 11.14 | 22.23 | 60.33 | 31.75 | 6.35 | 160 | 9.12 |
| 22237 | 42.01 | 25.4 | 11.14 | 22.23 | 58.72 | 34.93 | 4.75 | 100 | 7.15 |

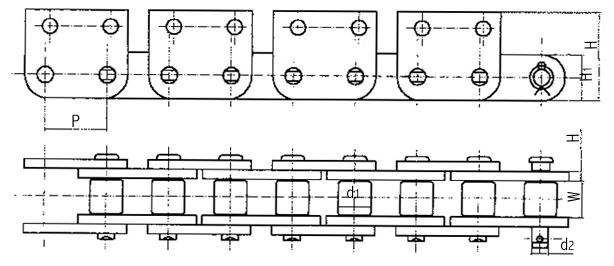

| P | W | d2 | d1 | H | H1 | T | Q | q |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m |
| 42.01 | 25 | 11.1 | 22.2 | 57 | 31.75 | 5 | 106 | 7.74 |
| 50.8 | 31.55 | 14.27 | 28.58 | 75.5 | 38.5 | 6.5 | 168 | 12.41 |
| 77.9 | 39 | 19.05 | 41.25 | 101 | 57 | 9.5 | 370 | 21.53 |
