08B-G2 Industrial Steel Pipe Conveyor Single Row Top Rubber Coating Chain Tariff-Free Made Vietnam Transmission Chains Product

Universal type FlatC type Gap, FlatD type Gap, ConcaveA Type (with outer plate)Chain No.PitchRoller diameterWidth between inner platesPin diameterPlate depthPin lengthPd1 maxb1 mind2 maxh2 maxL1 maxL2max08B-G212.78.517.754.4511.83431.210A-G215.87510.169.45.081541.837.810B-G215.87510.169.655.081......

Send Inquiry

Product Description

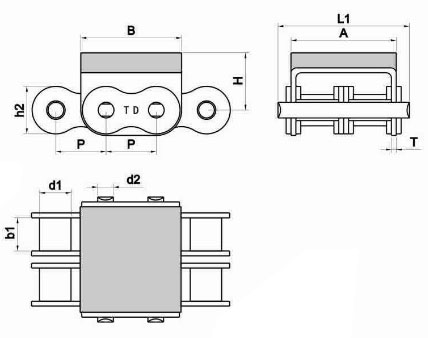

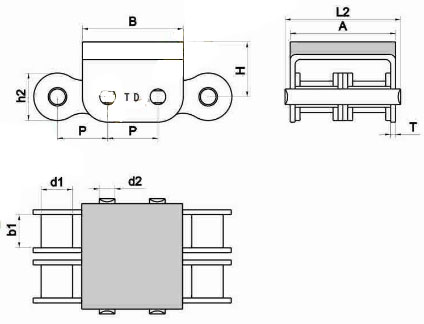

Universal type Flat

C type Gap, Flat

D type Gap, Concave

A Type (with outer plate)

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Plate depth	Pin length
Chain No.		P	d1 max	b1 min	d2 max	h2 max	L1 max	L2 max
08B-G2	12.7	8.51	7.75	4.45	11.8	34	31.2
10A-G2	15.875	10.16	9.4	5.08	15	41.8	37.8
10B-G2	15.875	10.16	9.65	5.08	14.7	38.4	35.4
12A-G2	19.05	11.91	12.57	5.94	16	51	44.5
12B-G2	19.05	12.07	11.68	5.72	16	46.6	39.1
16A-G2	25.4	15.88	15.75	7.92	24	66.7	57.2
16B-G2	25.4	15.88	17.02	8.28	21	73.2	60.93

Chain No.	Plate and attachment size					U plate thickness	Ultimate tensile strength	Weight per meter
Chain No.		A	B	H	T	Q min kn/lbf	kg/m
08B-G2	28.4	24.2	12.3	1.5	32/7273	2.07
10A-G2	36	30	17	2	42.3/9822	2.72
10B-G2	33.3	30	16	1.5	44.5/10114	2.56
12A-G2	44.5	36	17	1.85	55.3/12136	3.31
12B-G2	39.1	36	16	1.85	57.8/13136	3.21
16A-G2	57.2	46	20	2.42	115/30124	7.27
16B-G2	60.93	49	22	1.5	106/26094	7.35

^{For more types,Please click here!}

Click here to contact us for more discounts!

Please click on the photos below to visit their websites.

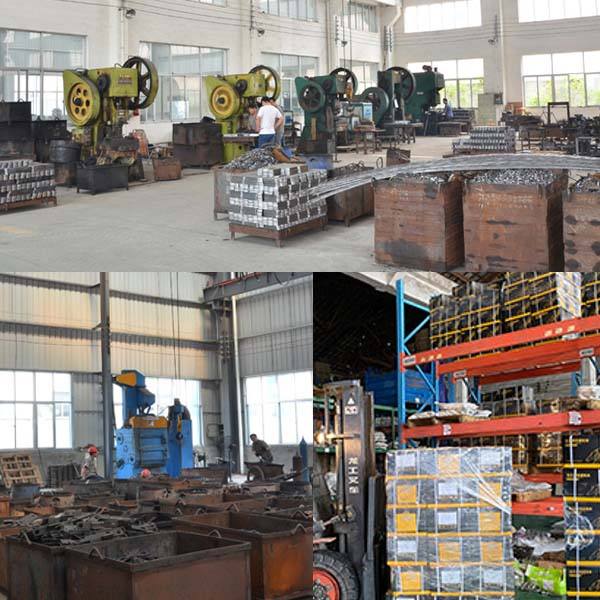

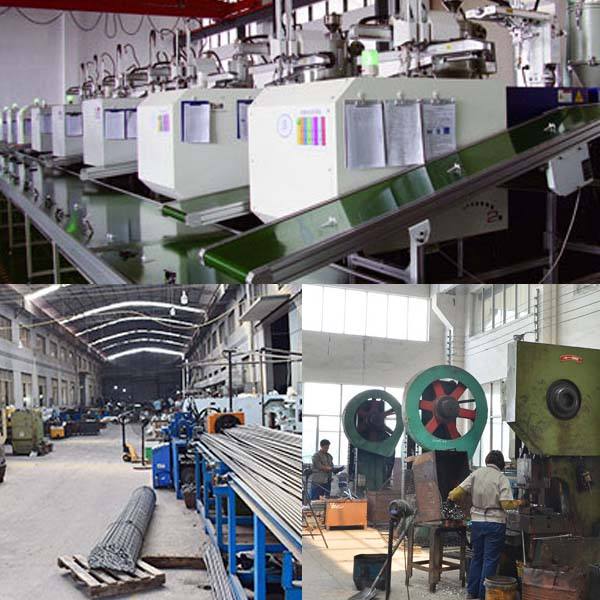

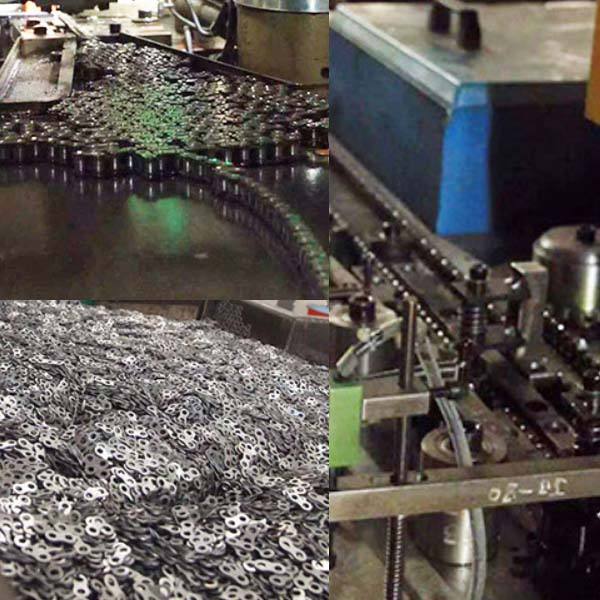

We have more than 10 years of production experience ,professional equipment and workers.

We are specialized in manufacturing transmission and conveyor roller chains in China.
We also can produce all kinds of non-standard roller chain according to your drawing.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
