20W / 30W Air Cooling All-in-one Fiber Laser Marker Machine Tariff-free Made in Vietnam

All-in-one Fiber Laser MarkerProduct advantagesAn all-in-one fiber laser marker is a compact and integrated laser marking system that combines the laser source, marking head, and control system into a single unit. It is designed to provide a complete and self-contained solution for laser marking app......

Send Inquiry

Product Description

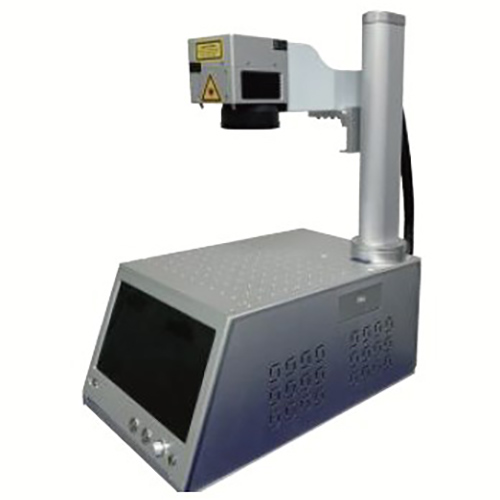

All-in-one Fiber Laser Marker

Product advantages

An all-in-one fiber laser marker is a compact and integrated laser marking system that combines the laser source, marking head, and control system into a single unit. It is designed to provide a complete and self-contained solution for laser marking applications.

Applications

Metal and Non-metal Materials Glass Marking LCD Screen,Plasma Screen Marking Thin Ceramic Marking

Silicon Chips Marking

IC Grain Marking

Polymer Film Marking

Auto Parts Marking Other High Value-added Products Marking

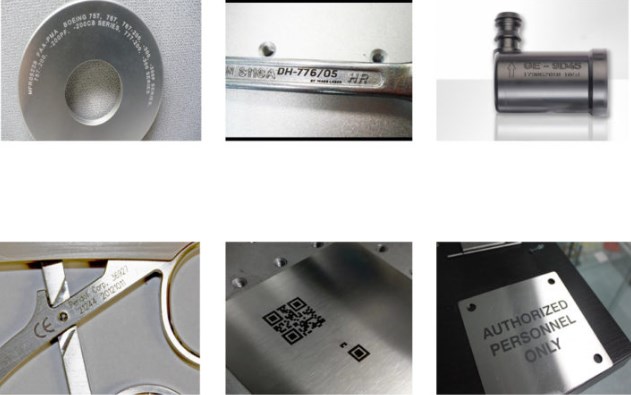

Product samples

For more details, please click here to contact us!

Voltage	110V~220V
Fiber Laser Source	Maxphotonics (Raycus,JPT,MAX,IPG)
Output Power	20W / 30W
Laser wavelength	1064nm
Modulation frequency range	20-100kHz
Speed	0-8000mm/s
Precision	±0.003mm
Minimum line width	0.015mm
Minimum height of characters	0.15mm
Cooling way	Air cooling
Marking range	110x110mm
Laser power supply	0.5KW,220V/50Hz, 110V/60HZ
Software	Auto-cad, CorelDraw, Photoshop software compatible
Rotary device	Optional Computer system:Windows xp,Windows 7 32bits
Weight	31KG
Wooden case packing size	603066cm
Packing weight	52KG

Key Features and Benefits: 1. Compact and Space-saving: The all-in-one design of the fiber laser marker saves space and simplifies installation. It eliminates the need for separate components or additional equipment, making it suitable for environments with limited space or where portability is required. 2. Integrated Laser Source: An all-in-one fiber laser marker incorporates the laser source within the system. It typically utilizes a fiber laser, which offers high beam quality, stability, and reliability. The integrated laser source eliminates the need for external laser modules or separate laser units. 3. Versatile Material Compatibility: All-in-one fiber laser markers can mark a wide range of materials, including metals (such as stainless steel, aluminum, brass, copper), plastics, ceramics, glass, and more. They offer versatility in material compatibility, making them suitable for various applications across different industries. 4. High Precision Marking: These laser markers provide precise and accurate marking results. The focused laser beam can achieve small spot sizes, resulting in sharp and detailed markings. They can create various marking content, including text, serial numbers, barcodes, logos, graphics, and more. 5. User-friendly Interface: All-in-one fiber laser markers typically come with user-friendly software and a control interface for easy operation and adjustment of marking parameters. The software may offer features like importing graphics, creating variable data, and adjusting marking settings to meet specific requirements. 6. Non-contact Marking: Laser marking is a non-contact process, meaning the laser beam does not physically touch the material. This eliminates the risk of damage or contamination, ensuring clean and undisturbed markings. 7. Integration with Automation: All-in-one fiber laser markers can be integrated into automated systems, such as production lines or robotic work cells. This integration allows for seamless marking operations, reducing manual handling and increasing overall production efficiency. 8. Maintenance and Service: The all-in-one design simplifies maintenance and servicing, as all the components are housed within a single unit. This makes it easier to access and service the laser marker, reducing downtime and ensuring smooth operation.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
