Brand New Tariff-free PHSB Series Inch Dimension Inlaid Liner Rod Ends With Female Threaad Made in Vietnam

PHSB Rod End Bearing * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required * Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion * Applicable to instrumentation, ......

Send Inquiry

Product Description

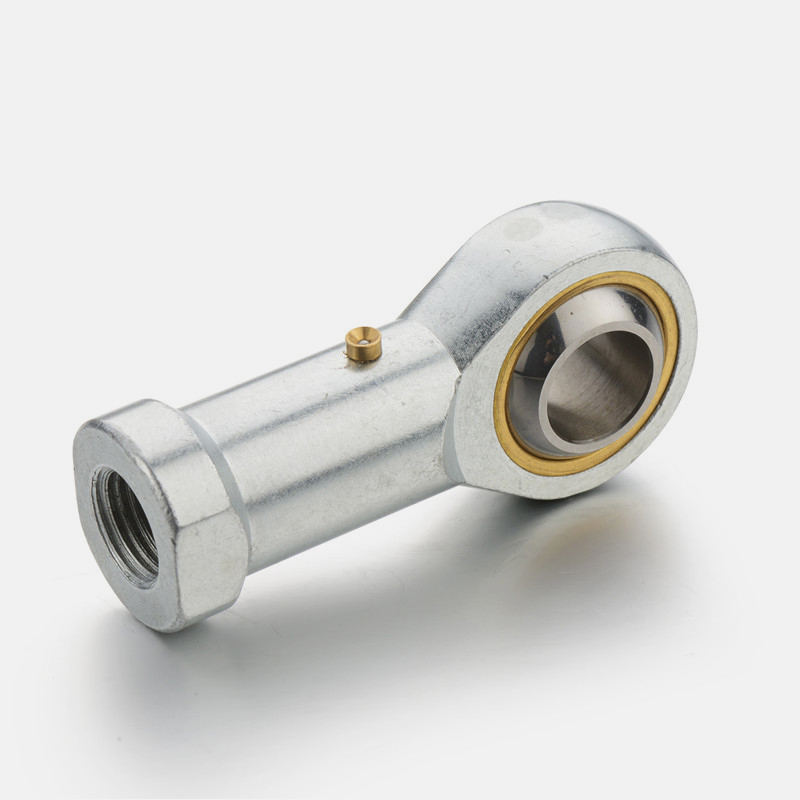

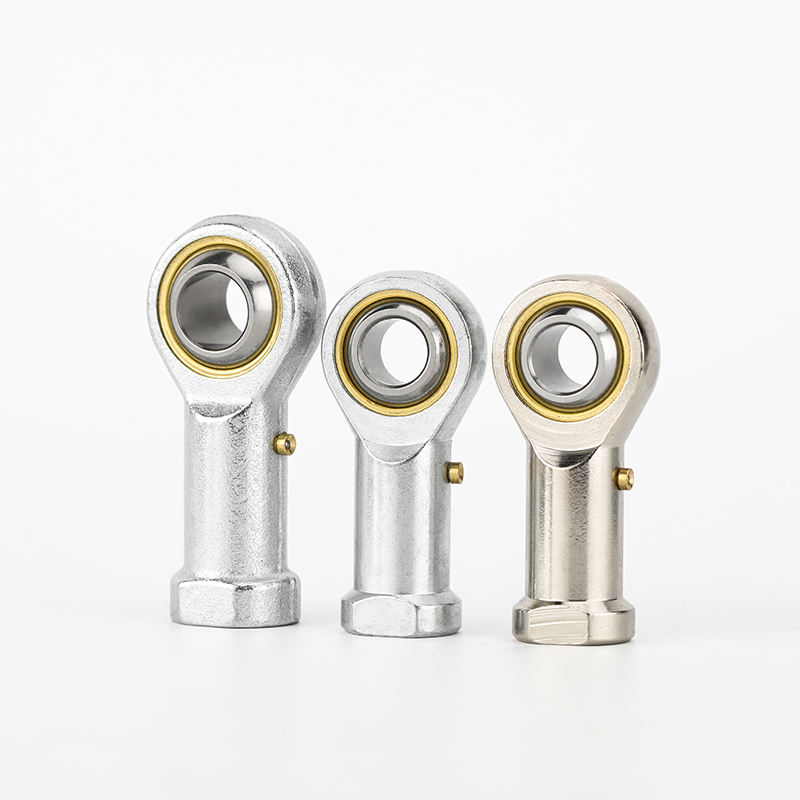

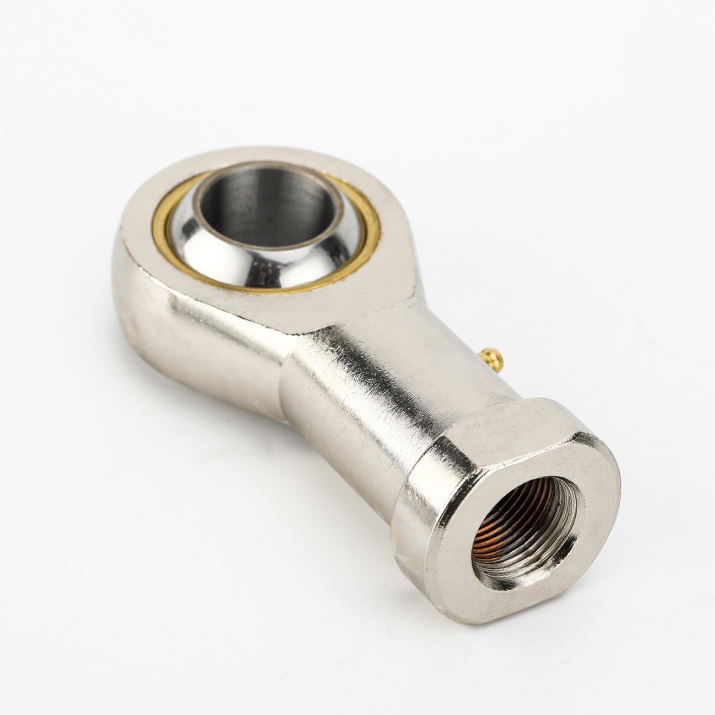

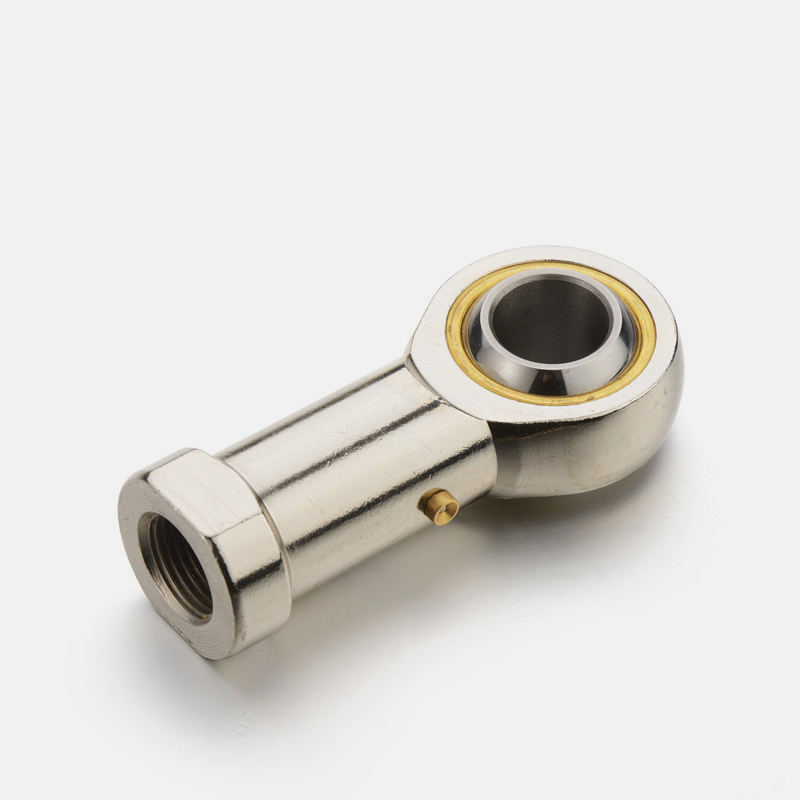

PHSB Rod End Bearing

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Part Number	Dimensions(mm)					a°≈	Weight(g)
	d	d3	B
PHSB 3	0.19	0.625	0.312	13	14
PHSB 3		4.826	15.88	13	14	7.92
PHSB 4	0.25	0.75	0.375	13	24.5
	6.35	19.05	9.53
PHSB 5	0.312	0.875	0.437	13	35
	7.9385	22.23	11.1
PHSB 6	0.375	1	0.5	13	59.5
		0	25.4			12.7
		9.525
PHSB 7	0.437	1.125	0.562	13	77
		5	28.58			14.27
		11.11
PHSB 8	0.5	1.312	0.625	13	129
		0	33.32			15.88
		12.7
PHSB 10	0.625	1.5	0.75	13	189
		15.88	38.1			19.05

PHSB 12	0.75	1.75	0.875	13	284
		19.05	44.46			22.23

PHSB 16	1	2.75	1.375	13	973
		25.4	69.85			34.93

For left-hand thread surffix“L”is added to bearings number and thread signeg POSB6L M3/8*24gL
The surface of sphrical plain with a bronze line
To plate zine on the surace of rod body the housing with a lubrication or agrease nipple.
