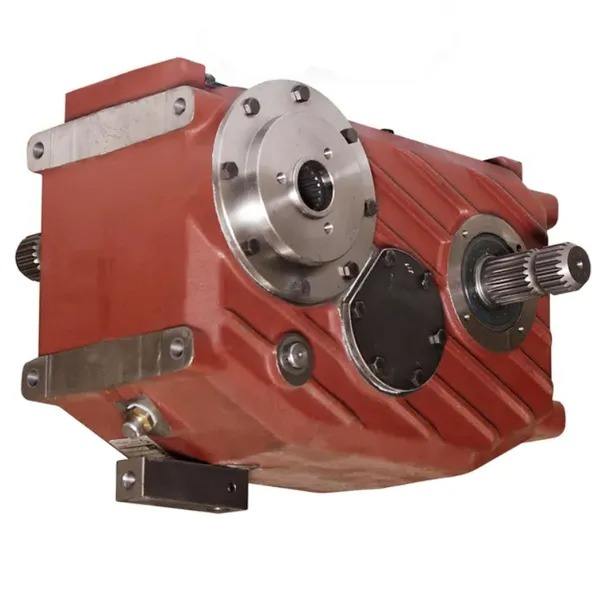

Definition: A feed mixer gearbox is a mechanical device used in feed mixing equipment to control the speed and torque required for efficient mixing of animal feed ingredients. It is a gearbox specifically designed for the unique demands of feed mixing applications.Functional Features:The primary fun......
Definition:A feed mixer gearbox is a mechanical device used in feed mixing equipment to control the speed and torque required for efficient mixing of animal feed ingredients. It is a gearbox specifically designed for the unique demands of feed mixing applications.Functional Features:The primary function of a feed mixer gearbox is to receive power from an external power source, such as an electric motor or a power take-off (PTO) shaft, and transmit it to the mixing mechanism. It controls the rotational speed and torque to ensure thorough and uniform mixing of various feed ingredients.

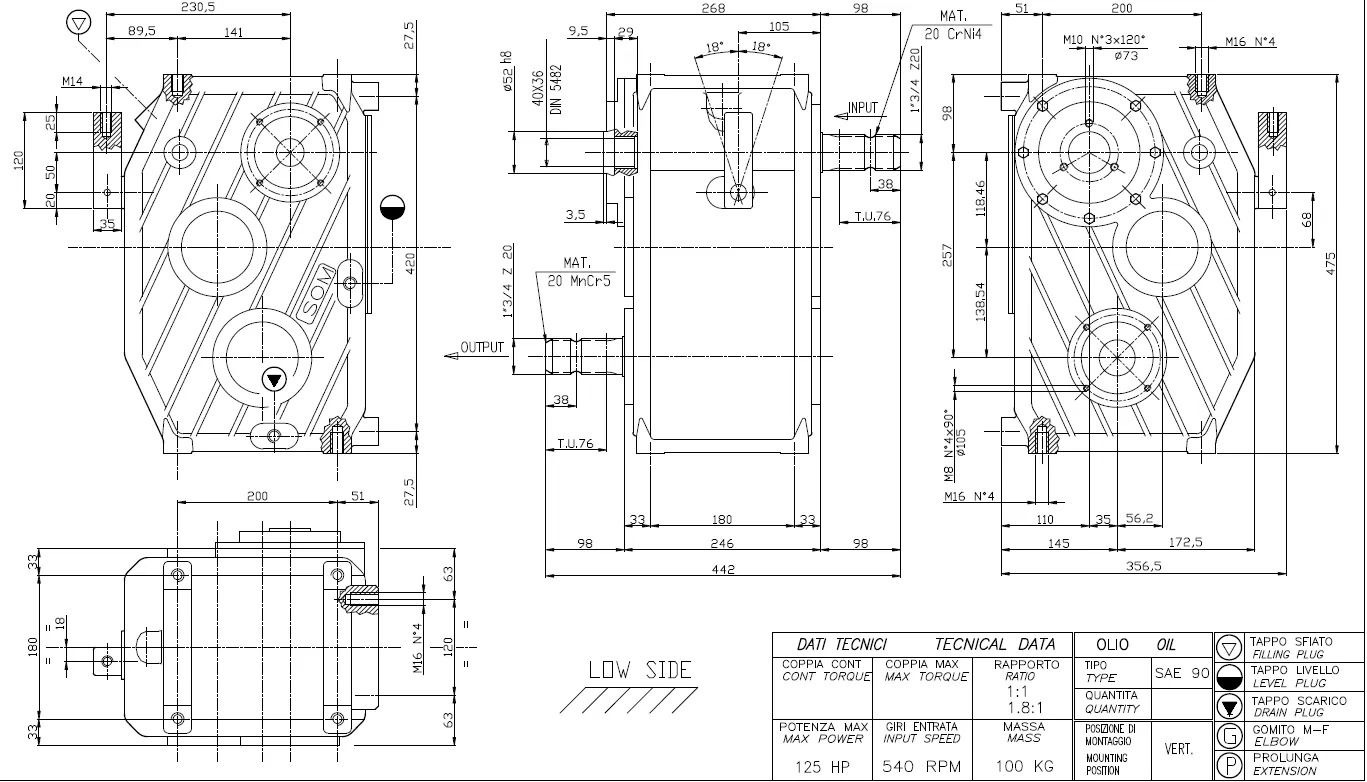

Dimension
For more details, please click here to contact us!
Advantages:
1. Speed Control: Feed mixer gearboxes allow precise adjustment of mixing speed, enabling operators to achieve the desired mixing consistency and homogeneity.
2. Torque Management: These gearboxes provide the necessary torque to handle the resistance encountered during mixing, ensuring efficient operation and preventing motor overload.
3. Durability: Feed mixer gearboxes are designed to withstand heavy loads and continuous operation, offering robustness and reliability in demanding feed mixing environments.
4. Versatility: They can be adapted to different mixer designs and configurations, making them suitable for a wide range of feed mixing equipment.
5. Efficiency: These gearboxes optimize power transmission, minimizing energy losses and enhancing overall mixing efficiency.

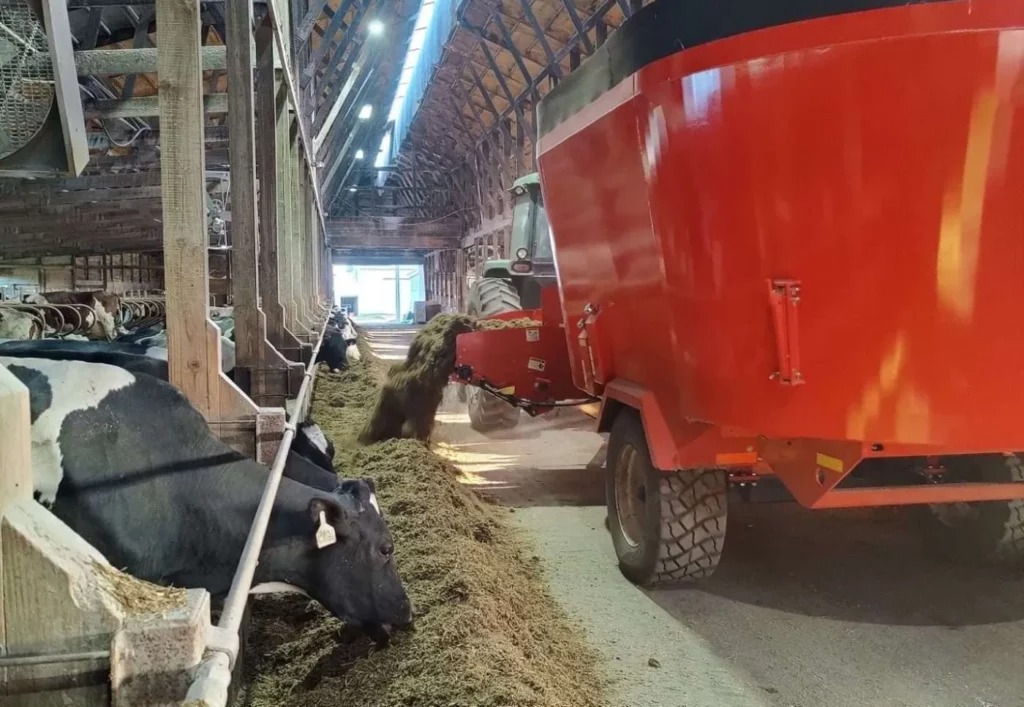

Applications: Feed mixer gearboxes are extensively used in the agricultural industry, specifically in feed mills, livestock farms, and other animal feed processing facilities. They are employed in various types of feed mixers, including horizontal paddle mixers, vertical mixers, and ribbon mixers.
Working Principle: The feed mixer gearbox receives power from the motor or PTO shaft and transfers it through a series of gears. These gears reduce the input speed while increasing the torque to meet the requirements of the mixing mechanism. The gearbox ensures that the rotational force is properly distributed to achieve thorough blending of feed ingredients.
A feed mixer gearbox is a specialized mechanical component used in feed mixing equipment. It controls the speed and torque required for efficient and uniform mixing of animal feed ingredients. Its advantages include speed control, torque management, durability, versatility, and efficiency. Feed mixer gearboxes find application in feed mills, livestock farms, and other animal feed processing facilities, working by transmitting power through gears to facilitate effective feed mixing.
We also provide PTO shafts.
Feed mixer gearboxes and power take-off (PTO) shafts work together to facilitate the operation of feed mixing equipment. Here's how they collaborate:
1. Power Source: The PTO shaft is connected to the power source, which is typically a tractor or an engine. It transfers rotational power from the source to the feed mixer gearbox.
2. PTO Connection: The PTO shaft is connected to the input shaft of the feed mixer gearbox. This connection allows the rotational energy from the power source to be transmitted to the gearbox.
3. Power Transmission: As the power source rotates the PTO shaft, the rotational energy is transferred to the input shaft of the feed mixer gearbox. The gearbox then receives and controls this power, adjusting the speed and torque according to the mixing requirements.
4. Gearbox Operation: The feed mixer gearbox contains a system of gears that transmit and modify the rotational energy received from the PTO shaft. These gears adjust the speed and torque to match the specific mixing needs of the feed ingredients.
5. Mixing Mechanism: The output shaft of the gearbox is connected to the mixing mechanism of the feed mixer equipment. The gearbox transfers the controlled power to the mixing mechanism, enabling it to blend the feed ingredients thoroughly and uniformly.
In summary, the PTO shaft serves as the power source, delivering rotational energy from a tractor or engine to the feed mixer gearbox. The gearbox, in turn, receives and controls this power, adjusting the speed and torque for efficient feed mixing. The gearbox's output shaft connects to the mixing mechanism, allowing the controlled power to drive the mixing process. This collaboration between the PTO shaft and the feed mixer gearbox ensures the proper functioning and operation of the feed mixing equipment.

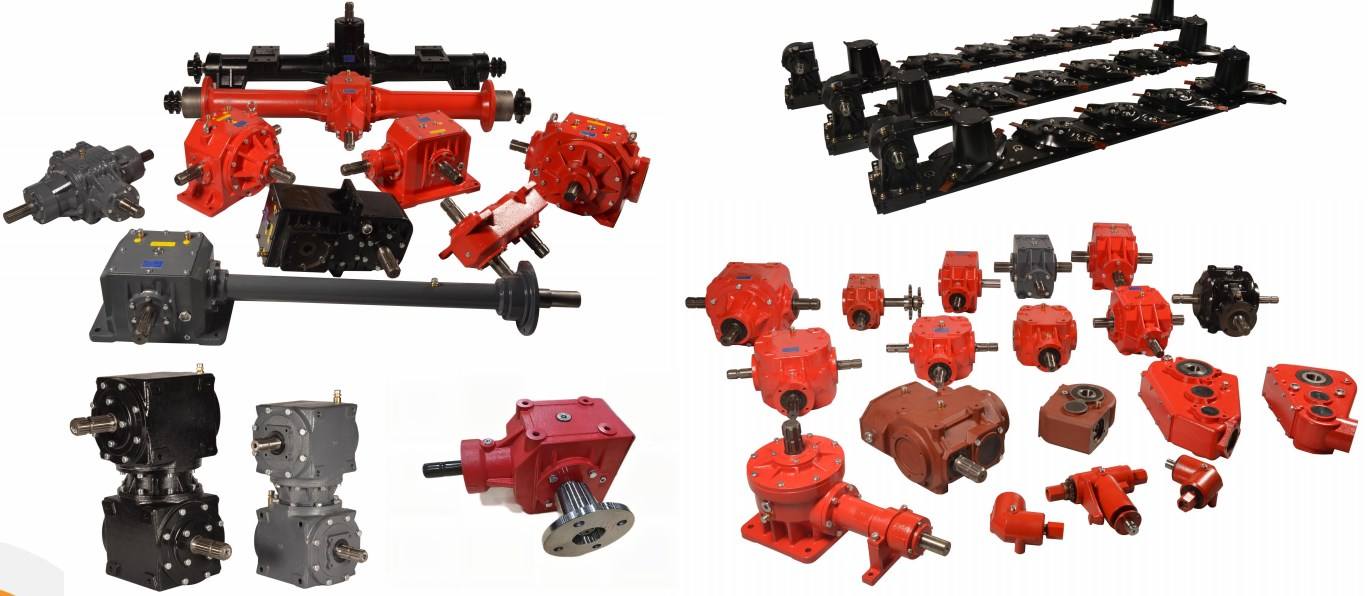

Other agricultural gearbox
HZPT MACHINERY (HANGZHOU) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Hangzhou R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
