Product Description

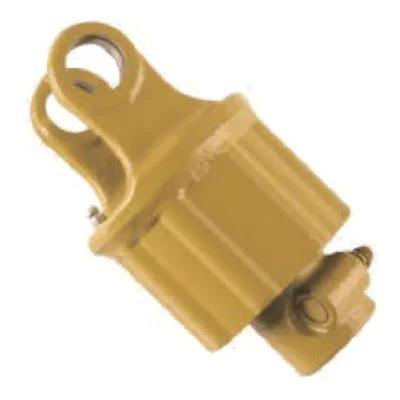

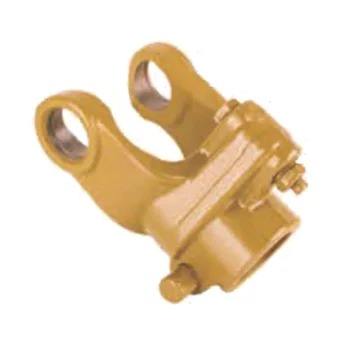

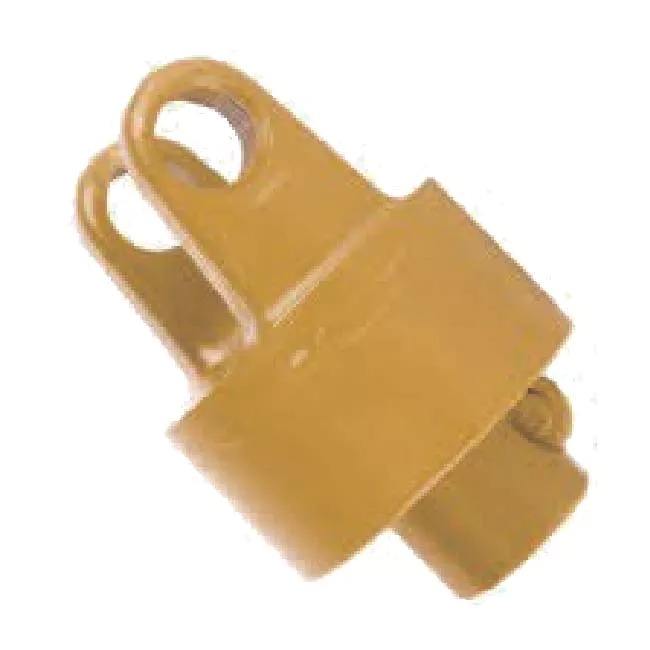

Shear bolt torque limiters type SB is devices able to interrupt power transmission when the torque transmitted exceeds the setting. This interruption in power is caused by the shearing of a bolt. This bolt must be replaced before power can be restored.
Use of shear bolt torque limiters is recommended to avoid damage to drivelines mounted on implements subject to accidental overloads or torque peaks.
Note: For the safety of the operator and reliable function of the driveline, replace the bolt only with one equal in length,diameter, and grade to the original.
The torque setting for shear bolt torque limiters is usually two or three times the median torque M and must never exceed the maximum torque of the driveline (Max). Standard settings for each size of SFT driveline are in the table to the right. SB torque limiters size S1 to S4 have a pushpin attachment to the splined shaft. Larger sizes use a taper-pin attachment.

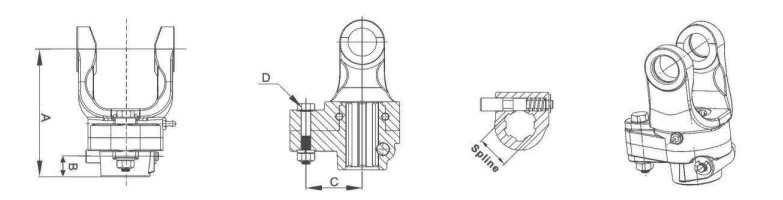

Series	Torque	Spline	A(mm)	B(mm)	C(mm)	D(mm)
1SB	570	1 3/8" Z6	95	20	35	M6*40
1SBT1	740		95			M6*40			45
2SB	740				98		45	M6*40
2SBT1	790				98		48	M6*40
3SB	1110			102	21	38	M8*45
3SBT1	1200			102			M8*45		40
4SB	1400			107			48	M8*50
4SBT1	1600			107			55		M8*50
5SB	1600			114	21	46	M8*45
5SBT1	2100			114				60	M10*50
6SB	1750			137			55	M8*55
6SBT1	2500			137			55		M10*55
32SB	1600			114	24	46	M8*45
32SBT1	2100			114				46	M10*50
7SB	2050			152			45	M10*60
7SBT1	3200			152			49		M12*65

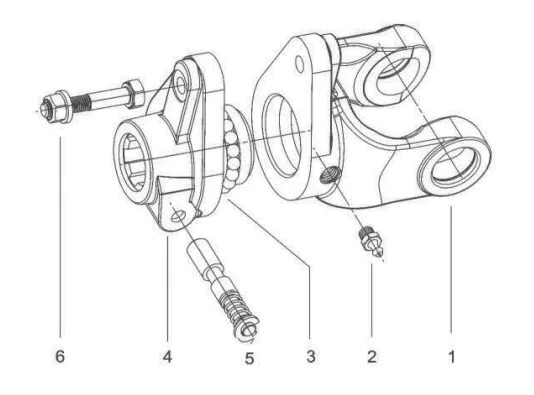

1. Yoke
2. Grease nipple
3. Steel ball
4. Hub
5. Pushpin
6. Shear bolt&Nut

We also supply PTO shaft.
If you are interested, you can click here: https://hzpt.com/agricultural-pto-shaft/
