EP-RC33 Widely Used Superior Quality Gearbox Lawn Mower Series for Agricultural Tariff-free Made in Vietnam

Characteristic *Gears and shafts are quenched and have high surface hardness.*Use high-quality oil seals and bearings.*Each gearbox can be delivered after passing the inspection.*The gearbox has low noise, and stable operation and is made of nodular cast iron with strong toughness and long service l......

Send Inquiry

Product Description

Characteristic

*Gears and shafts are quenched and have high surface hardness.

*Use high-quality oil seals and bearings.

*Each gearbox can be delivered after passing the inspection.

*The gearbox has low noise, and stable operation and is made of nodular cast iron with strong toughness and long service life.

This article provides you with information on Bevel and RG series gearboxes. It also covers the different types of lawn mowers available, such as the 100 Series, Pendolare, and RG series. We also discuss some of the benefits of each gearbox, as well as how to decide which one is best for your needs. If you're not sure, read on to find out. Agricultural lawn mowers usually feature a Bevel gearbox. This gearbox lawn mower series features an oil bath gearbox, which helps with better lubrication and faster cooling. Double spring shock absorbers also help in adjusting the weight of the mower.
Bevel gearboxes
Bevel gearboxes for lawn mower for agricultural use are a great choice if you are planning to improve the efficiency of your
lawnmower. The RG series gearboxes are widely used in lawn mowers. These gearboxes are made from high-quality raw materials. They are available in various sizes, designs, and specifications. Here is a look at some of the popular options.
Bevel gearing is highly versatile and has a good load capacity. Because of this, it is commonly used in mechanical transmission systems such as tractors and lawnmowers. Modern harvesters rely on high-performance agricultural gearboxes to deliver superior results. Leading agricultural equipment manufacturers rely on Superior Gearbox Company for their lawn mowers and other agricultural machinery parts. Its versatility, efficiency, and easy operation make it a top choice for agricultural equipment.
RG series gearboxes
Agri Supply is one of the largest manufacturers of lawn mowers and rotary cutters in India. Our knowledgeable staff can answer all your questions regarding lawn mower gearboxes, blades, and other lawn mower parts. We also have a wide range of products for agricultural use. We carry the complete line of lawn mower and rotary cutter parts. For any questions regarding lawn mower parts, contact Agri Supply today!
When choosing a gearbox for your lawn mower, consider the type of transmission that is right for your needs. Hydrostatic
transmissions are the most common for agricultural use. Hydrostatic transmissions allow for greater torque variability, without the "jump" between gears. The hydrostatic lawn mowers have smoother acceleration and a smoother ride. Hydro-Gear also offers larger commercial models, such as the ZT-5400.
Select the right agricultural gearbox for your application Agricultural gear box is the basic part of agricultural equipment, such as harvester, seeder and fertilizer spreader. These equipment are key parts of the farming process and should be able to withstand harsh environmental conditions, heavy loads and high speed. Worn gears will hinder the normal operation of agricultural equipment, which may cause farmers to lose income and increase downtime. The correct transmission for your application Choosing the right agricultural gearbox depends on several factors. These include shaft rotation, speed ratio, design type, load nature, installation location and application environment. Spiral bevel gears are the most commonly used type of agricultural gear boxes because they provide a high level of durability and strength. They also provide quiet operation and reliable and economical speed and power transmission. The bevel gear box has a variety of configurations and designs, so you can find the most suitable for your needs. If you are not sure which transmission is most suitable for your application, our authorized technicians can help you determine the ideal transmission for your needs. Spiral gearboxes are another popular choice for agricultural applications because they provide a durable and compact design that is easy to install and maintain. They are available in bi-directional (one output shaft) and three output shaft versions and can be fitted with cast iron housings to increase durability. High-quality spiral bevel gears are another choice for agricultural equipment because of their high level of durability and strength. These gears are made of tempered steel and have curved teeth, which can improve the contact between gears, reduce vibration and provide more stable operation. Hydraulic transmission is another choice for agricultural equipment, because they are durable and effective choices for driving machines. They can withstand heat, humidity and heavy loads. The hydraulic transmission has a slender housing rotatably mounted on the input shaft and output shaft, and the reduction device is connected with both. The reduction device includes a planetary gear mechanism, which is equipped with an associated hydraulic control device and a continuous meshing gear pair that can be selected by other hydraulic control devices. The gear of the last stage of the gearbox is engaged by a disk-type flexible coupling (usually referred to as 26), which is keyed to the flywheel 22. The drive part of the flexible coupling joint is housed in the compartment 16 and is used to transmit the motion between the input shaft 28 and the output shaft 38 in the rear axle housing 15 (Fig. 2). In order to minimize the possibility of unnecessary transmission during shift operation, this type of gearbox can adopt oil-bath multi-disk friction brake and clutch. The oil bath multi-disk friction brake can be connected to the pulley or pulley 138 (Fig. 4) through the band brake 140, which can be controlled by the small hydraulic cylinder 142. In this way, the hydraulic clutch and brake can be controlled without sacrificing the number of optional reduction ratios available at the final stage of the transmission. This allows the transmission to provide up to twelve forward gears and four reverse gear ratios.

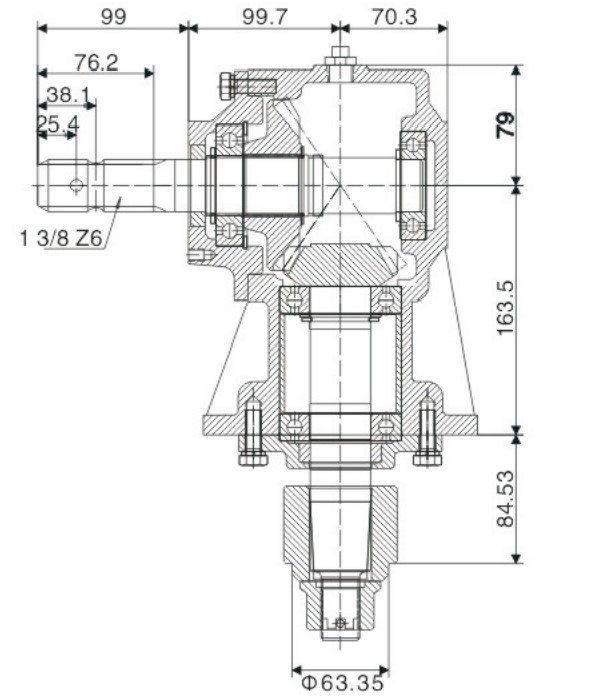

ITEM	EP-RC33
Ratio	1:93 /1:1.69 /1:1.47
Teeth	15/29 / 13/22 / 15/22 .
Module	4.0/5.0/5.08
Power(HP)	30 / 30 / 30
Rated Input	540 rpm
Input/Output Description	1-3/8'' Z6/Optic axis
Weight(N.W)	26 Kg

We Also Supply PTO Shafts
If you also need the PTO axis, click here:https://planetary-gearboxes.en.alibaba.com/productgrouplist-823550845/PTO_Drive_Shaft.html?spm=a2700.shop_pl.98.12

Agricultural Gearbox Production Workshop

Raydafon is a professional agricultural machine gearbox manufacturer.It produces more than 1,000 kinds of products and supports OEM and ODM. Including lawn mower series, rotary tiller series, rice harvester series, grain transportation storage series, etc. Has exported to numerous countries like America, Australia, India,Poland, etc. We work with many well-known brands like John Deere, Bush Hog, etc. Our annual production is 300,000 units, and our turnover in 2021 is USD 28 million. The export ratio is 80%, and the domestic market is 20%.

Hangzhou Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D,manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox,spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
