EP20100.131.00 Rotary Tiller Cultivator Gearbox for Agricultural Made in Vietnam Tariff-free

EP20100.131.00 Rotary Tiller Cultivator Gearbox for AgriculturalAgricultural rotary tiller cultivator gearboxAgricultural rotary tiller The tiller gear box is an integral part of any rotary tiller and is used to drive the rotating shaft of the rotor. This is a common gearbox with many forms, but the......

Send Inquiry

Product Description

EP20100.131.00 Rotary Tiller Cultivator Gearbox for Agricultural

Agricultural rotary tiller cultivator gearbox Agricultural rotary tiller The tiller gear box is an integral part of any rotary tiller and is used to drive the rotating shaft of the rotor. This is a common gearbox with many forms, but they all have the same design and function. The rotary tiller works by rotating the rake teeth on the rotor shaft to excavate and break the soil. This allows the operator to turn the garden or field into a new growth space, making it easier for them to sow. They can also be used to crush large pieces of hard soil or clay. This process also helps to inflate the ground, making it easier for water and air to enter the soil. The rotary tiller can be self-propelled, or can be towed behind a two-wheel tractor or a four-wheel tractor. They are most commonly used on farms, especially in developing countries. In addition to the main purpose of preparing soil for sowing, the rotary tiller can also install a series of different accessories for other work in the field. These can include tooth removal, middle baffle, snow/soil blade, etc. These rotary tillers are available in various sizes and can be used for small, medium and large tractors. They are particularly useful when trying to remove heavy soil, otherwise it is difficult to move with traditional ploughs. When selecting a rotary tiller, make sure that its working width is at least as wide as the rear tire base of the tractor, so that the machine can cover the whole yard or garden without leaving any uncultivated area. In addition, make sure that the teeth overlap each time you pass. This helps to prevent the soil from flying out and polluting the surrounding area, which may be dangerous in areas with poor drainage or sandy soil. The tillage height can also be adjusted to make it possible to cultivate a larger area under the same power input. Soil tillage is critical to the success of any crop operation. It not only maintains the integrity of soil, but also improves the fertility of crops. Active soil tillage processes are generally considered to be the most important part of any agricultural operation. The purpose of tillage is to remove the topsoil and leave a smooth surface for planting. In fact, cultivators can mix seven times as much soil as ploughs (Ozmerzi, 2002). Some rotary tillers can even be used to crush rocks or soil exposed in farmland. This equipment is very suitable for reclamation and is a good way to use non-productive land and create new space for future development. It is very easy to use a rotary tiller, but it may be difficult to obtain proper depth and turnover. The best technology is to work in a cycle and pass through the soil many times. This will ensure that the soil is about 4 to 6 inches deep and that no large lumps are left.

ITEM	EP20100.131.00 Rotary Tiller Gearbox
Ratio	1.31:1
Teeth	16/21
Module	7.0
Power(HP)	100
Rated Input	600rpm

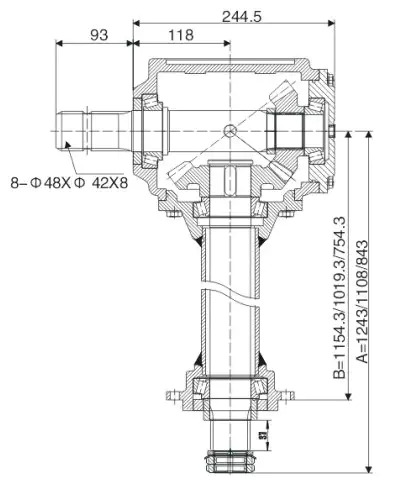

Input/Output Description	8-φ 48x φ 42x8
Weight(N.W)	58KG

Scaling new heights in the agricultural industry, we are working towards empowering our farmers with the latest agricultural implement and equipment. Ensuring that our customers are benefited from our products, we offer optimum quality machinery that is durable and can be easily handled. These are scientifically designed by the manufacturers using the utmost quality factor inputs and advanced technology as per the international quality standards.

Rotary tiller gearbox is an adopted middle gear transmission system, mounted with a tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy fields. It can reduce the time, laboring, cost, etc. during operation
1. Transmission: Gear driven.
2. Graphite gearbox is made of cast iron. Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. Easier and more reliable.
5. Side protection plates are added to the rear deflection. This device prevents the soil from flying out.
6.The tilling height can be adjustable.
7. The structure is firm and stable due to the heavyweight.

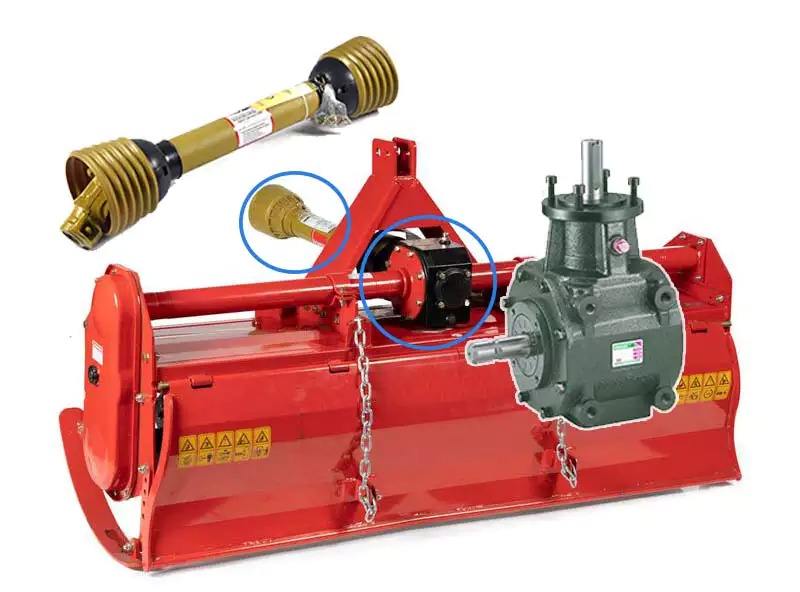

We Also Supply PTO Shafts

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop
Hangzhou Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D,manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox,spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
