Machine agricole herse
Company information :
:
:.
Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.

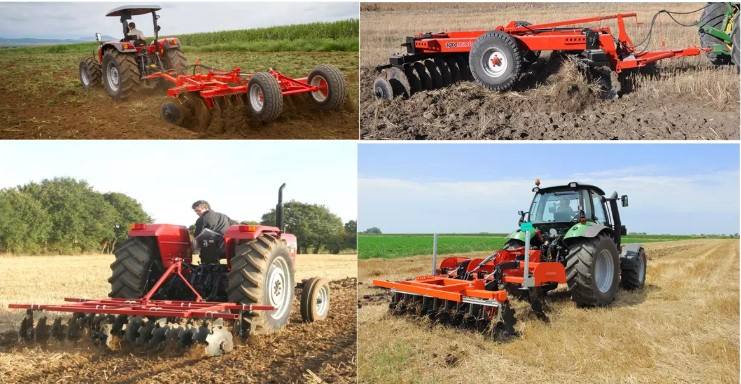

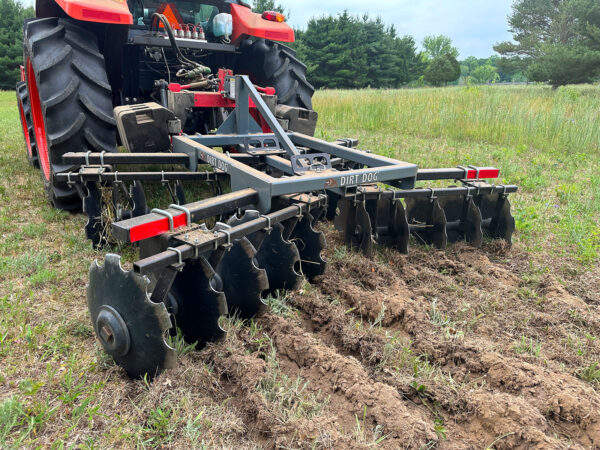

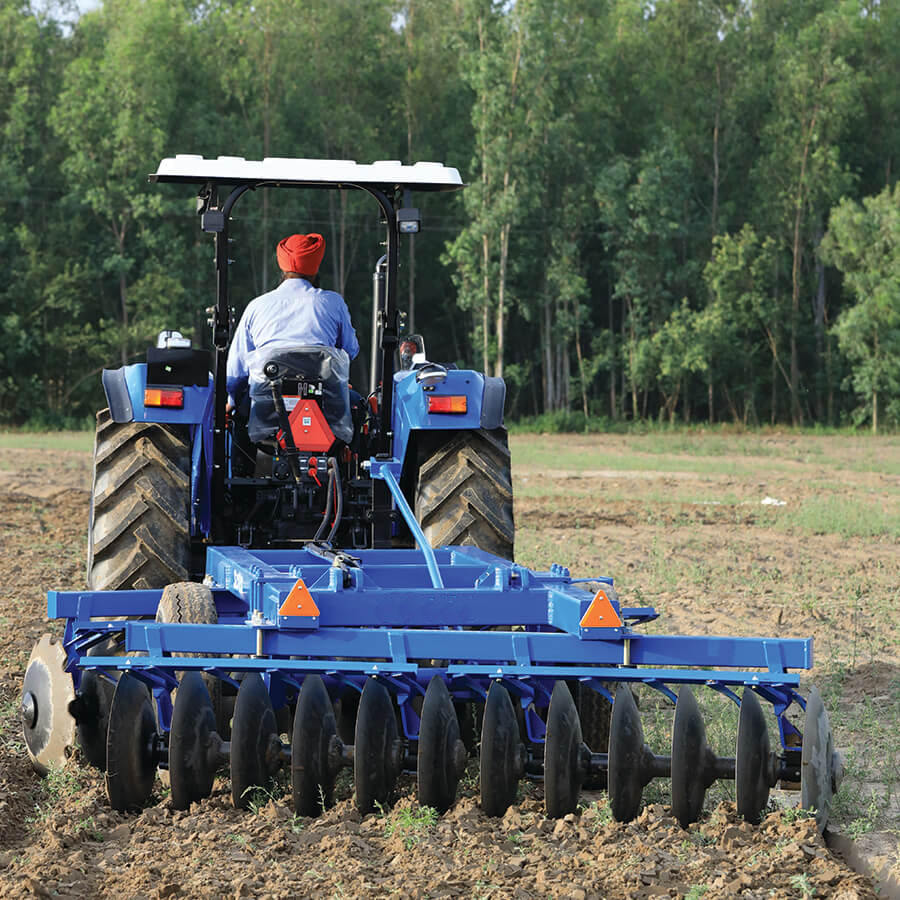

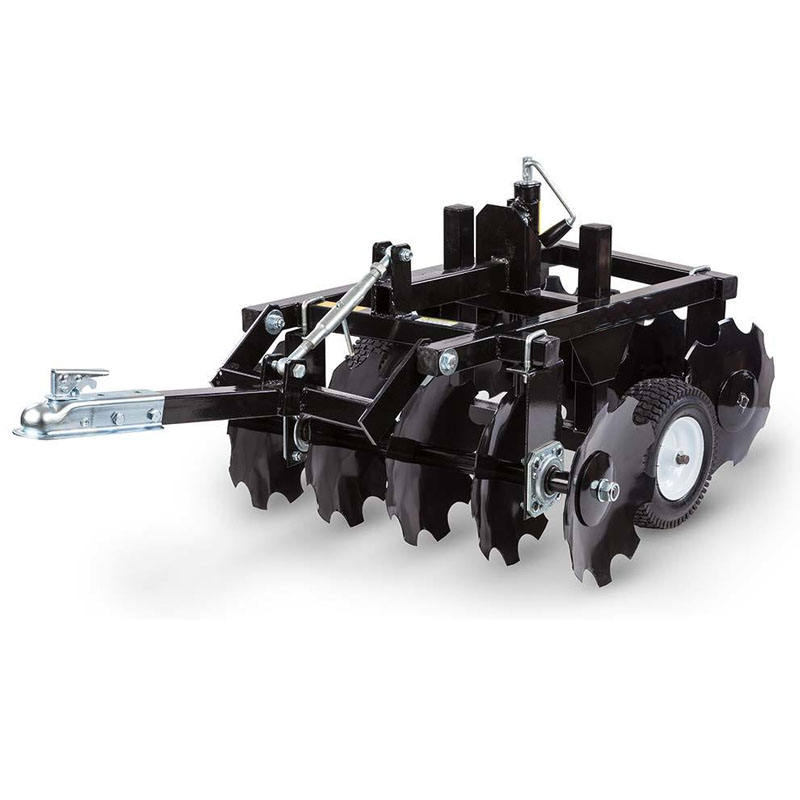

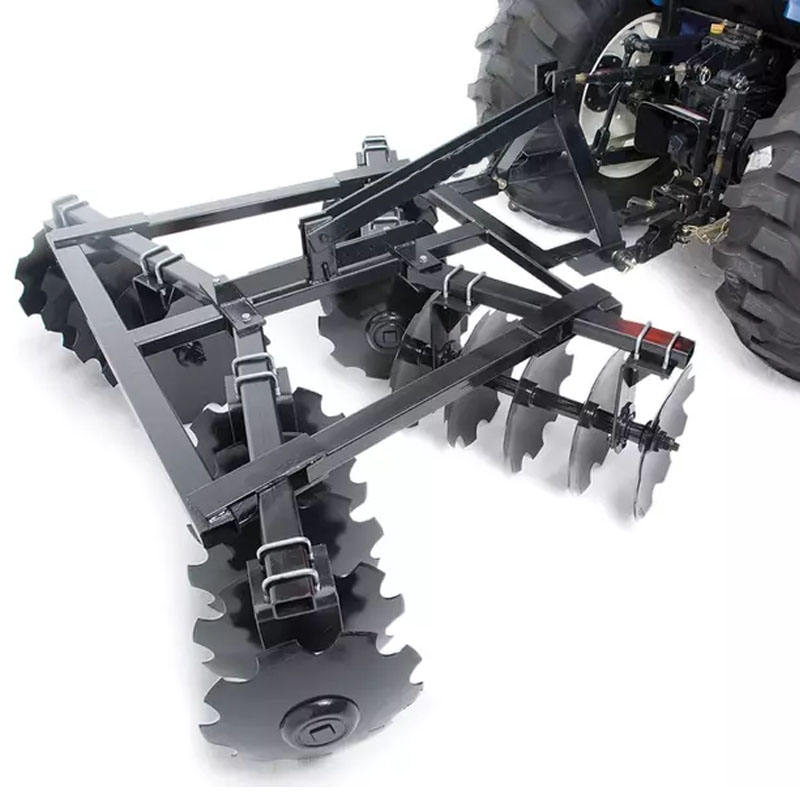

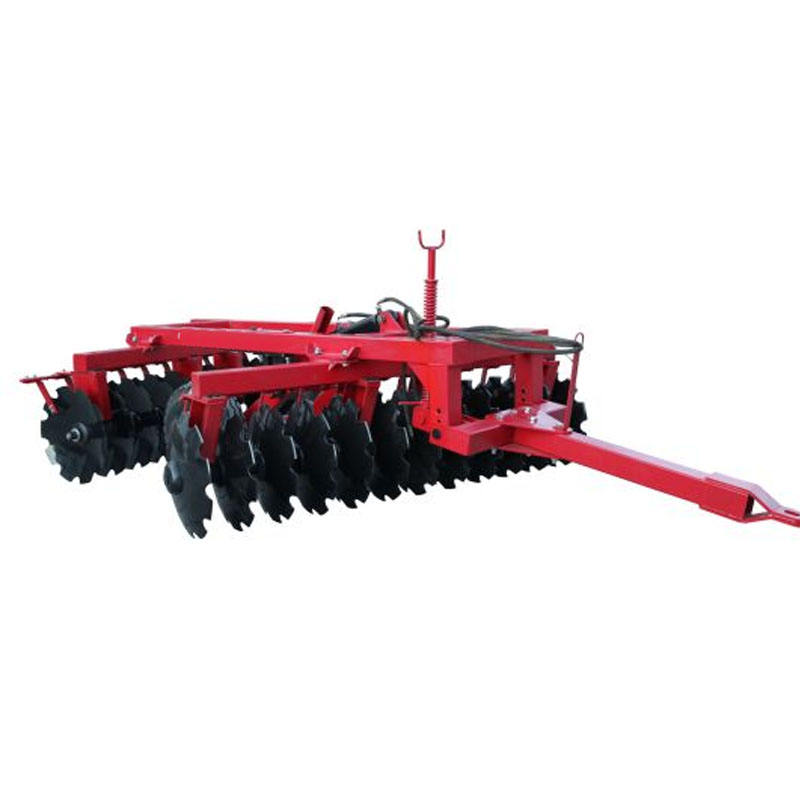

Disc harrow description :
This series of light-duty harrow is mainly suitable for crushing the clods after tillage, leveling the field before seeding, loosening the soil, mixing the soil and fertilizer, and cleaning the stubbles in light soil. It has features on reasonable construction, firmness to stand, long-lasting operation, easily handling and maintenance, strong ability to crush clod, and smooth field after tillage, etc.
Disc harrow technology specification:
model | unit | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
Working width | m | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.3 |
Working depth | mm | 120 | |||||
Q’ty of disc |
| 12 | 14 | 16 | 18 | 20 | 24 |
Disc diameter | mm | 460 | 460 | 460 | 460 | 460 | 460 |
Total weight | kg | 200 | 220 | 240 | 260 | 310 | 360 |
matched power | hp | 12 | 15 | 25 | 30~35 | 35~45 | 50 |
Linkage |
| Standard three-point mounted | |||||
Package is as following :
Light duty disc harrow package is iron case. We hold 10sets in one iron case.
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.

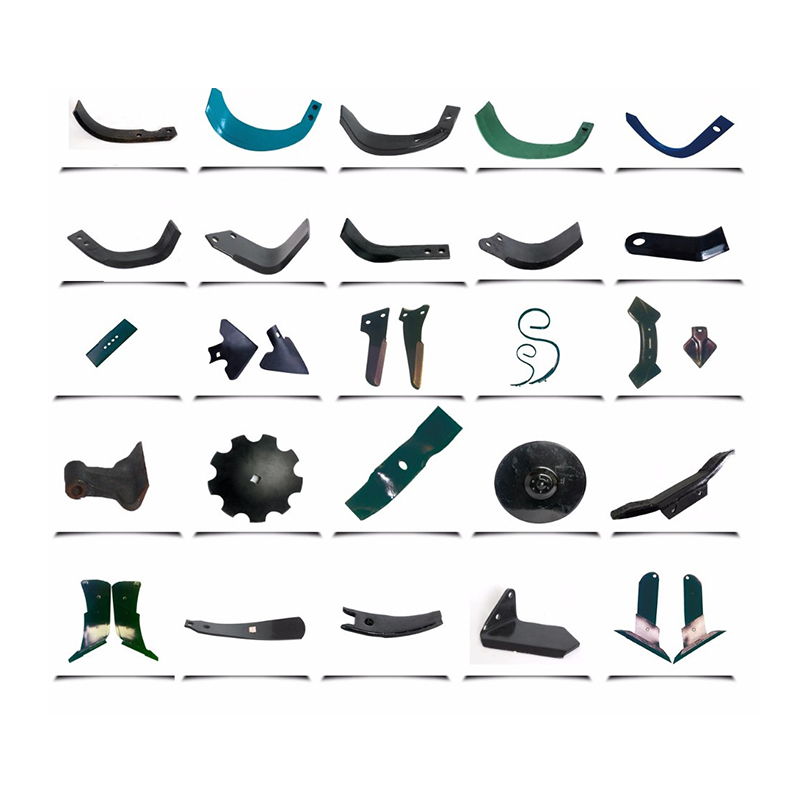

2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
