Product Information Product Information WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical eq......
WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.
FEATURES
--Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment. --Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements. --The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature. --Higher requirements for lubrication and cooling. --Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.
For more models, please click here!
Applicable Industries
Energy & Mining
Gearing Arrangement
Worm speed reducer
Output Torque
19-2745N.M
Input Speed
1400RPM
Output Speed
14-186RPM
Place of Origin
Vietnam
Vietnam
Zhejiang
Brand Name
EPG
Product name
Speed Reducer
Ratio
1:10,15,20,25,30,40,50,60
Weight
4-360 KG

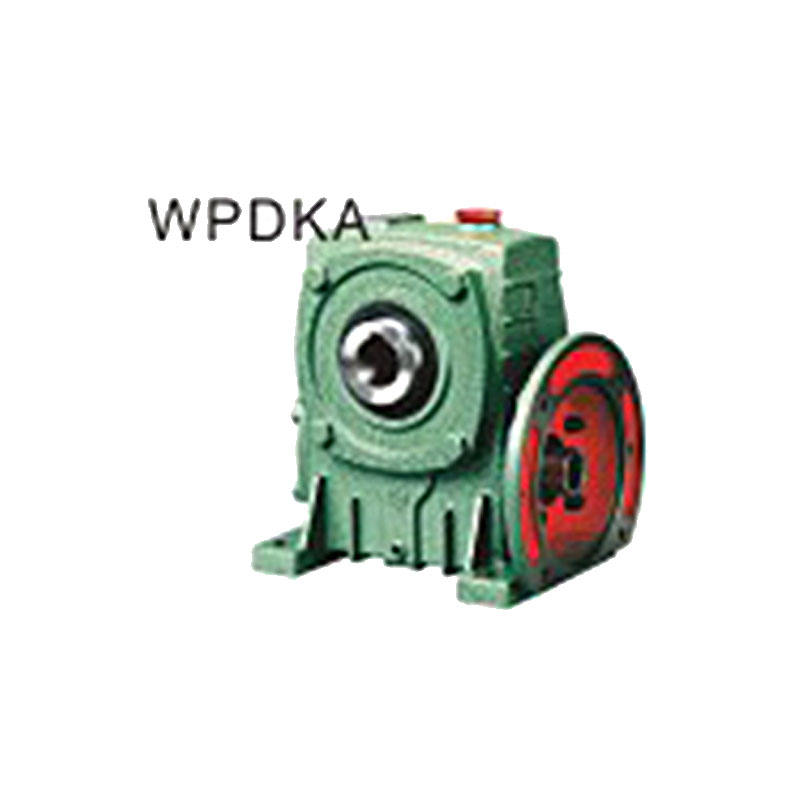

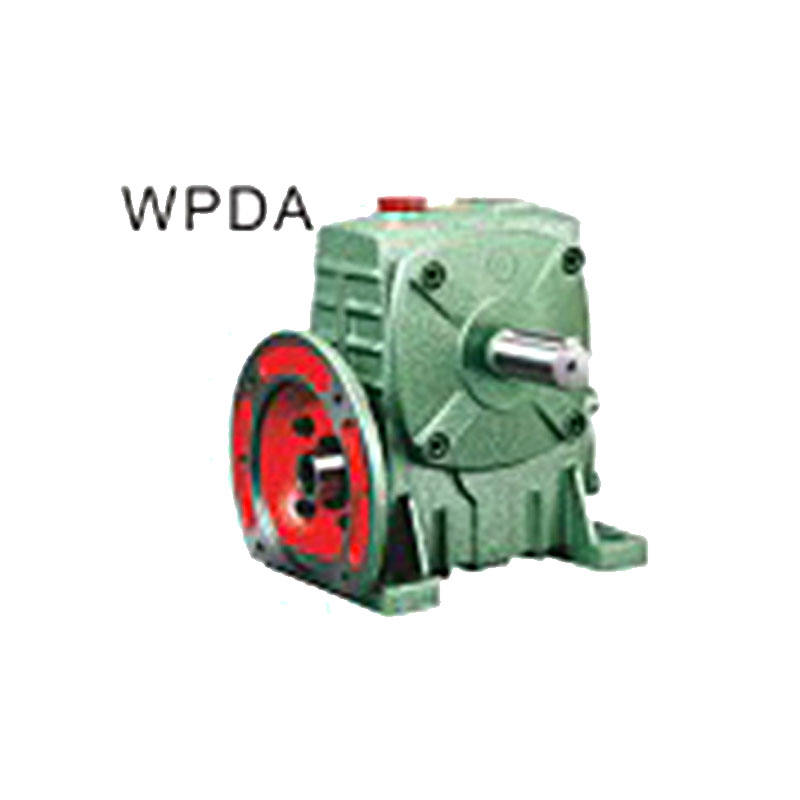

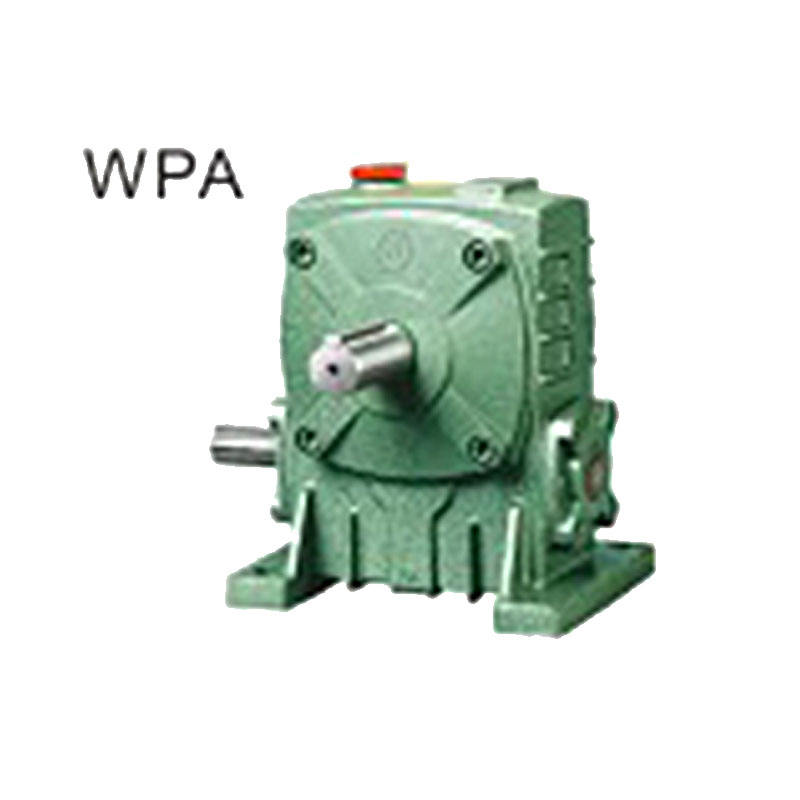

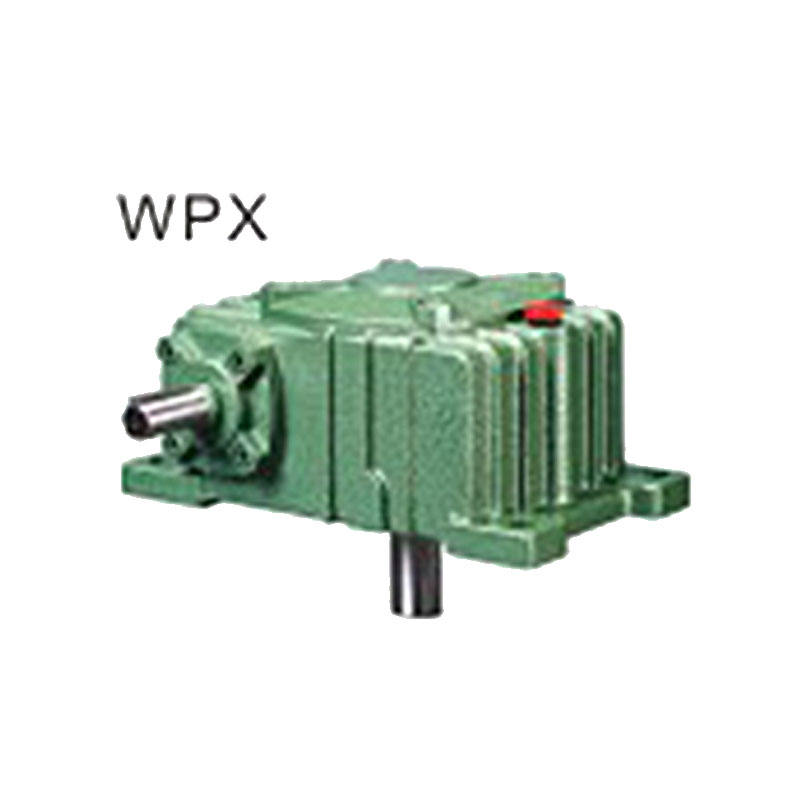

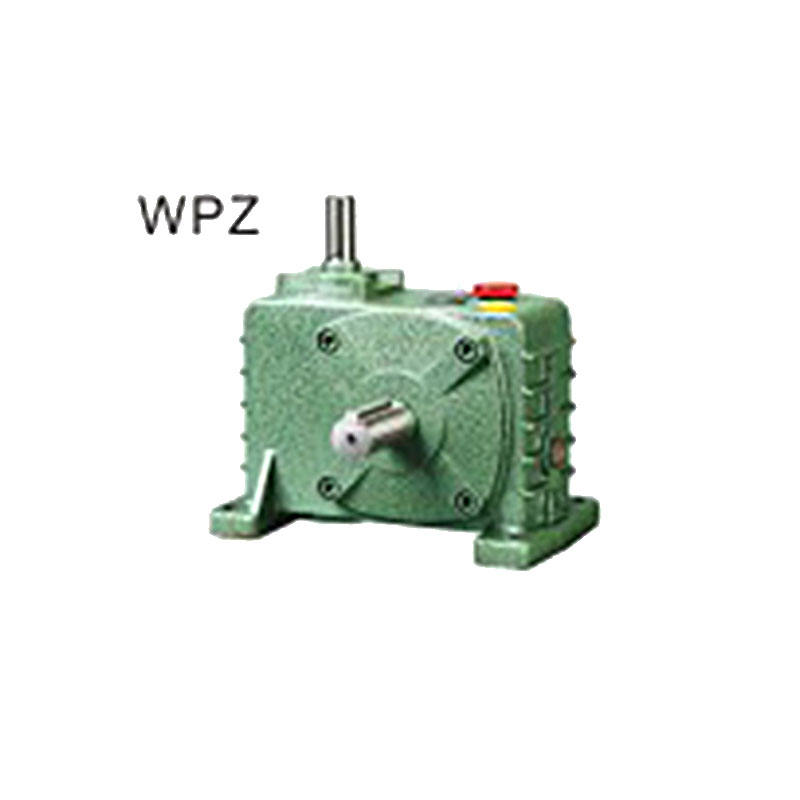

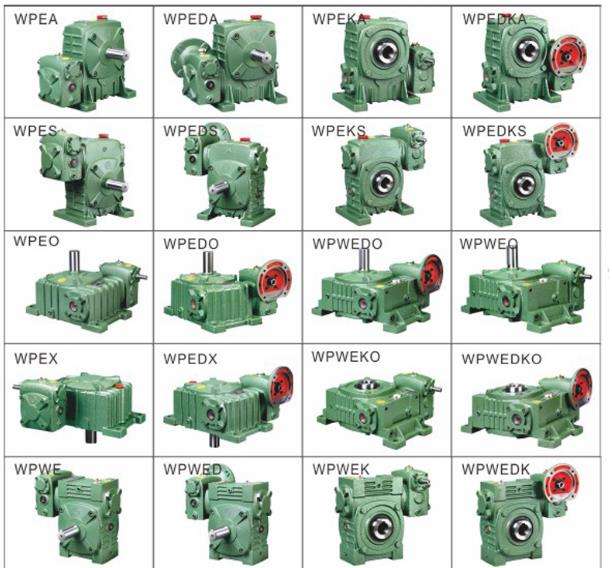

Product Display
