GAP Type Flexible Drum Gear Coupling With Brake Disc for Large Axis Offset Made in Vietnam

GAP Type Drum Gear Coupling With brake disc, single drumtype gearMaximum torque: 112,000 N.mMaximum shaft hole: 220mmMaximum Diameter of brake disc: 1,000 mmGAP type with brake disc drum gear coupling,the inner toothring is wider,can compensate fo the larger axis offset, suitable for matching with d......

Send Inquiry

Product Description

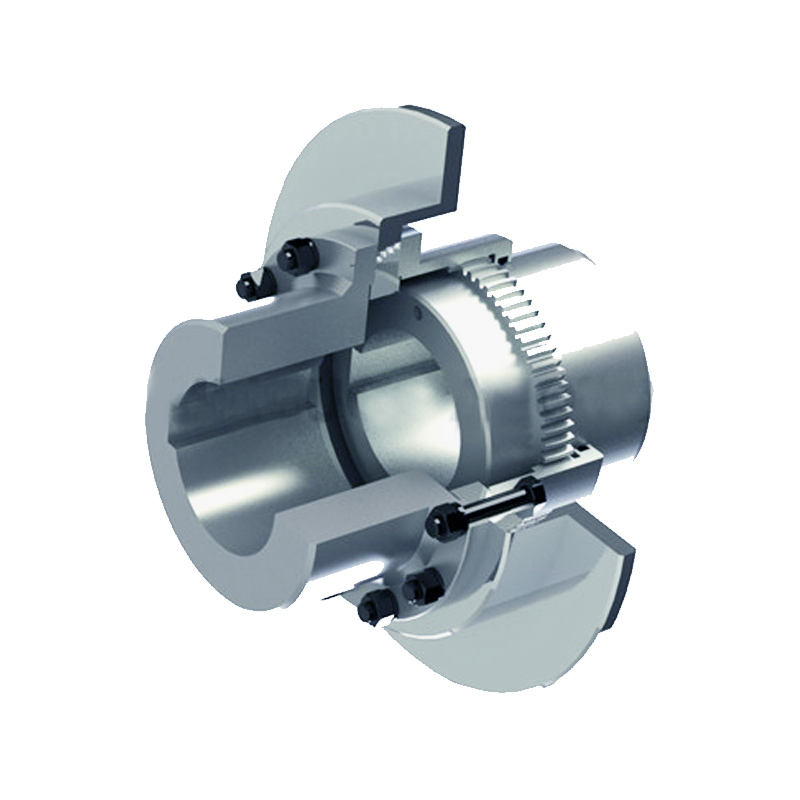

GAP Type Drum Gear Coupling

With brake disc, single drumtype gear

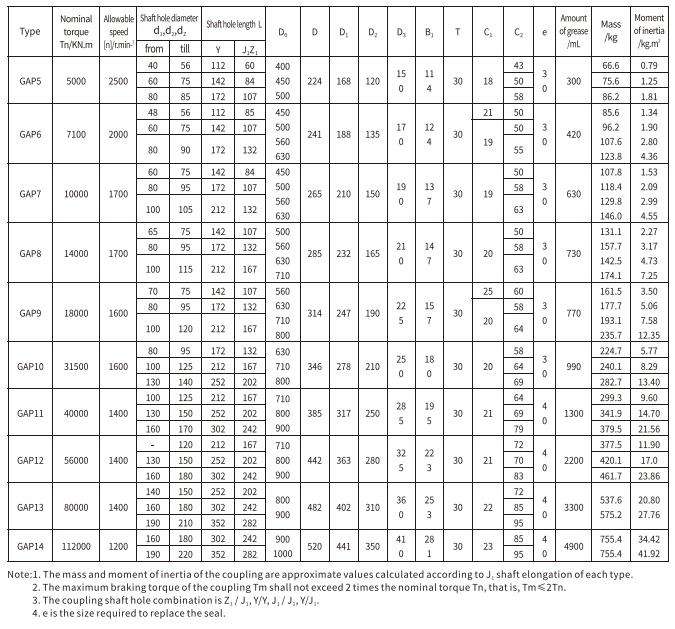

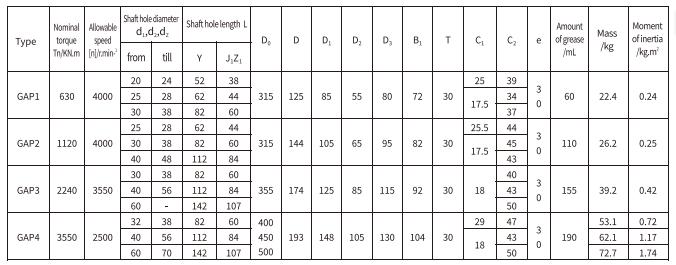

Maximum torque: 112,000 N.m Maximum shaft hole: 220mm Maximum Diameter of brake disc: 1,000 mm

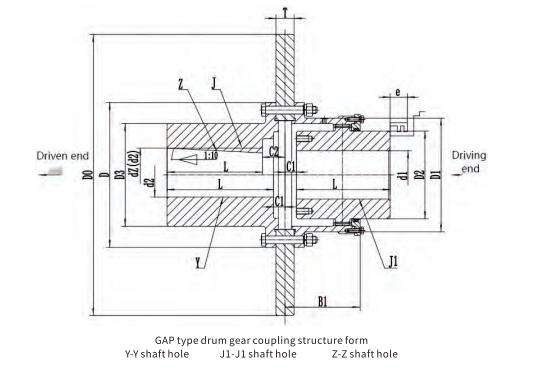

GAP type with brake disc drum gear coupling,the inner toothring is wider,can compensate fo the larger axis offset, suitable for matching with disc brake occasions, allowing positive and reverse direction rotation.Under normal circumstances, the GAP type coupling should be GBZ and GAZ type coupling pair, the outer tooth sleeveend is connected with the intermediate shaft, and the two ends of the half coupling are respectively connected with theworking machine shaft and the power machine shaft, Because the brake disc is connected with the half coupling, the weightof the brake disc and the working brake load and vibration are fully borne by the half coupling, which improves the meshingperformance of the drum teeth during braking, so it is suitable for heavy-duty occasions, and the nominal torque is 630.112000N-m.

Application

GB Type Drum Gear Coupling is widely used in multiple industries and is particularly suitable for the following application scenarios: ---Metallurgical industry: such as rolling mills, continuous casting machines, etc., to ensure stable and reliable transmission performance. ---Mining machinery, such as crushers, conveyors, etc., are suitable for harsh working environments. ---The power industry, such as generators, fans, etc., provides efficient energy transfer. ---Chemical industry: such as reaction vessels, pump equipment, etc., to ensure safe and reliable operation. ---Other heavy machinery, such as cranes, port equipment, etc., are suitable for various occasions that require high-precision transmission.
