High Precision 15-350mm Pipe and Beveling zero Tailings Fiber Laser Cutting Machine for Metal Tube Tariff-free Made in Vietnam

Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and s......

Send Inquiry

Product Description

Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and stable

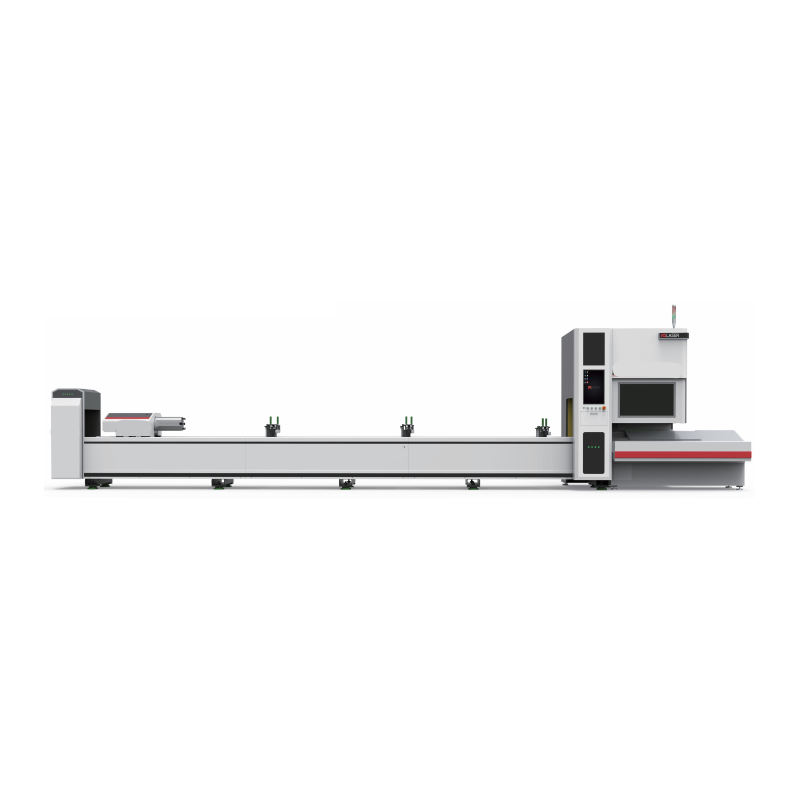

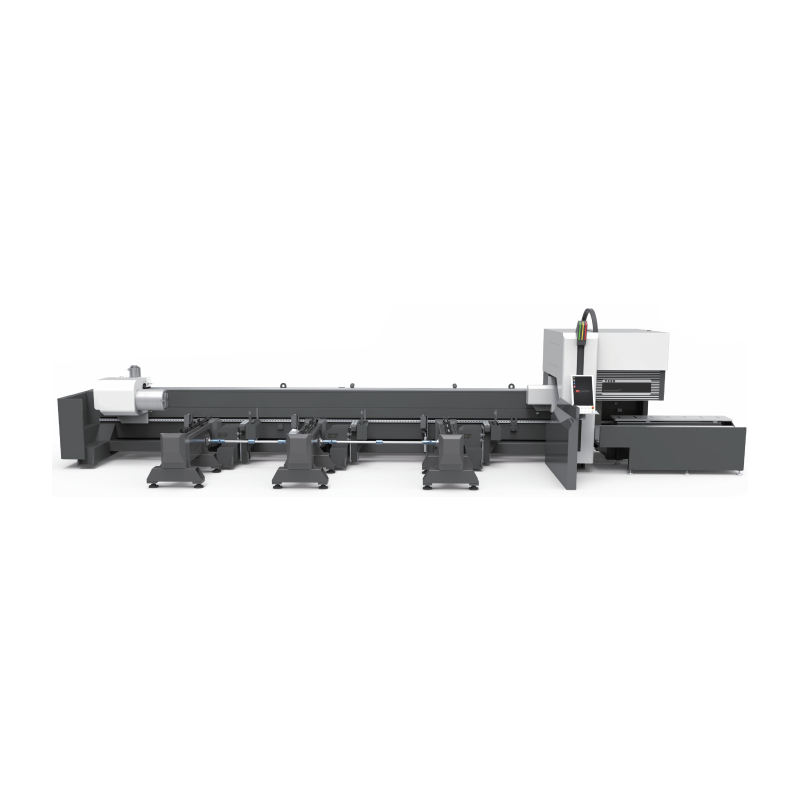

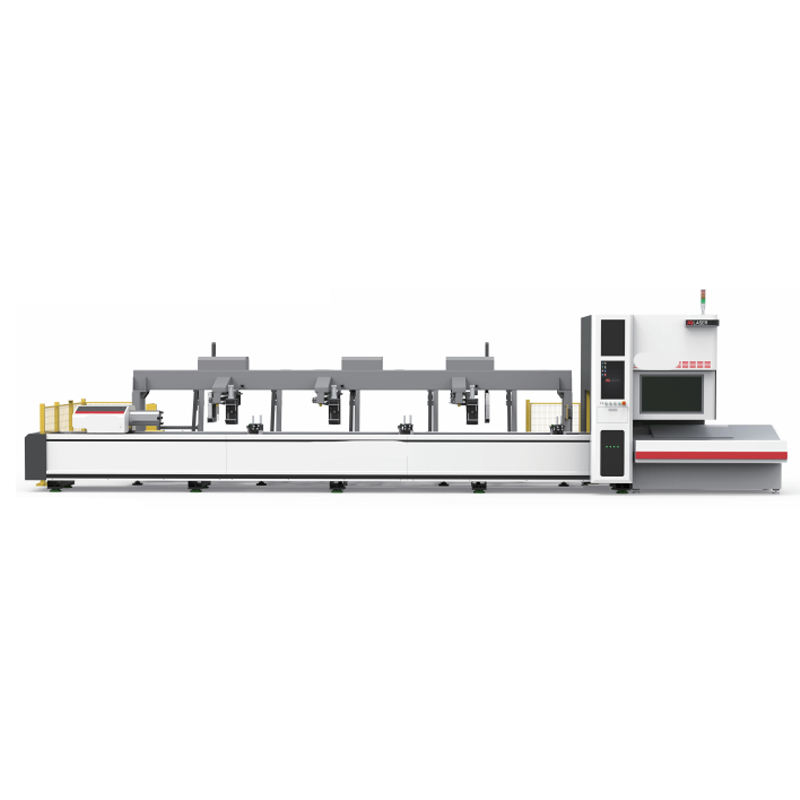

Product Name	Three Chuck Laser Pipe Cutting Machine
Maximum Cut Pipe Length	Cutting Length From 7000 To 12000 mm
Cut Pipe Diameter	15~350mm (Circle Of Workpiece)
Pipe Thickness	Depends On The Power
Cutting Accuracy	±0.1mm
X, Y axis positioning accuracy	±0.05/1000mm
X, Y axis repeat positioning accuracy	±0.03/1000mm
Acceleration	0.8G m/s²
Maximum Operating Speed	60 m/min
Maximum Weight For Each Tube	500Kg
Chuck Rated Speed	60rpm
Mainframe Shape	About 22000×6000×2500mm
Laser power	8000W Or Customized As Required

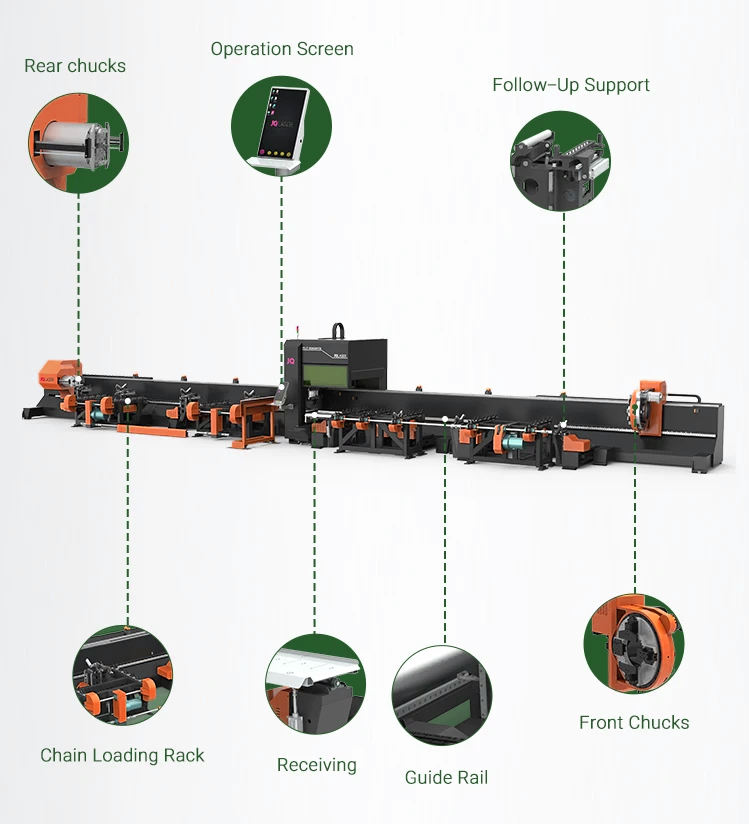

Three Chunks

Three chucks can be reversed for cutting, and are applied to a variety of clamping and cutting modes can be used to achieve zero-tail cutting of tubes, improve tube utilization, and save costs.

Intelligent CNC Chuck

It can realize automatic centering and precise clamping of the pipe, and the front and rear middle card design ensures that the pipe is clamped without deformation.

Bus control system

The rich process database is easy to operate and powerful, and can be deeply developed for different customer needs.

CHOOSE YOUR LASERTUBE

Make Your Choice

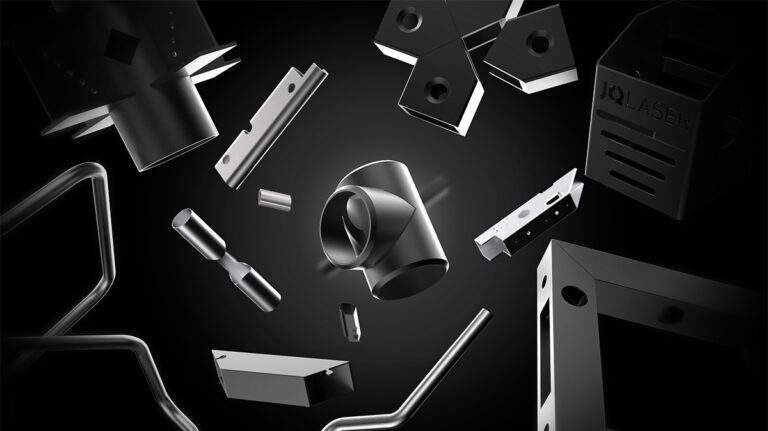

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.

Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
