Product Description

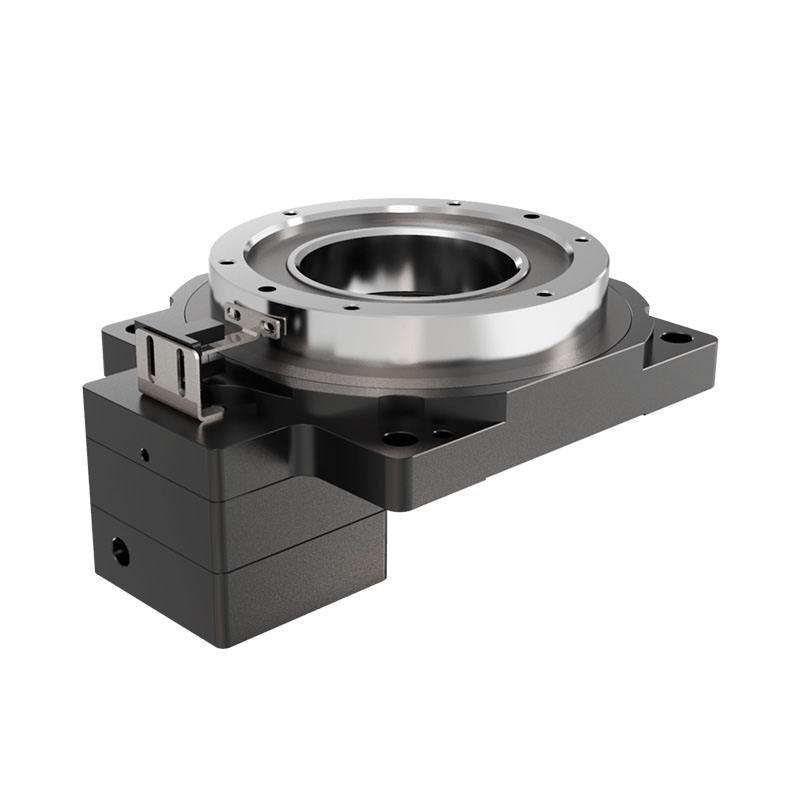

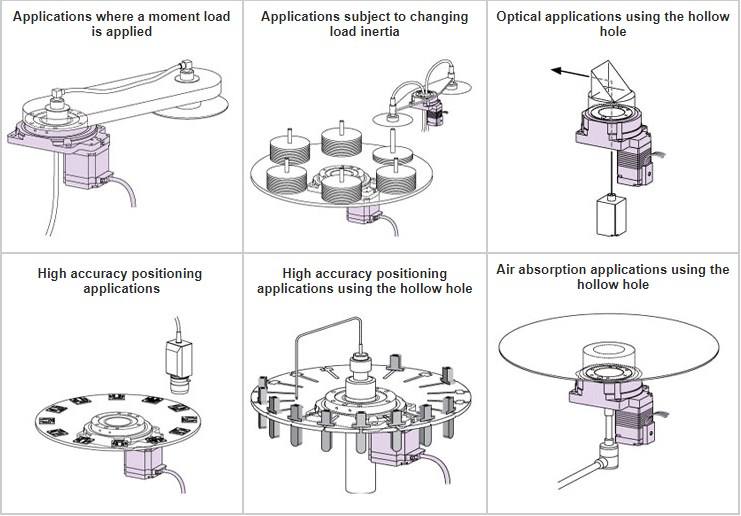

The TH450 Hollow Rotary Actor is compatible with multiple driving sources, such as electric servo motors, hydraulic motors, etc., and can be customized according to customer needs to meet specific application requirements in different industries, such as wind power generation, heavy machinery, aerospace, robotics technology, solar tracking systems, and other application scenarios that require precise multi degree of freedom rotational motion. By integrating the latest control technology and feedback system, TH280 can easily achieve precise angle positioning and dynamic response control.

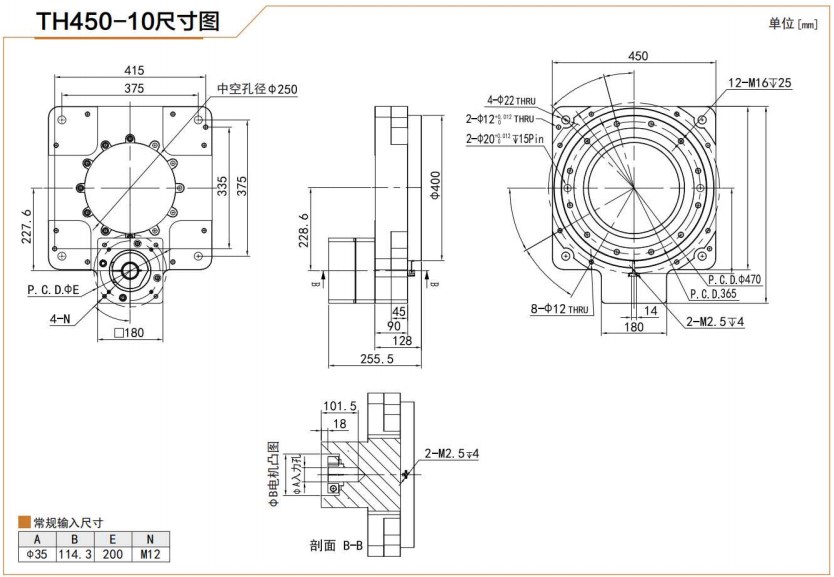

Specifications	TH450-10
Reduction ratio	1:10
Allowable torque	456Nm
Adapted motor	2KW-7.5KW AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	380230*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	767N
Allowable axial load	15000N
Positioning accuracy	≤1arcmin
Repeated positioning accuracy	20arcsec
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	81kg

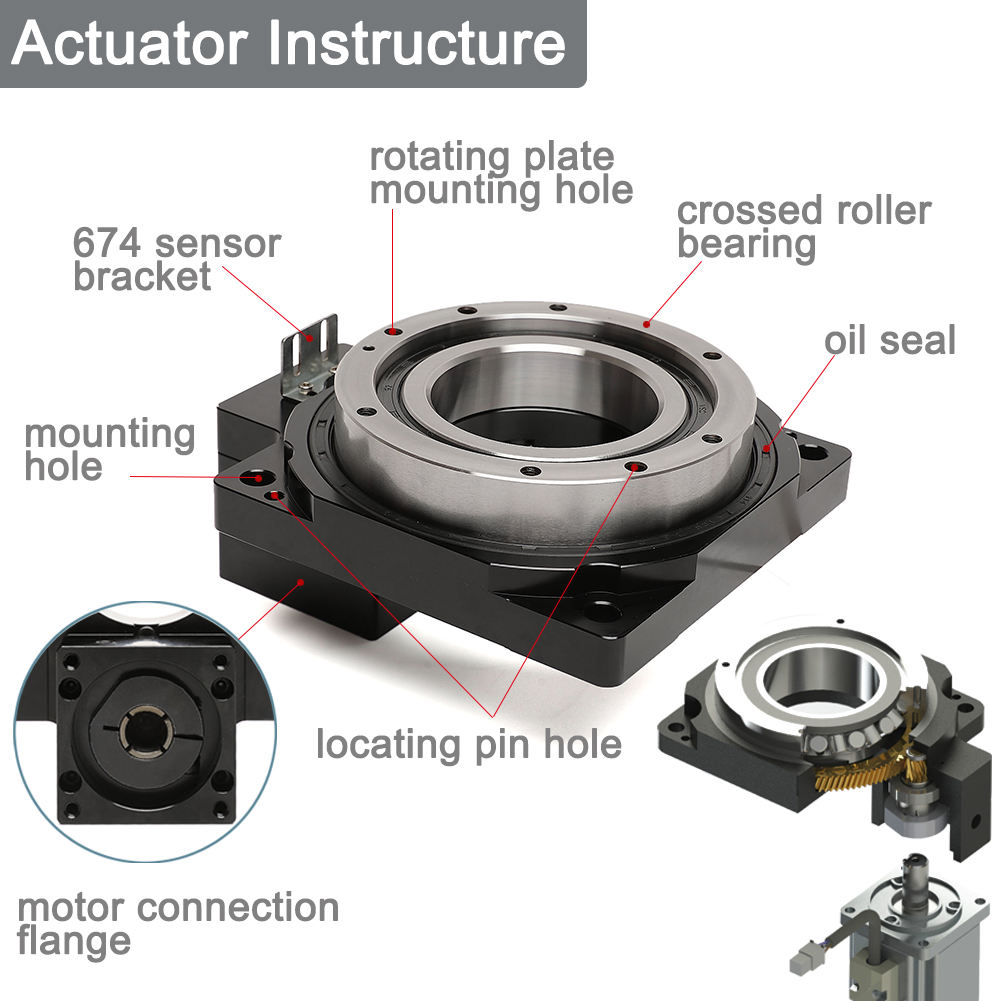

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
