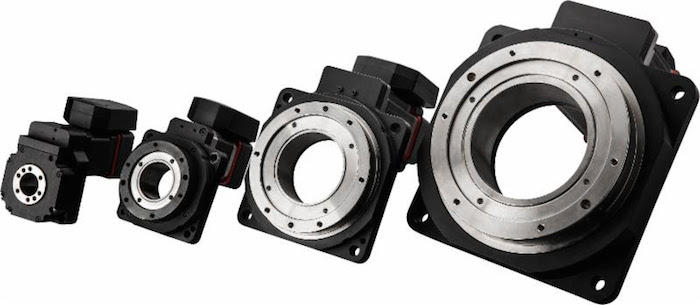

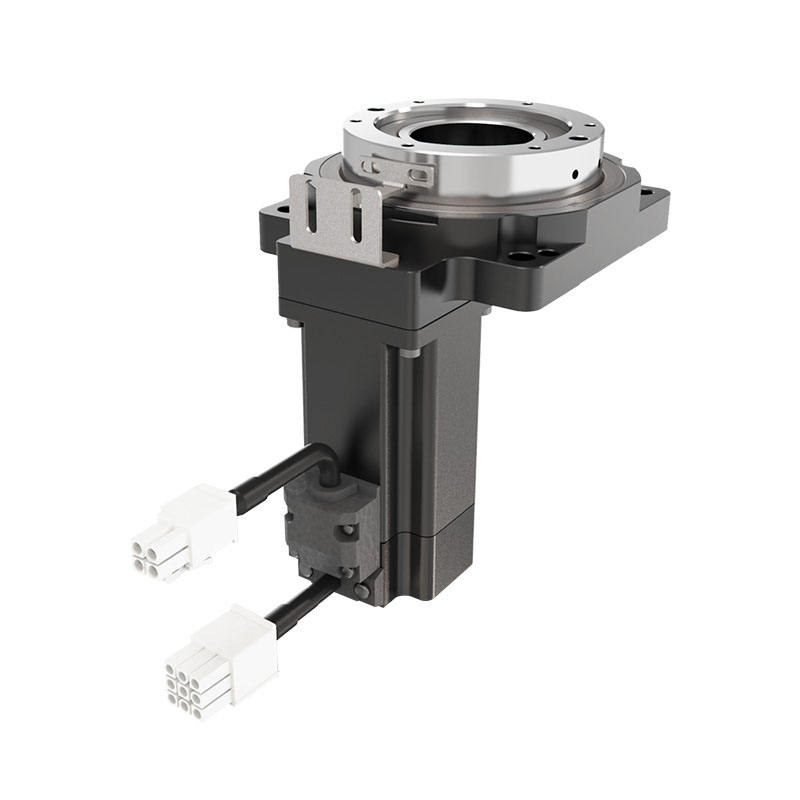

THS130 Hollow Rotary Actuator

Defined by its ingeniously designed hollow rotating shaft, the Hollow Rotary Actuator is an integral part of modern manufacturing
and automation solutions. It enables integrated cable management and delivers precise, torque-rich rotation under various
environmental and operational conditions.

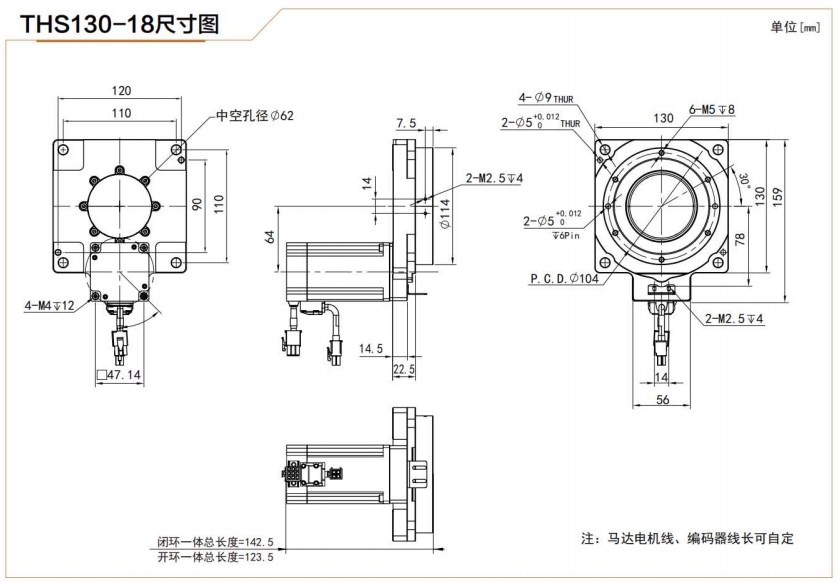

Specifications	THS130-18
Reduction ratio	18
Positioning accuracy	0.5arcmin
Allowable torque	5Nm
Permissible speed	200r/min
Repetitive positioning accuracy	5arcsec
Allowable inertia load	130N
Allowable axial load	2000Nm
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	0.01mm
Rotating platform bearings	Cross Roller Bearing
Protection and other records	IP40
Moment of inertia	2500*0.000001kg.m²
Weight	2.8kg
Appearance dimensions	57mm
Phase number	2PHASES
Rated current	5A/PHASES
Coil impedance	0.45±10%OHM/PHASE
Coil impedance	1.2MH
Maintain torque	2.2kg.cm
Moment of inertia	480g.cm
Motor length	Open loop: 81mm Closed loop: 101mm
Encoder resolution	/
Insulation level	B
Step angle	1.8°
Lead	1000

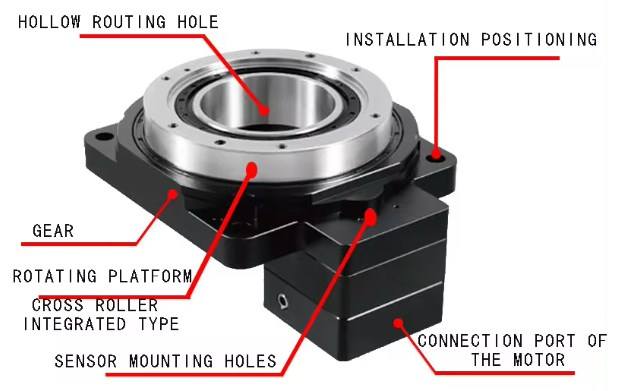

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
