Product Description

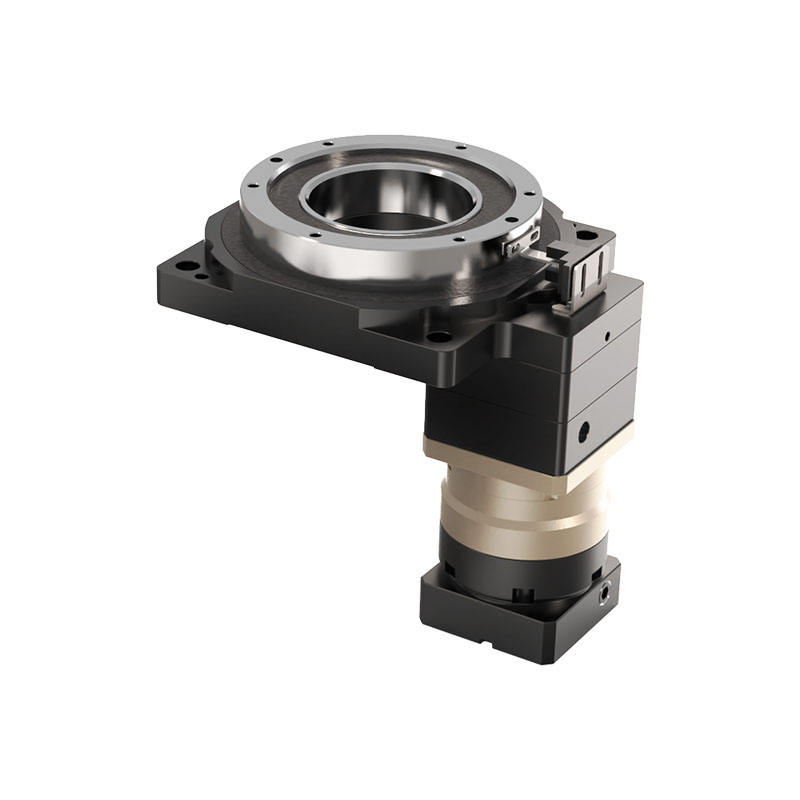

The THG130 Hollow Rotary Actor has good compatibility and can be flexibly matched with various driving sources (such as servo motors, hydraulic motors, etc.). It can also customize input/output interfaces and electrical and mechanical parameters according to customer needs. Widely used in industrial automation, robotics technology, aerospace, medical equipment, heavy machinery, and other fields that require precision rotational motion control.

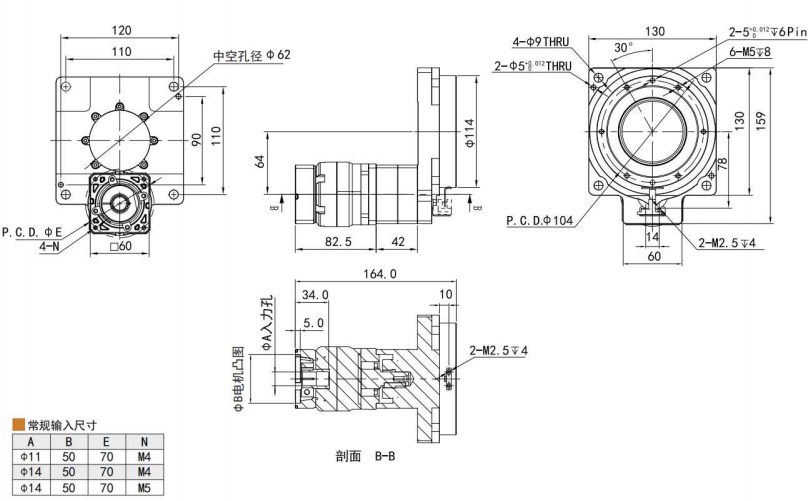

Specifications	THG130(i)
Reduction ratio	30/40/50/70/80/100
Rated torque	55/50/60/50/45/40Nm
Adapted motor	200/400W AC Servo motor
Emergency stop torque	3x rated torque
Rated input speed	5000rpm
Maximum input speed	10000rpm
Return gap	≤1arcmin
Torsional rigidity	7Mn/arcmin
Permissible radial force	1530N
Permissible axial force	765N
Service life	2000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	97%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤58dB(A)
Moment of inertia	0.13kg.cm²
Weight	3.8kg

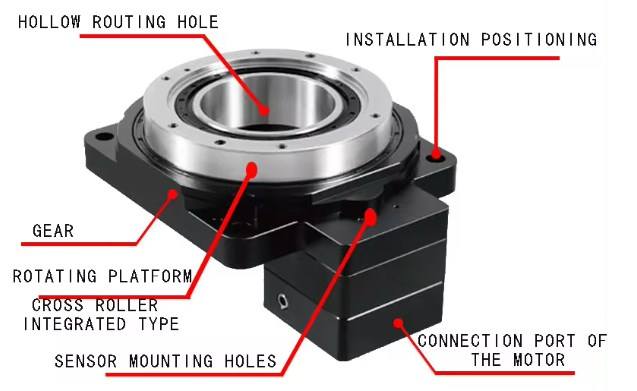

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
