Hl Type Muff Flange Bush Flexible Elastic Sleeve Oldham Steel Disc Clamp Shaft Rigid Fcl Pin Coupling Made in Vietnam

The characteristics of FCL Flexible Pin & Bush Coupling(1)Coupling is simple in structure, convenient installation, easy replacement, small size, light weight.(2)If the installation adjustment can keep two relative displacement within the prescribed limits, then coupling will have satisfactory p......

Send Inquiry

Product Description

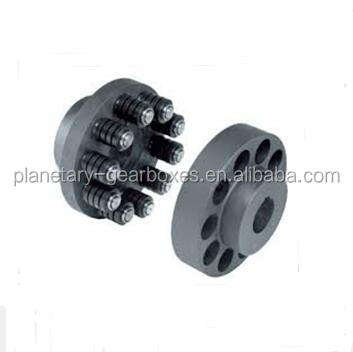

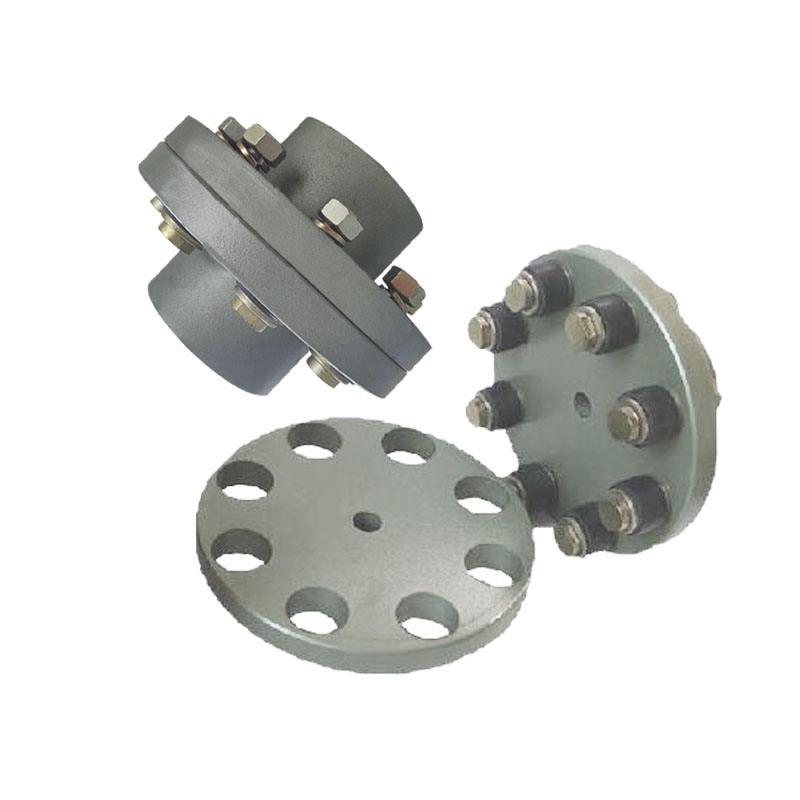

The characteristics of FCL Flexible Pin & Bush Coupling

(1)Coupling is simple in structure, convenient installation, easy replacement, small size, light weight.

(2)If the installation adjustment can keep two relative displacement within the prescribed limits, then coupling will have satisfactory performance and long service life.

(3) It can be widely applied to all kinds of medium and small power transmission shafts, such as reducer, crane, compressor, conveyor, textile machine, hoist and ball mill, which are not loaded by motors.

(4)The allowable relative displacement of the elastic sleeve pin couplings:
Radial displacement: 0.2~0.6mm angular displacement: 0 ° 30 '~1° 30'

Standard	Standard products
Material	Cast Iron
color	Oil Color

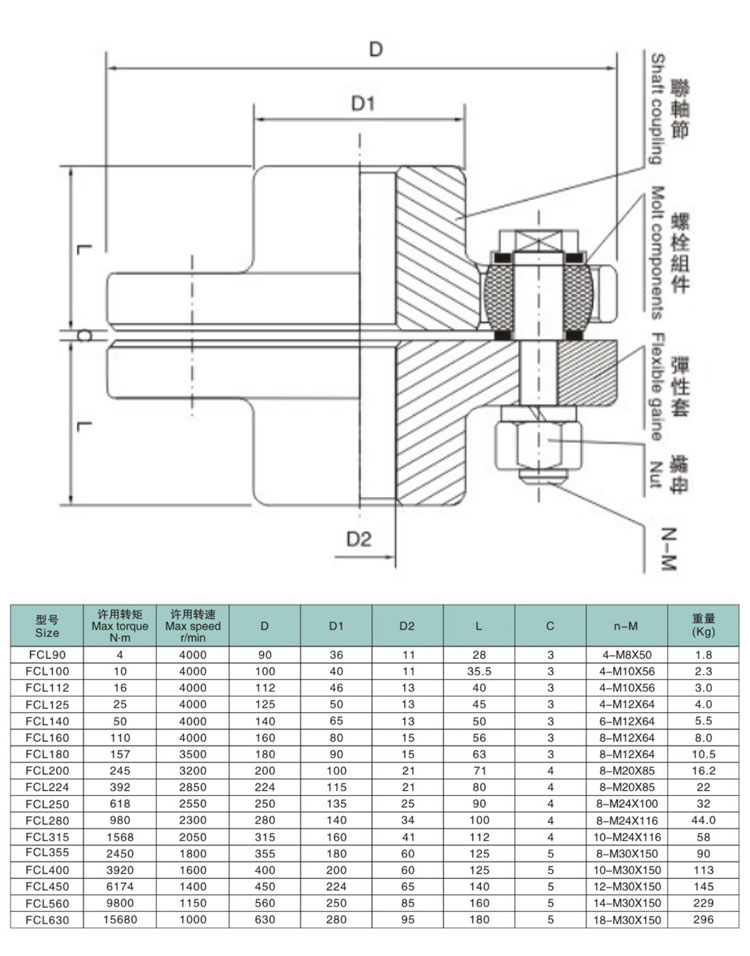

Model Number	FCL90~FCL630
Bore	poilt bore, finished bore,
Keyway	Standard Keyway

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
