Hot Selling Tariff-free SQ..RS Series Spherical Plain Ball Joint Rod End Bearing SQ5RS SQ22RS Made in Vietnam

SQ..RS Rod End Bearing--Ball joint housing with right or left hand thread--Ball joint housing made of zinc base alloy--With rubber dust seal * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required * Features: The rod end bearing i......

Send Inquiry

Product Description

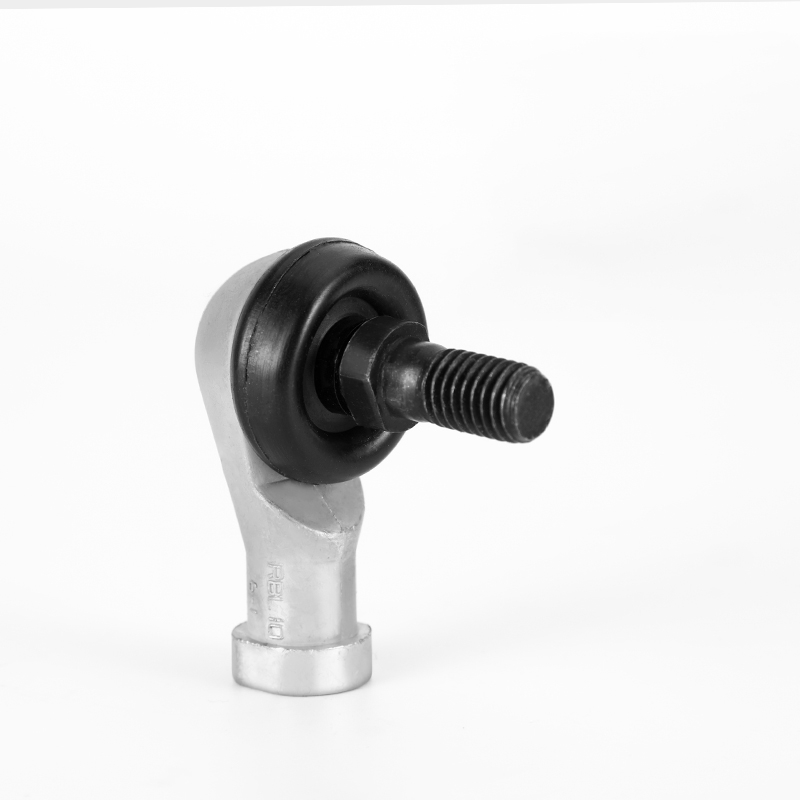

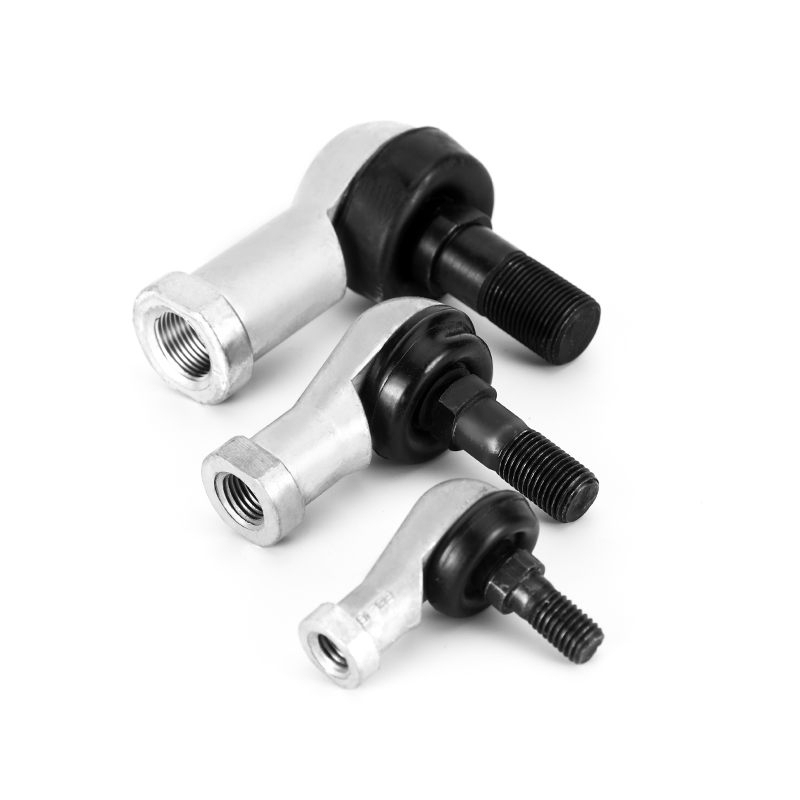

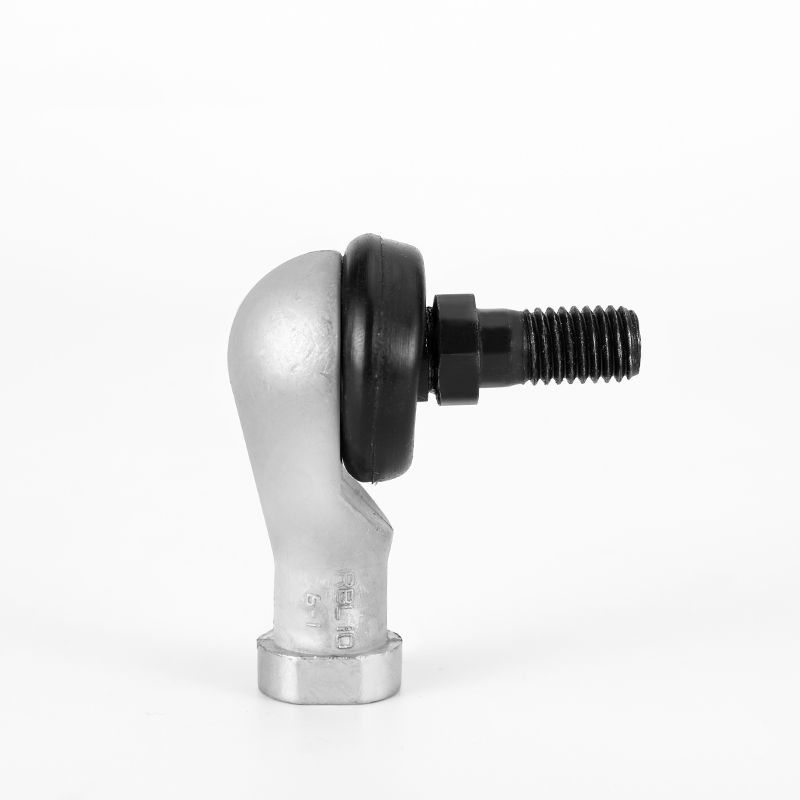

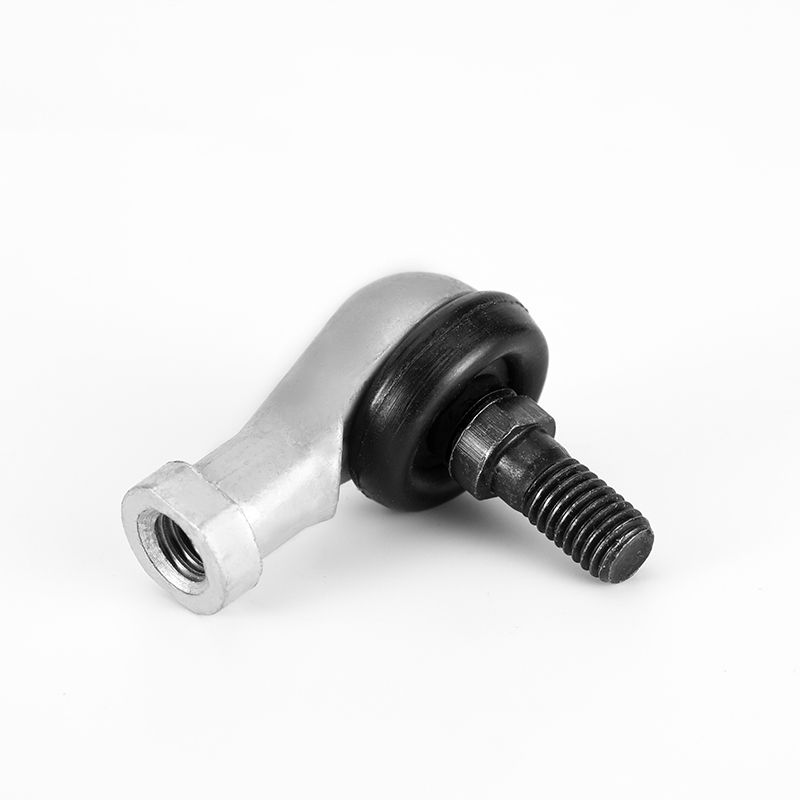

SQ..RS Rod End Bearing

--Ball joint housing with right or left hand thread

--Ball joint housing made of zinc base alloy

--With rubber dust seal

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

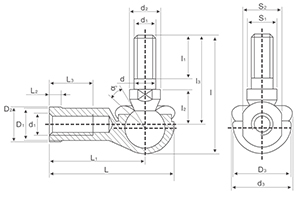

Part Number	Dimensions(mm)						Load ratings(KN)	Weight(g)
	d	d3	B	α ≈
SQ 5RS	5	M5×0.8	9	25	2.2	26
SQ 6RS	6	M6×1.0	10	25	3.5	39
SQ 8RS	8	M8×1.25	12	25	6.6	68
SQ 10RS	10	M10×1.25	14	25	10	112
SQ 10RS-1	10	M10×1.5	14	25	10	112
SQ 12RS	12	M12×1.25	17	25	16	164
SQ 12RS-1	12	M12×1.75	17	25	16	164
SQ 14RS	14	M14×1.5	19	25	19	254
SQ 14RS-1	14	M14×2.0	19	25	19	254
SQ 16RS	16	M16×1.5	22	20	26	336
SQ 16RS-1	16	M16×2.0	22	20	26	336
SQ 18RS	18	M18×1.5	23	20	33	464
SQ 20RS	20	M20×1.5	27	20	45	538
SQ 22RS	22	M22×1.5	27	16	48	713

-For left-hand thread of the ball joint housing ,please add suffix "L'in added to bearing number ,e.g.SQL 6RS
-The type number of ball joints without seal is SQ...
