N2 Custom Series 2-Stage Planetary Gearbox Tariff-Free Made from Aluminium for Machinery Farm & CNC Industries

Send Inquiry

Product Description

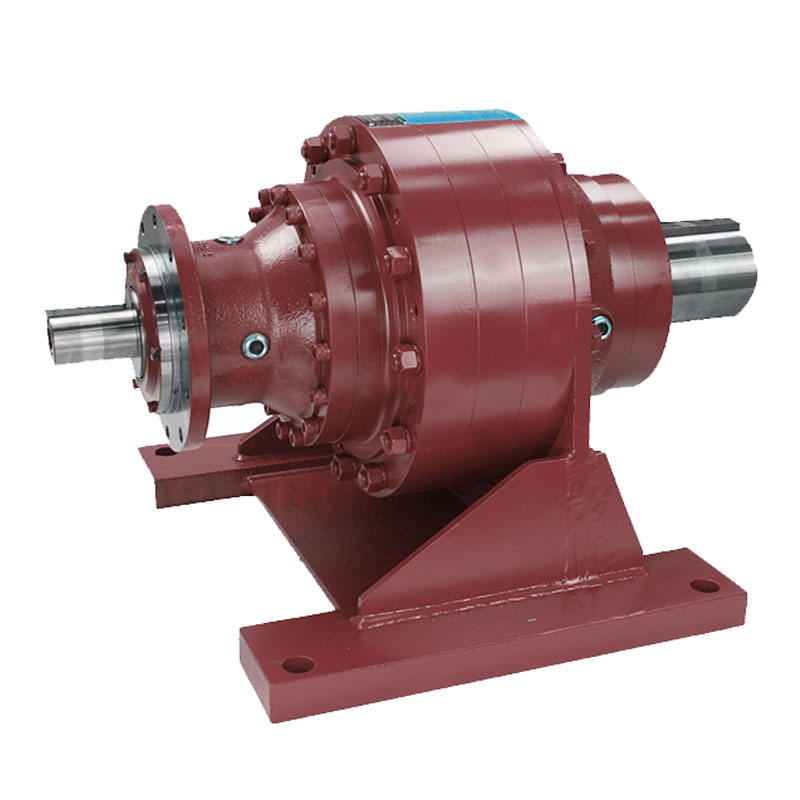

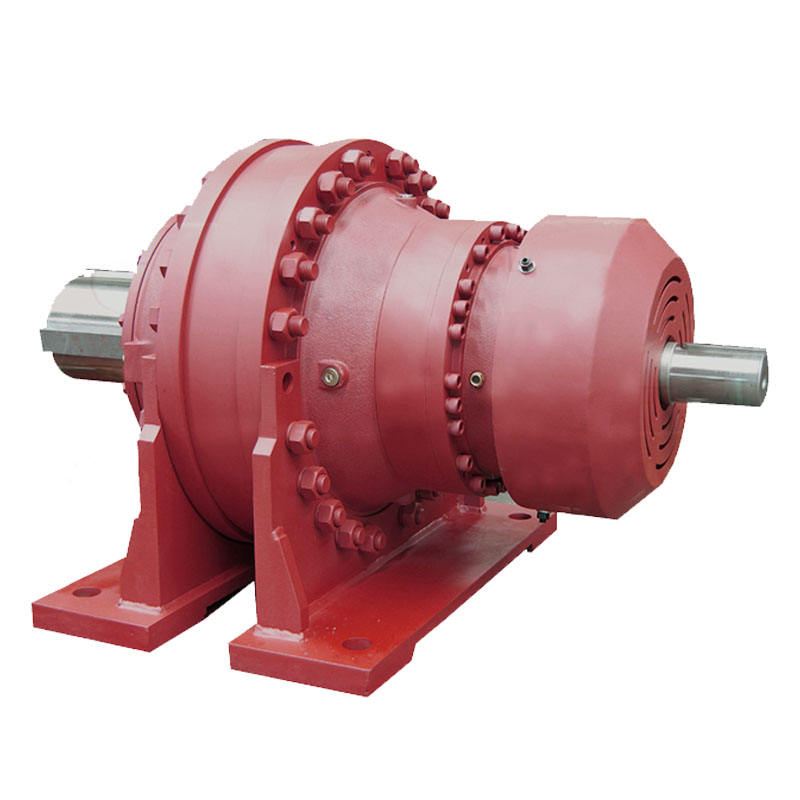

Series N2: 2 Stage Planetary Gearbox Raydafon 2 stage planetary gearbox (series N2) is designed for high efficiency (over 95%) and higher power density applications. They come in modular designs thus, can be stacked depending on the specific requirements of the customer. Based on our R&D, every Raydafon 2 stage planetary gearbox (series N2) is designed to withstand strong radial and axial loading on their output shaft. Moreover, every two stage planetary gearbox features a high torque, driving efficiency and loading capacity. Also, every planetary gearbox efficiency is attributed to the proportional distribution of torque within the gear system. This reduces wear and increases transmission of power. All our 2 stage planetary gearbox (series N2) features nodular cast housing to increase rigidity and anti-lock. They also case hardened for high quality surface finish, which also contributed to every Raydafon 2 stage planetary gearbox efficiency. We have a wide range of 2 stage planetary gearboxes (series N2) to choose from, being a reputable planetary gear reducer manufacturer.

Key Features
* Modular design,combined according to customer requirement
* Heavy bearing, Design for heavy duty Application
* Hardened gearing, long life with high reliability
* Low speed shaft design

Torque range	1000 … 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW			Electric motor
Gear ratios	12.67 … 50.9			Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions	In line	Applicable AC motors	Integral motors and brake motors
Gear unit versions					IEC-normalized motors and brake motors
Mounting type	Foot			Single and dual speed motors
		Flange mounted	Main brake features	DC and AC supply
		Torque-arm	Main brake features		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
			Splined shaft		Independent forced cooling
			Female splined shaft		Line driver and push-pull incremental encoder
		Hollow shaft with shrink disc

Click here for more model types!

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
