PIV P.I.V Self Tooth Forming Infinitely Variable Speed Chain Made in Vietnam

PIV (Infinitely Variable Transmission) technology is the stepless transmission technology. It uses the transmission belt to match the main and driven wheels with variable working diameter to transmit power. It can realize the continuous change of transmission ratio, thus obtaining the best match bet......

Send Inquiry

Product Description

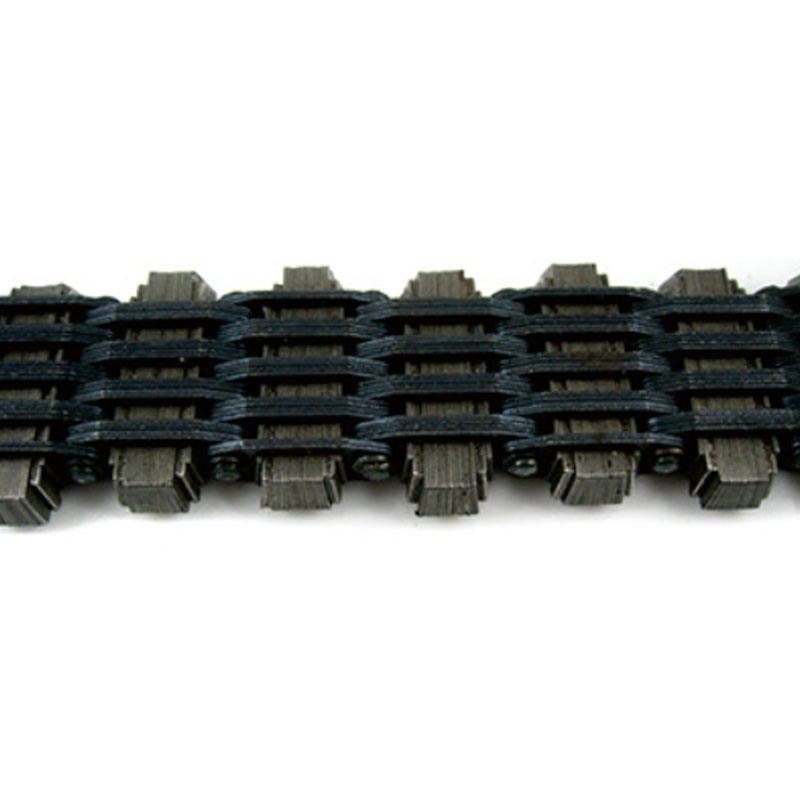

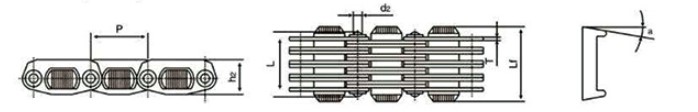

P.I.V infinitely variable speed chain

Chain No.	Pitch	Pin diameter	Pin lenght	Plate depth	Width over friction plate	Angle of friction plate	Ultimate tensile strength	Weight per meter
	P	d2	L	h2	Lf	a	Q KN	q Kg/m
A0	18.75	3	19.5	9.5	24	15	9	1
A1	19	3	25.6	10.7	30.5	15	12	1.41
A1-2	25	3	30.1	13.5	37.8	15	21	2.23
A3	28.6	3	35.3	16	44.2	15	38.5	3.04
A4	36	4	48.5	20.5	58.5	5	61.5	5.54
A5	36	4	60.5	20.5	70	15	71	5.54
A6	44	5.4	70	24	77	15	12.5	9
L0	15.2	2.8	25.2	9	30.6	15	10	1.24
L2	20.1	3	28	12.7	37.5	15	21	1.97

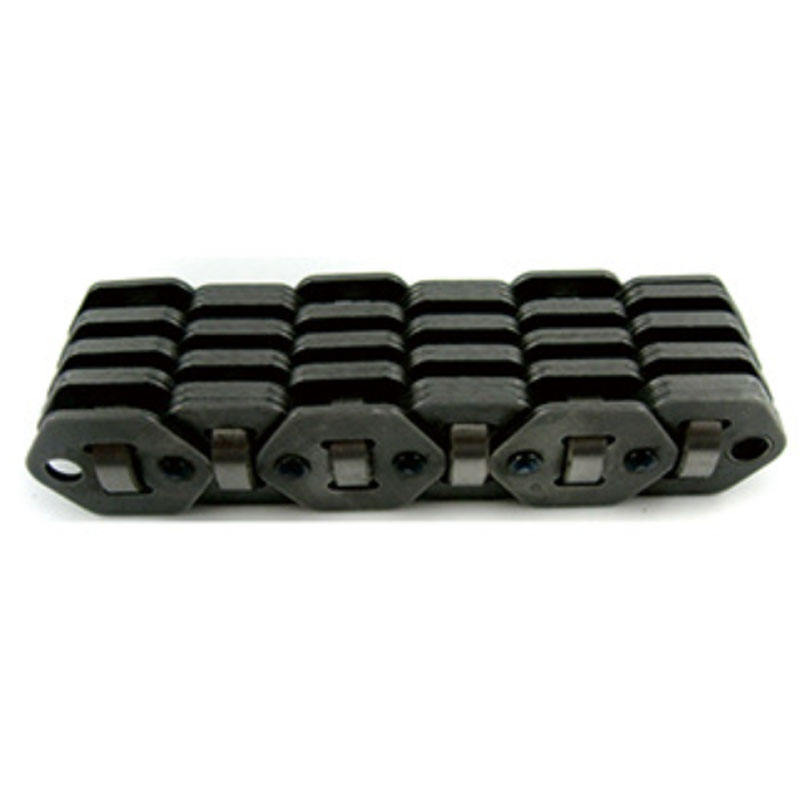

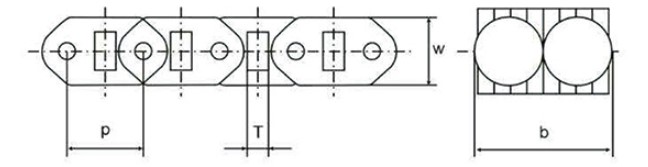

Roller type infinitely variable speed chain

Chain No.	Pitch	Plate depth	Roller width	Roller thickness
	P	W	b	T
PSR0	10.1	9.2	12	2.9
PSR1	12	12	16	4
PSR4	13.3	17.7	25	4.9
PSR5	14	20.5	31	5.3
PSR6	16.2	22.5	31	5.3

FEATURES

Stable performance It can transmit motion and power when the center distance between the two axles is far

Environmental advantages It can work under low speed, heavy load, high temperature and heavy dust

Efficiency advantages It has accurate transmission ratio, large transmission power and small force acting on the compression shaft

Installation advantages The manufacturing and installation accuracy of chain drive is relatively low, and the structure is simple and light when it is used for long-distance transmission

^{For more types,Please click here!}

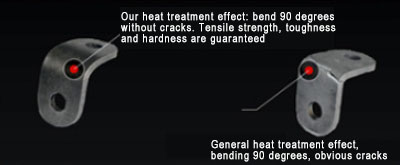

Heat treatment process

Through excellent standard and excellent heat treatment and quenching process, the hardness, strength, toughness, tensile strength and service life of parts can be improved

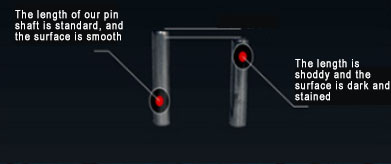

Pin screen

Each pin shaft has been strictly selected manually, without cutting corners

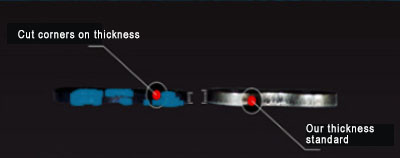

Chip screening

Customize the thickness from the raw material chain plate without cutting corners

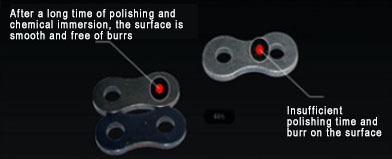

Surface treatment

Add chemical raw materials with a grinder, and the surface shall be smooth and free of burrs after the long sealing room is fully polished

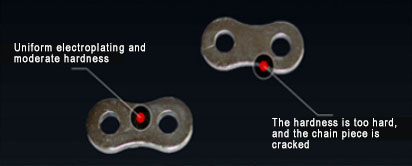

Surface electroplating

Each zero cow is fully electrolyzed, the surface thickness is uniform, and the service life is improved

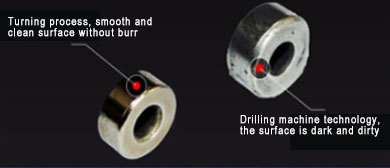

Accessory process

Each roller is made by turning process, and its surface is smooth and free of burrs

Click here to contact us for more discounts!

Please click on the photos below to visit their websites.

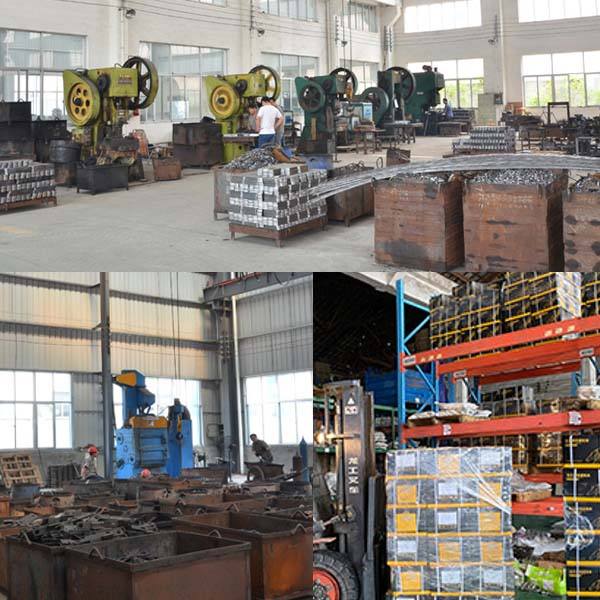

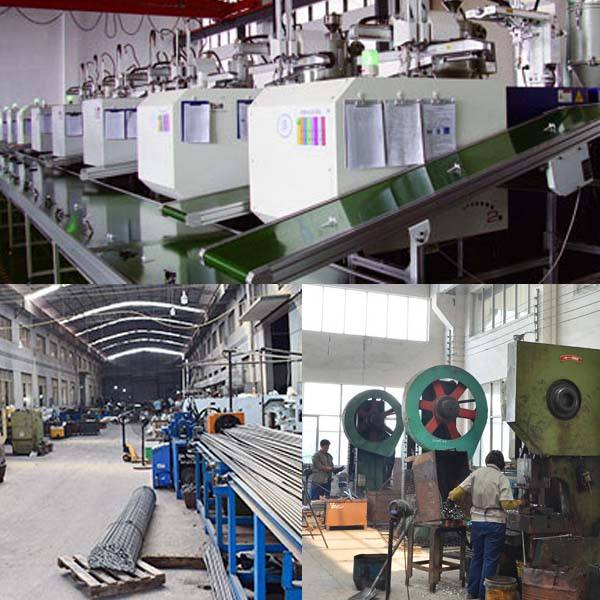

We have more than 10 years of production experience ,professional equipment and workers.

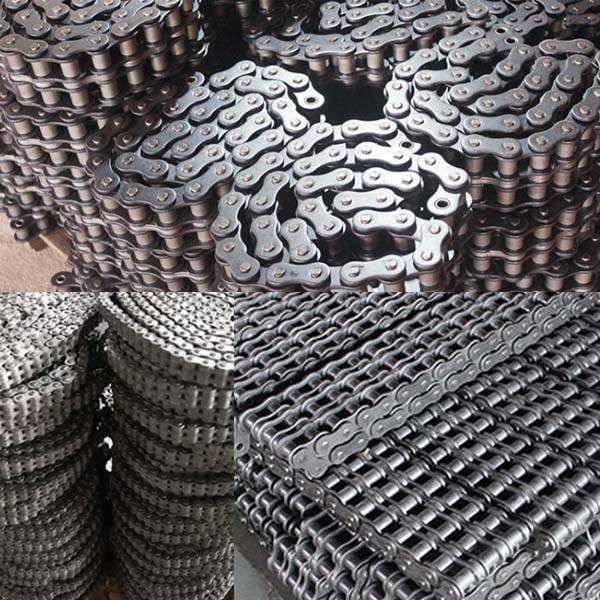

We are specialized in manufacturing transmission and conveyor roller chains in China.
We also can produce all kinds of non-standard roller chain according to your drawing.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

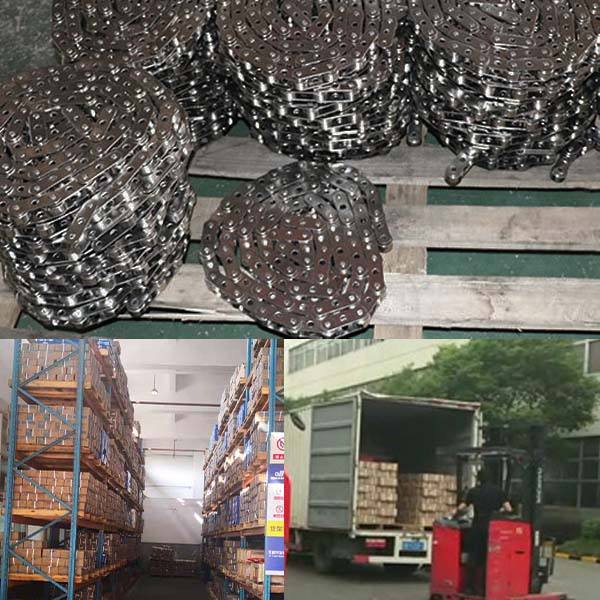

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
