Product Description

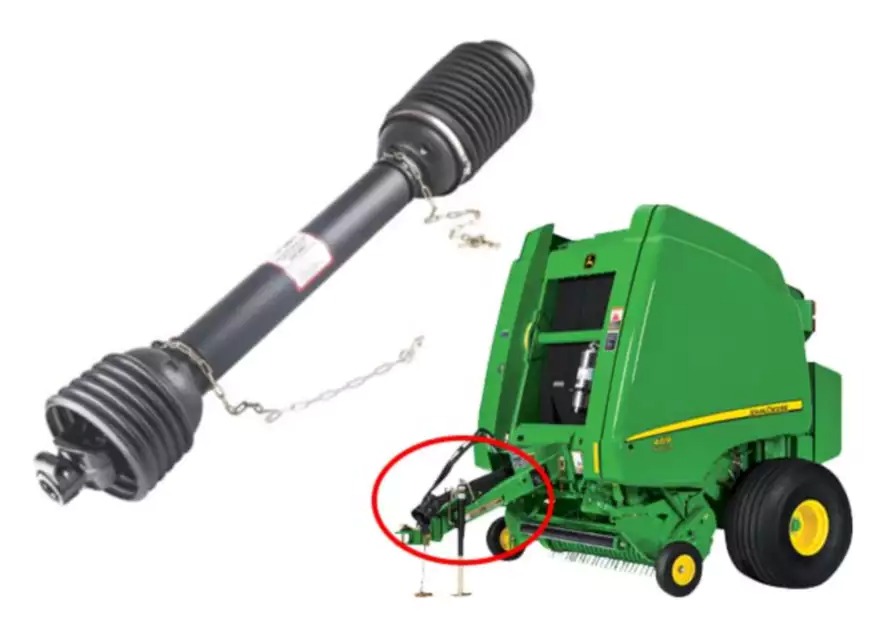

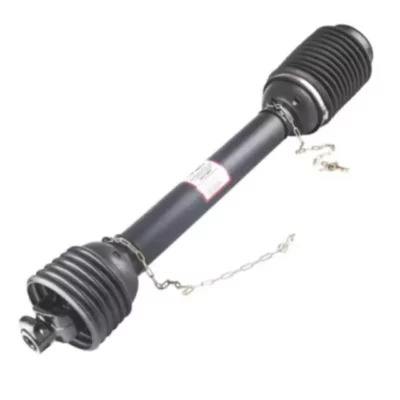

PTO Shaft for John Deere Round Balers

Applicable PTO shaft models
John Deere Round Balers and Premium Round Balers
Models: 469, 569 Round Balers, and Premium Round Balers
John Deere uses CAT4 and CAT5 constant velocity drivelines depending on the model, with friction clutch or cam clutch.
Original Equipment PTO Shaft is Weasler "Equal Arm" CV
Input shafts are 1.375-6 or 1.375-21. Please click here with your specifications.

MAIN SHAFT: CAT 3, 4, 5 Constant Velocity

Available for tractors using:
1.375"-6 or 1.375"-21 spline
Other combinations are available.
If you have a 1.75" x 20 spline tractor output we can modify a PTO CV head for you. Please call!

Model	PTO	Protection
469 Standard	CAT4	FRICTION CLUTCH
469 Premium	CAT4	CAM CLUTCH
469 Silage	CAT4	FRICTION CLUTCH
569 Standard	CAT4	FRICTION CLUTCH
569 Premium	CAT4	CAM CLUTCH
569 Silage	CAT4	FRICTION CLUTCH

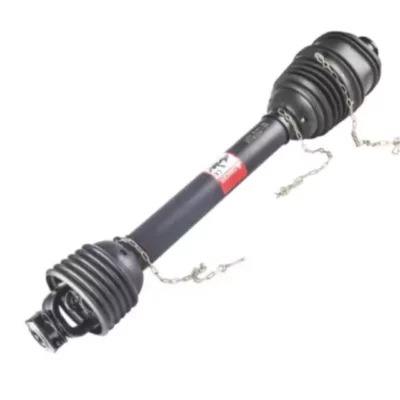

The Raydafon PTO Shaft is made to last so you know the job will get done right and provides reliable service with durable
construction. Raydafon high-performance PTO driveshafts are the foremost drive shaft solution in the agriculture and lawn and turf industries. These tractor PTO shafts are complete assemblies from tractor to implement. The PTO shafts are designed for continuous heavy-duty all-purpose use and meet the requirements of large farms and contractors.
* PTO shaft length: 46 in. (compressed)
* Round balers Series metric driveshafts are a top choice in the agriculture and lawn and turf industries
* PTO drive shaft features 1-3/8 in., 6 spline quick disconnect tractor, and implements connections for easy operation
* Designed for large farms and contractors
* Design adjustability (cut-to-length) capabilities offer versatility
* Tractor PTO shaft supports interchangeability to fit with most competitor models (sold separately)
* The easy lock guard system provides full coverage at maximum angles, a full 360-degree friction weld on the guard bell, and black coloring that is durable against ultraviolet light and ozone
* Guard system is cold weather impact rated to -35 degrees C, meets and exceeds all applicable safety standards, and ensures a quick and easy process for removal and installation
* Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours (sold separately)
* High-temperature triple lip seal retains grease better
* The yoke features a cast iron collar and a through-bore to keep debris from collecting inside
* Yoke is interchangeable with other Weasler yokes and most standard yokes (sold separately)
* Cross and bearing kit manufactured with high-quality steel for increased strength, high torque capacity, and longer life;
standard kits can be upgraded to or interchanged with E-Kits (sold separately)

Original Equipment

OEM Weasler Half Shaft Replacements

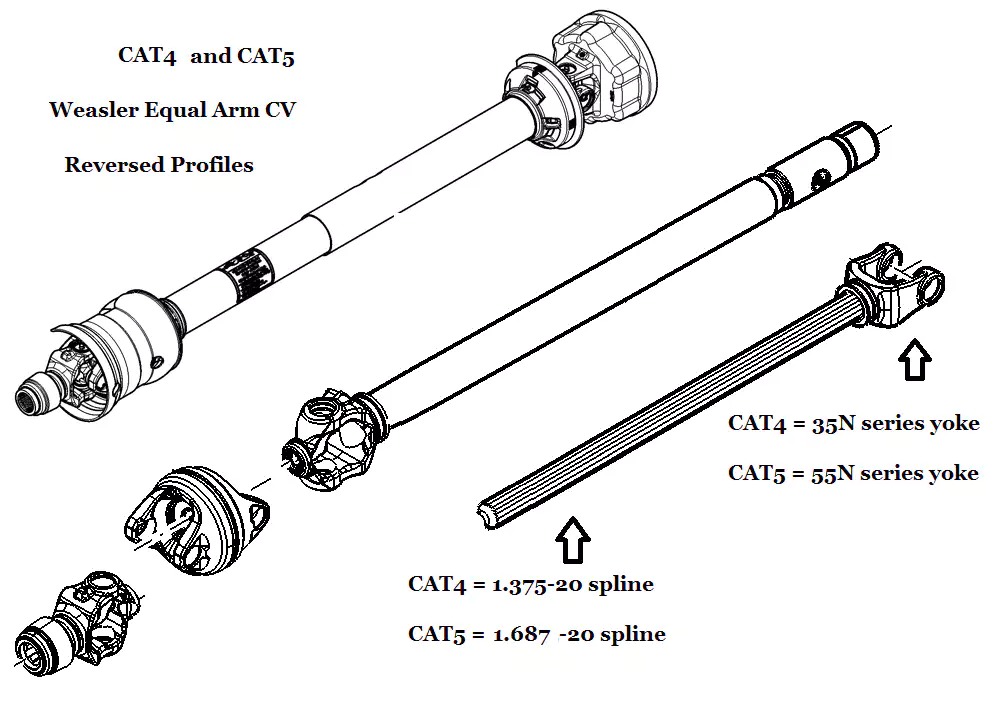

Check the diameter of the telescopic spline. Both sizes are used in various models.

OEM John Deere Half Shaft Replacements

Tractor splines	Telescoping splines	Part Number
1.375-6	1.375-20	92-14558659
1.375-6	1.375-20	92-14658659
1.375-6	1.750-20	92-14503559
1.375-21	1.750-20	92-14603559

Recommended Complete Replacement with Tube Profile

Constant Velocity PTO	Tractor	Base Part Number (add implement device)
CAT3/540	1.375-6	71R4121UCW07000
CAT4/540	1.375-6	CS6R121U2WR7014
CAT4/1000	1.375-21	CS6R121U2WR8000
CAT5/540	1.375-6	71R8121UCWR7R10
CAT5/1000	1.375-21	CS8R121U2WR8000

Baler Input Requirements
FT Clutches for 1.375-6 spline input

Universal Size	Torque nm	Part Number
CAT3 / S4	1000nm	6QE344901R
CAT3 / S4	1000nm	635E41203R
CAT4 / S6	1450nm	663G48403R
CAT4 / S7	1450nm	663H53403R
CAT5 / S8	1450nm	663L53403R
CAT5 / S9	1450nm	6LM453003R

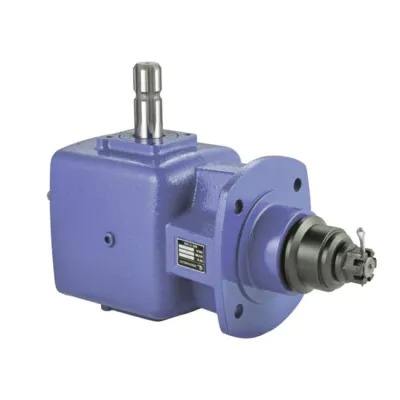

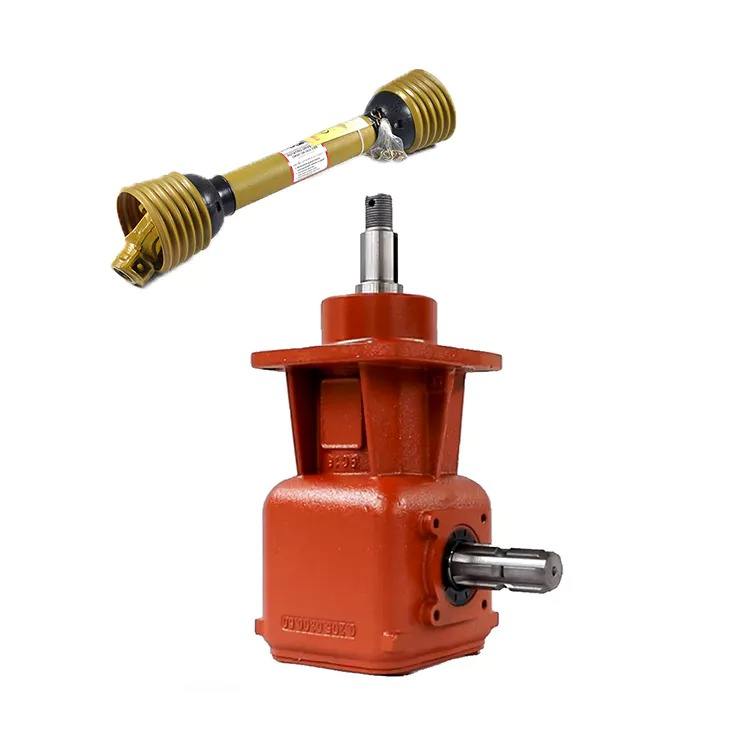

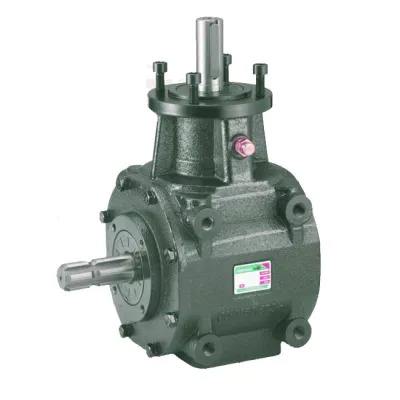

We Also Supply Agricultural gearboxes
