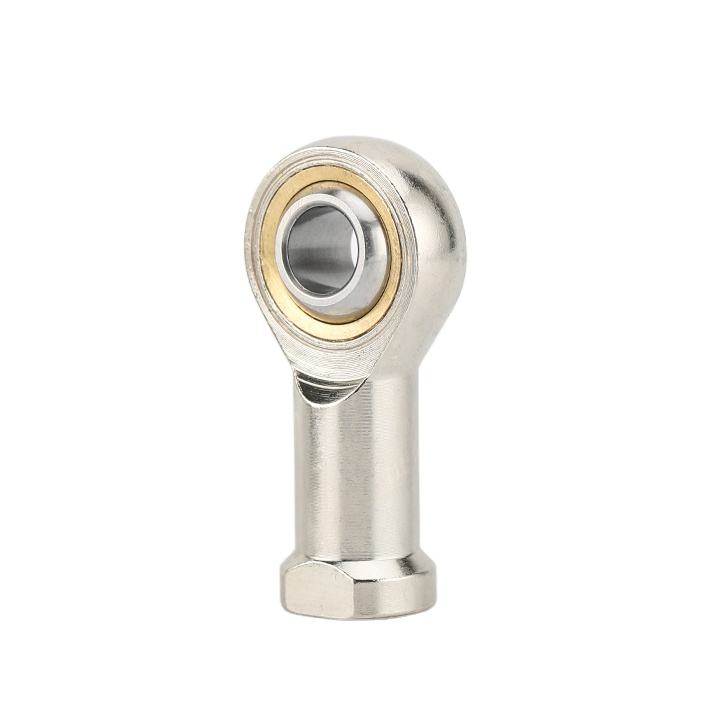

SI10T/K Series M10*1.5 Steel Thread Rod End Bearing Industrial Application Exempt From Plastic Tariffs Made in Vietnam

SI...T/K Rod End Bearing--Rod body with left or right-hand female thread --Sliding contact sarfaces: steel/PTFE--Surface of rod body zinc plated * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required * Features: The rod end bear......

Send Inquiry

Product Description

SI...T/K Rod End Bearing

--Rod body with left or right-hand female thread

--Sliding contact sarfaces: steel/PTFE

--Surface of rod body zinc plated

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

Part Number	Dimensions(mm)					Load ratings(KN)	Weight(g)
	d	d3	B	dyn.c	stat.c0
SI5T/K	5	M5*0.8	8	5.7	6	17.5
SI6T/K	6	M6*1.0	9	7.2	7.65	25
SI8T/K	8	M8*1.25	12	11.6	12.9	49
SI10T/K	10	M10*1.5	14	14.5	18	74.6
SI10-1T/K	10	M10*1.25	14	14.5	18	77
SI12T/K	12	M12*1.75	16	17	24	107
SI12-1T/K	12	M12*1.25	16	17	24	107
SI14T/K	14	M14*2.0	19	24	31	163
SI14-1T/K	14	M14*1.5	19	24	31	163
SI16T/K	16	M16*2.0	21	28.5	39	216
SI16-1T/K	16	M16*1.5	21	28.5	39	216
SI18T/K	18	M18*1.5	23	42.5	47.5	303
SI20T/K	20	M20*1.5	25	42.5	57	386
SI22T/K	22	M22*1.5	28	57	68	500
SI25T/K	25	M24*2.0	31	68	85	645
SI28T/K	28	M27*2.0	35	86	107	714
SI30T/K	30	M30*2.0	37	88	114	1105
SI30-1T/K	30	M27*2.0	37	88	114	1105
SI35T/K	35	M36*2.0	43	101	206	1600
SI40T/K	40	M42*2.0	49	124	280	2400
SI50T/K	50	M48*2.0	60	308	485	5000

For left-hand thread,please and surffix“L”,e.g. SIL 18 T/K.
If need the stainless steel material please to add “S”in front of the model for example:SS 18 T/K.

Raydafon Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
