Product Description

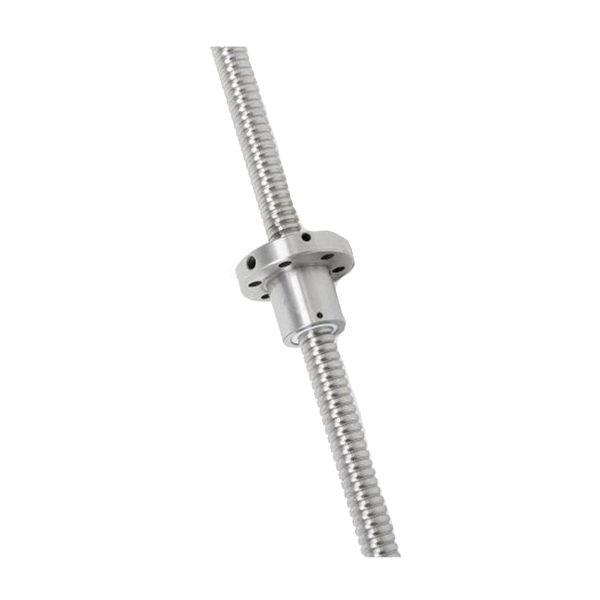

Bearing 5016 6316 Ball Screw 50mm 63mm 80mm Ball Screw
1. Grade: 1,2,3,4,5,7,10
2. Size: Nominal Dia 06-160mm, lenth: to 6000mm according to customers' requirements
3. Standard: DIN 315
4. Certification: ISO9001, SGS, CTI, ROHS

Characteristics of ball screw pair

(1) high transmission efficiency
(2) high positioning accuracy
(3) transmission reversibility
(4) long service life
(5) good synchronization performance

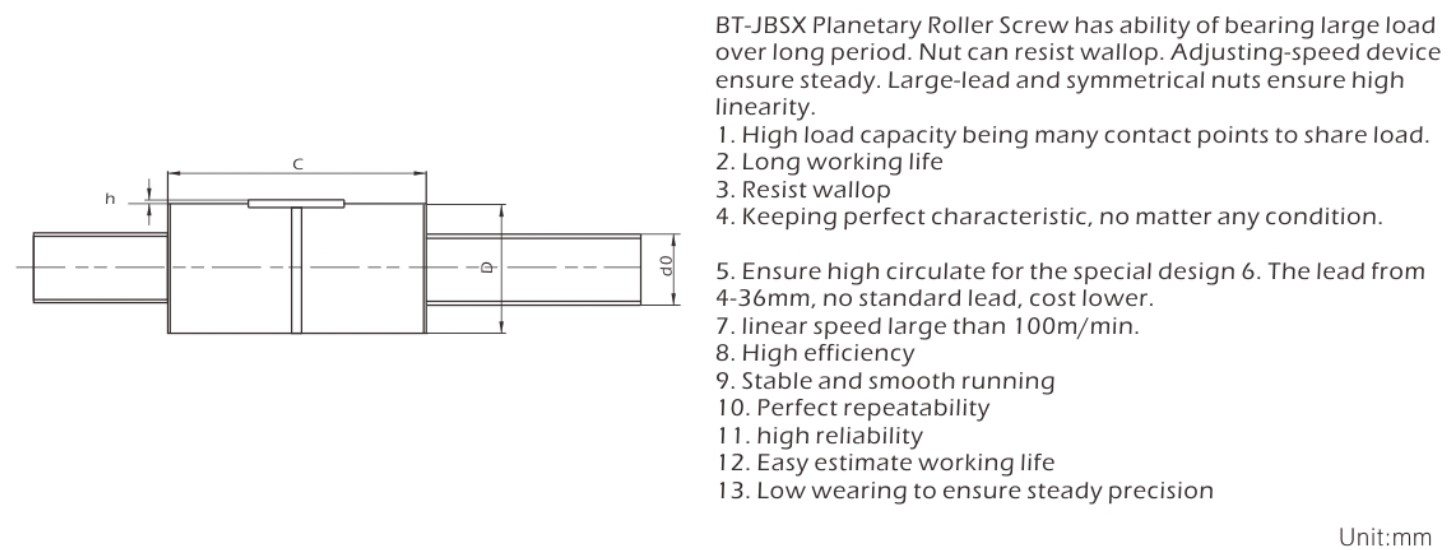

BT-JBSX Planetary Roller Screw has ability of bearing large loaover long period . Nut can resist wallop . Adjusting-speed deviensure steady . Large-lead and symmetrical nuts ensure highlinearity

1. High load capacity being many contact points to share load.

2 . Long working life

3 . Resist wallop

4 . Keeping perfect characteristic , no matter any condition .

5 . Ensure high circulate for the special design

6 . The lead fro4-36mm . no standard lead . cost lower

7 . linear speed large than 100m / min

8 . High efficiency

9 . Stable and smooth running

10 . Perfect repeatability

11 . high reliability

12 . Easy estimate working life

13 . Low wearing to ensure steady precision

Product Name	Best quality ball screw
Material	Bearing Steel
Color	nickel white
Standard	DIN GB ISO JIS BA ANSI
Application	automatic machinery
Grade	4,5 or according to customers' requirements
Thread	Milled Thread
Warranty	12 months

Ball screw pair is a mechanical component composed of screw, nut, ball and other components. Its function is to convert rotary motion into linear motion or linear motion into rotary motion. It is a further development of the traditional sliding screw. The profound significance of this development is the same as the changes brought by rolling bearings to sliding bearings. Because of its excellent friction characteristics, ball screw pairs are widely used in various industrial equipment, precision instruments and precision CNC machine tools. Since our company developed the first set of ball screw pairs in Vietnam in 1964, the company has been leading and infiltrating the development of domestic ball screw pairs in the technical development of ball screw pairs, and has been in the leading position in the R & D and manufacturing of domestic ball screw pairs. In order to adapt to the development of CNC machine tools, the company has established the product development direction of "large-scale, heavy-duty, high-speed and high-precision". In the process of product research and development, a number of new products with independent intellectual property rights, such as dkfzd end block high-speed and high-precision ball screw pair and JF / jfzd matrix large heavy-duty ball screw, have been launched. More than 30 patents have been applied for and authorized. In terms of processing technology, the company took the lead in applying induction hardening technology to the heat treatment of ball screw pairs, greatly improving the production efficiency of ball screw pairs. In recent years, the company has successfully introduced the world-class leistritz high-speed hardware rotary milling machine and hardware material rotary milling technology, which has changed the traditional processing technology for decades, improved the production capacity and quality, and greatly shortened the product production cycle. By using pre batch sizing, the product supply cycle can be shortened to 15 days. At present, the company can produce the smallest diameter Φ 6mm, lead 1mm; The maximum specification diameter is Φ 245mm; The length of single screw is 10m, and the maximum dynamic load rating is 125t. Suitable for ball screw pairs in various applications; Various ball screw pairs of 2m P1, 3M P2, 5m P3 and 10m P5 can be provided in batches. It is a professional manufacturer of ball screw pairs with the largest variety and the most complete specifications in Vietnam.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
