Product Description

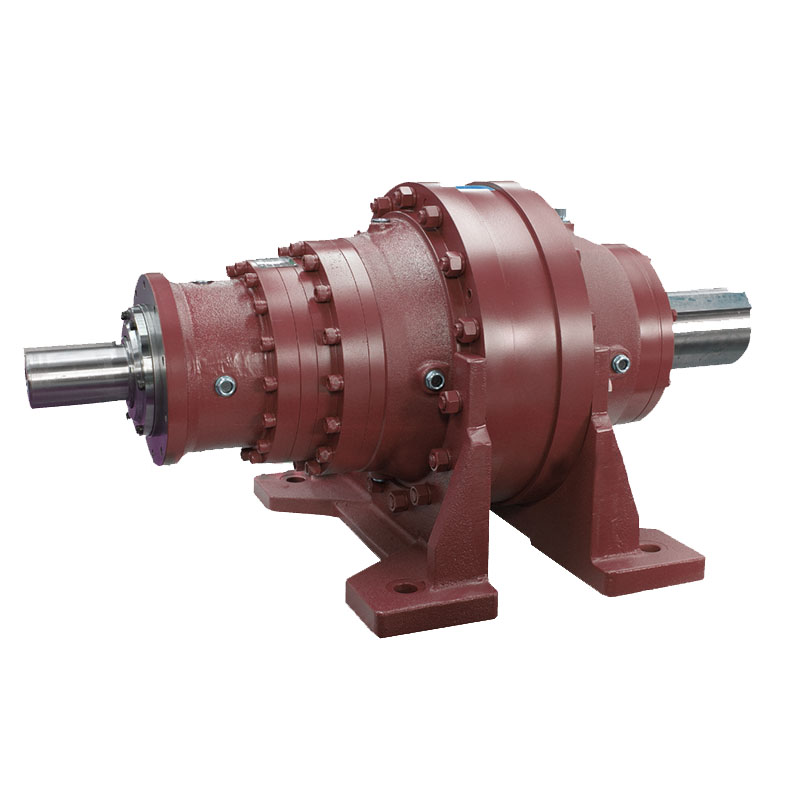

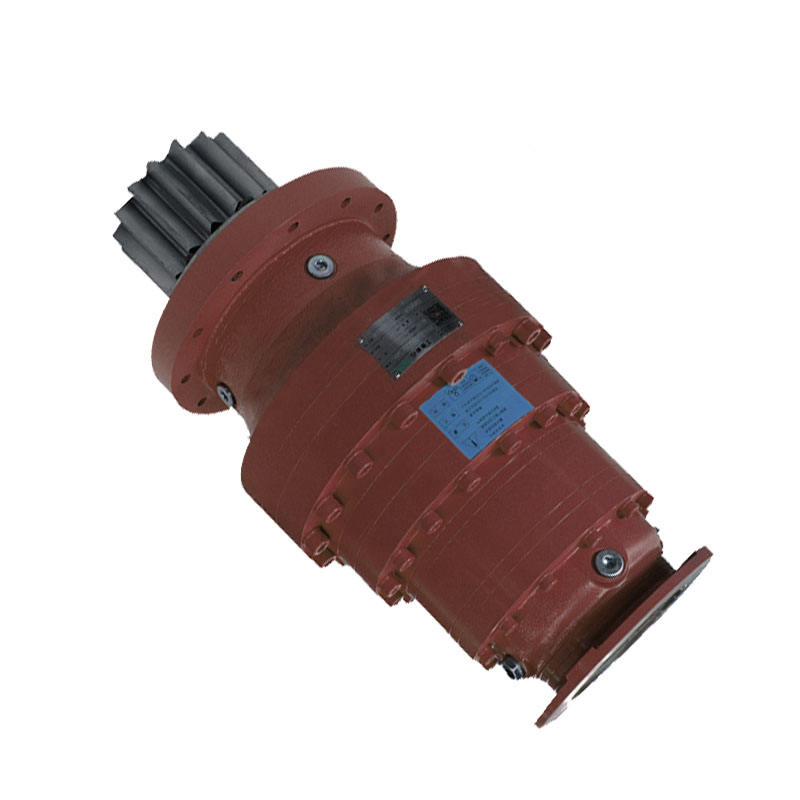

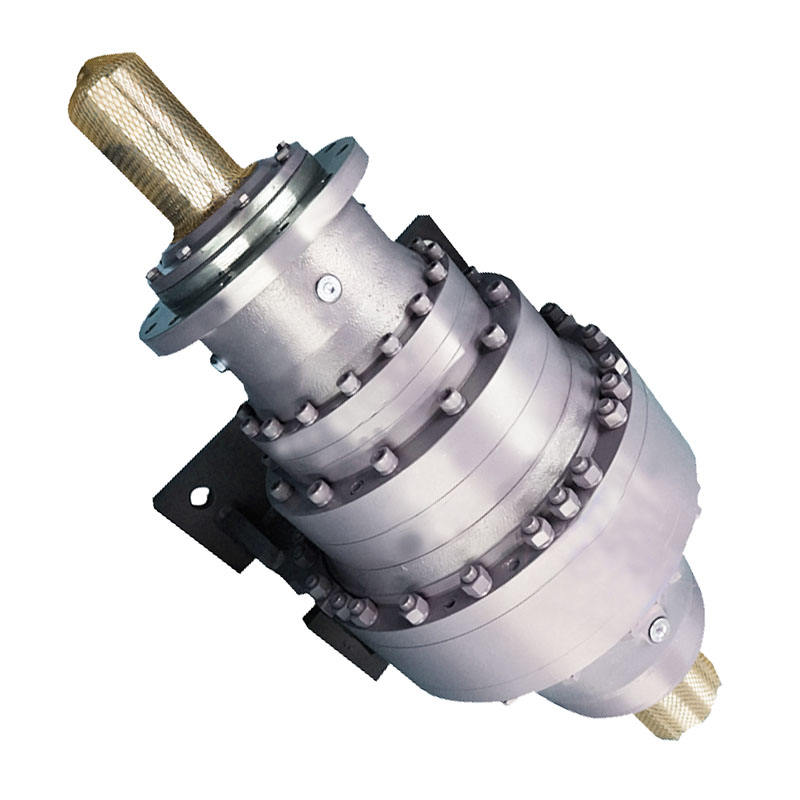

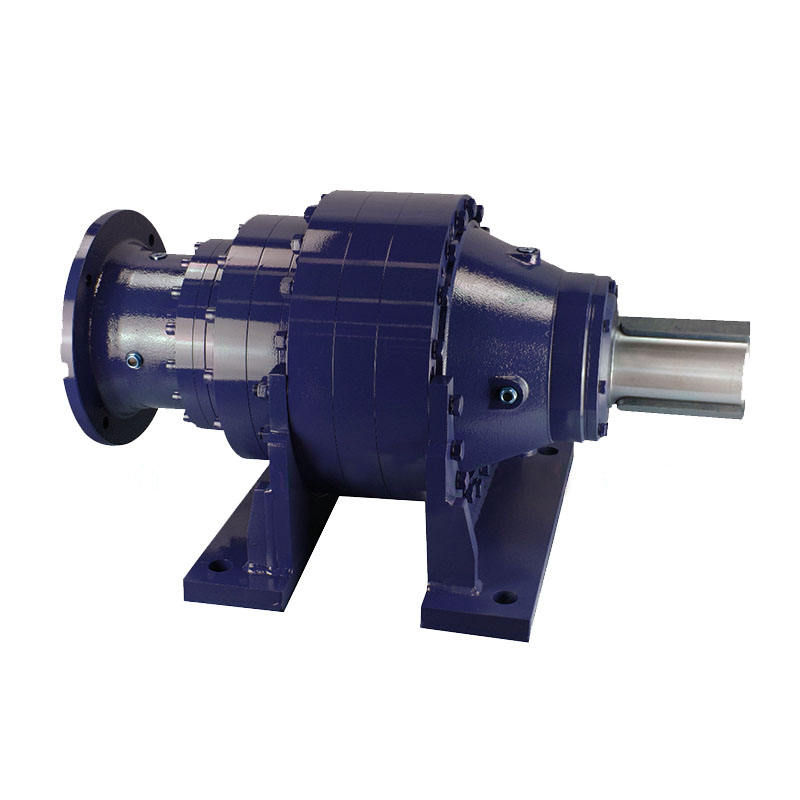

Series N3: 3 Stage Planetary Gearbox
Raydafon’s 3 stage planetary gearbox (series N3) feature a wide range of low speed shaft designs such as: cylindrical with key,
splined, hollow with shrink disc or splined hollow shaft.
Every Raydafon three stage planetary gearbox has a high capacity output bearing. Therefore, all our 3 stage planetary gearboxes guarantee a high axial and radial capacity. Also, they are resistant to tilting moment, thereby, increasing reliability and efficiency of Raydafon gearbox.
Being a quality conscious planetary gearbox manufacturer; the tooth profiles of all our 3 stage planetary gearboxes are precisely machined to guarantee low noise operation.
Whether you need a flange, foot or shaft mounting solution, we shall machine it to your specifications. Again, every gearbox part is subjected to a strict quality inspection process before shipment.
With your planetary gear calculator, you can choose from a wide range of speed and torque outputs. Our 3 stage planetary gearboxes are available in modular design allowing for easy customization.
In addition to these, every 3 stage planetary gearbox has a robust and stable support. This ensures every gear box offers a high torsion rigidity.

Torque range	1000 … 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW			Electric motor
Gear ratios	39.71-456.44			Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions		Applicable AC motors	Integral motors and brake motors
Gear unit versions			Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot			Single and dual speed motors
		Flange mounted	Main brake features	DC and AC supply
		Torque-arm	Main brake features		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
			Splined shaft		Independent forced cooling
			Female splined shaft		Line driver and push-pull incremental encoder
		Hollow shaft with shrink disc

Click here for more model types!
