Product Description

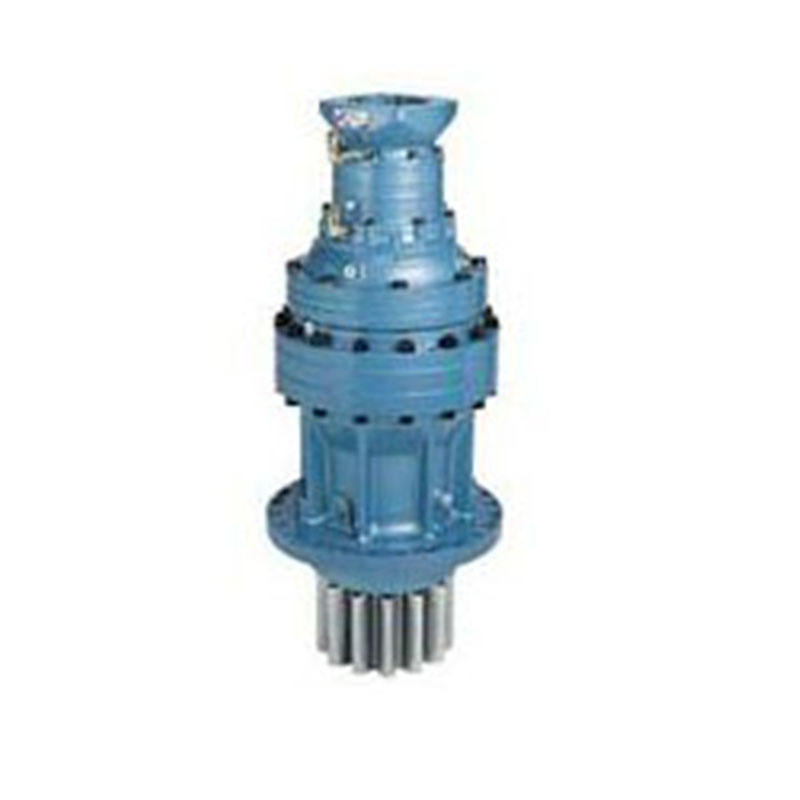

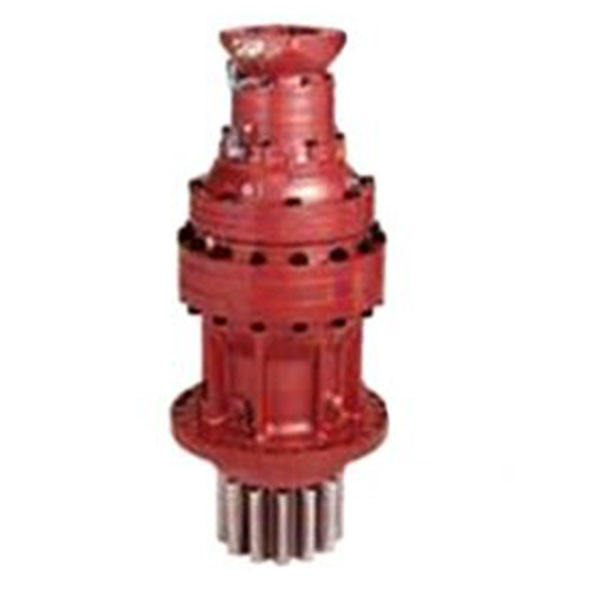

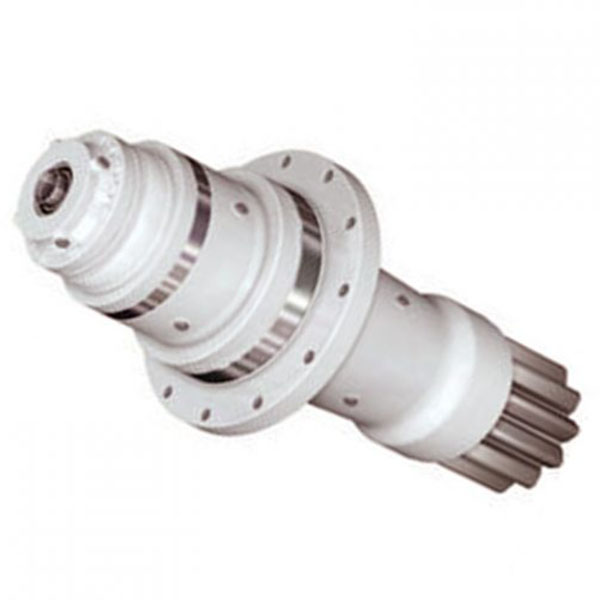

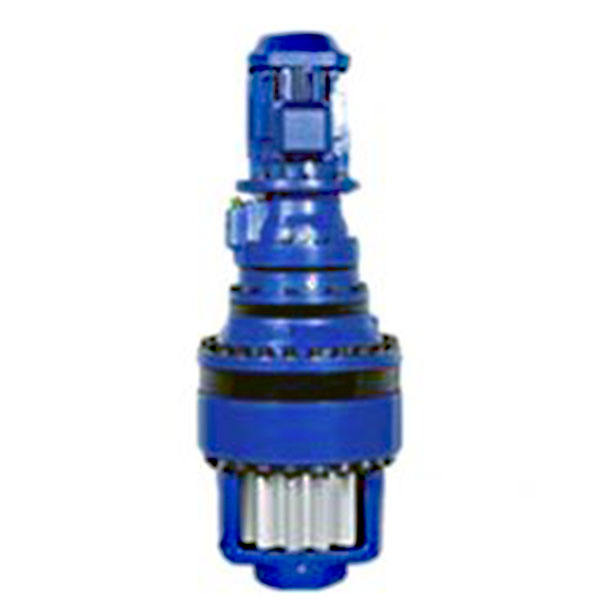

Series N…G: planetary gear slew drive gearbox
Raydafon as slew drive manufacturers, our planetary gear applications mainly for winch crane, slewing deck crane, crane winch design, excavator swing drive, slewing drive for solar tracking system etc.
Raydafon unique planetary gear reduction gearbox working principle makes these slew drive for solar tracker bear a big radial load due to the proportionate distribution of torque. Also, every SGR slewing drives has hydraulic motor configurations.
Raydafon slew drive gearbox as one series of high torque planetary gearbox we have all series slew gearbox size meet customer different demand .

Key Features
* Modular design, combined according to customer requirement

* Heavy bearing, Design for heavy duty Application
* Hardened gearing, long life with high reliability
* Low-speed shaft design
Application :
Raydafon slewing drive gearbox for mobile cranes, Tower cranes ,Crawler Cranes ,Deck Cranes , planetary gear for Stackers /Reclamers ,Drilling Machines ,slewing drives for Concrete pump . etc .

Torque range	1000 … 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW			Electric motor
Gear ratios	140.36-3144.53			Solid input shaft with or without fan cooling – inch or metric dims.
Gear unit versions		Applicable AC motors	Integral motors and brake motors
Gear unit versions			Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot			Single and dual speed motors
		Flange mounted	Main brake features	DC and AC supply
		Torque-arm	Main brake features		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
			Splined shaft		Independent forced cooling
			Female splined shaft		Line driver and push-pull incremental encoder
		Hollow shaft with shrink disc

Click here for more model types!

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
