Tariff-free 300 Series Inline Planetary Gear Drives Speed Reducer Gearbox Replacement of Bonfiglioli 301L1 301L2 301L3 301L4

Note: Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox, are exactly the same withTrasmital Bonfiglioli in installation dimensions, and almost the same with Trasmital Bonfiglioli in performance parameters. So ourgear drives and TrasmitalBonfiglioli's can be......

Send Inquiry

Product Description

Note: Our planetary gearbox, wheel drive gearbox, winch drive gearbox, and track drive gearbox, are exactly the same with
Trasmital Bonfiglioli in installation dimensions, and almost the same with Trasmital Bonfiglioli in performance parameters. So ourgear drives and TrasmitalBonfiglioli's can be used interchangeably.

The 300L series and 300R series planetary gearboxes can be interchangeable with the following models ofTrasmital Bonfiglioli: 300L1, 300L2, 300L3, 300L4, 300R2, 300R3, 300R4, 301L1, 301L2, 301L3, 301L4, 301R2, 301R3, 301R4, 303L1, 303L2, 303L3, 303L4, 303R2, 303R3, 303R4, 305L1, 305L2, 305L3, 305L4, 305R2, 305R3, 305R4, 306L1, 306L2, 306L3, 306L4, 306R2, 306R3, 306R4, 307L1, 307L2, 307L3, 307L4, 307R2, 307R3, 307R4, 309L1, 309L2, 309L3, 309L4, 309R2, 309R3, 309R4, 310L1, 310L2, 310L3, 310L4, 310R2, 310R3, 310R4, 311L1, 311L2, 311L 3, 311L 4, 311R2, 311R3, 311R4,

313L1, 313L2, 313L3, 313L4, 313R2, 313R3, 313R4,

315L1, 315L2, 315L3, 315L4 , 315R3, 315R4,

316L1, 316L2, 316L3, 316L4, 316R3, 316R4,

317L1, 317L2, 317L3, 317L4, 317R3, 317R4,

318L1, 318L2, 318L3, 318L4 ,318R4,

319L1, 319L2, 319L3, 319L4, 319R4,

321L1, 321L2, 321L3, 321L4, 321R4

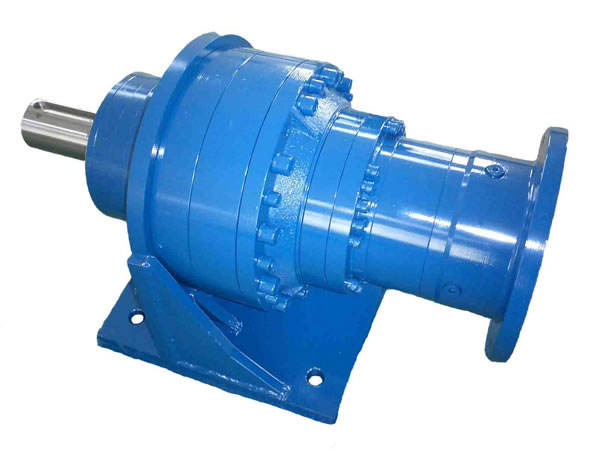

303L3-HC

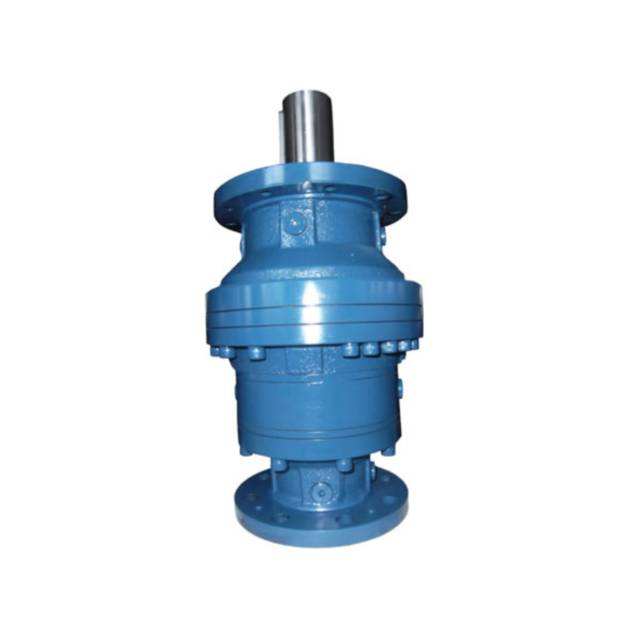

305L2-HZ

300 series is compact and powerful. Its planetary transmission system makes it an ideal choice for all heavy load applications, in which impact loads and impacts are more common than exceptions. Due to the multiple choices of installation, gear layout, output shaft and motor interface, the product configuration has a high degree of versatility. All functions are applicable to 20 rack sizes with fine intervals, and the torque range is 1000 to 1100000 nm.

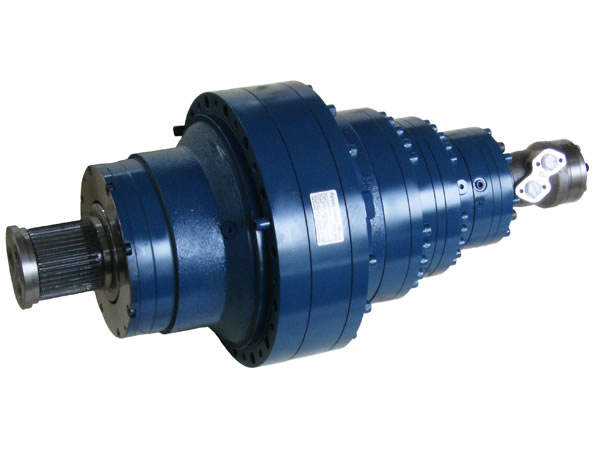

305L4-PZ

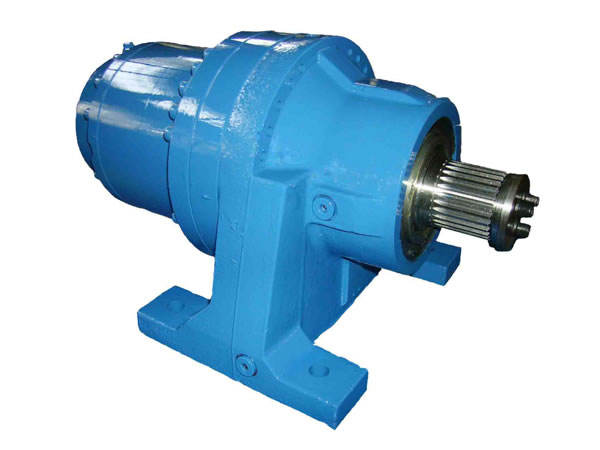

309L3-PC

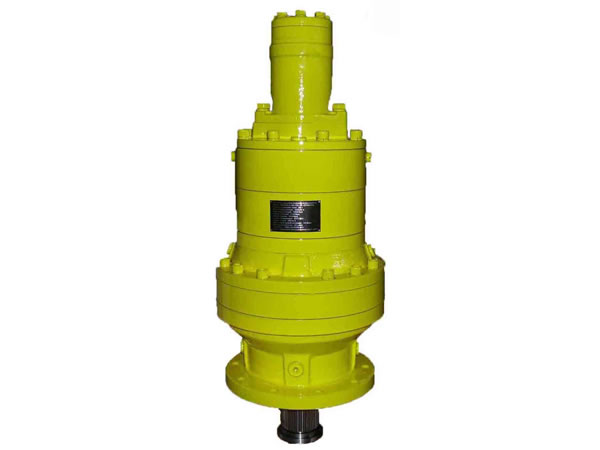

310L3-HZ

Superior Performance The Raydafon EP300 Series inline planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300L Series is also available in a high power version , linking the performance of our planetary technology with the high quality and reliability of gearboxes : a solution that is more efficient , quieter , more compact , and more cost-effective compared with traditional gear units

Key Features

1 . Torque range : 1000-450.000 Nm

2. Transmissible mechanical power . up to 540 kw

3. Gear ratios : 34-9.000

4 . Gear unit versions : in line

5. Output confiqurations

1 ) Foot and flange mounted

2 ) Output shaft : solid with key , splined , splined hollow

3 ) Hollow with shrink disc

6 . Input configurations

1 ) Flanged axial piston hydraulic motors

2 ) Hydraulic orbit motors

3 ) IEC and Nema motor adaptors

4 ) Solid input shaft

7 . Hydraulic brake : hydraulically released parking brake

8 . Electric brake . DC and AC type

Tipo		Torque Nm
EP300L	EP300L1 /EP300L2 /EP300L3 /EP300L4	1000
EP301L	EP301L1 /EP301L2 /EP301L3 /EP301L4	1750
EP303L	EP303L1 /EP303L2 /EP303L3 /EP303L4	2500
EP305L	EP305L1 /EP305L2 /EP305L3 /EP305L4	5000
EP306L	EP306L1 /EP306L2 /EP306L3 /EP306L4	8500
EP307L	EP307L1 /EP307L2 /EP307L3 /EP307L4	12500
EP309L	EP309L1 /EP309L2 /EP309L3 /EP309L4	18000
EP310L	EP310L1 /EP310L2 /EP310L3 /EP310L4	25000
EP311L	EP311L1 /EP311L2 /EP311L3 /EP311L4	40000
EP313L	EP313L1 /EP313L2 /EP313L3 /EP313L4	55000
EP315L	EP315L1 /EP315L2 /EP315L3 /EP315L4	100000
EP316L	EP316L1 /EP316L2 /EP316L3 /EP316L4	135000
EP317L	EP317L1 /EP317L2 /EP317L3 /EP317L4	170000
EP318L	EP318L1 /EP318L2 /EP318L3 /EP318L4	250000
EP319L	EP319L1 /EP319L2 /EP319L3 /EP319L4	350000
EP321L	321L1/321L2/321L3/321L4	500000

Alternative Brand/Model inquiry

Trasmital Bonfiglioli Brevini Riduttori Bosch Rexroth Comer Industries Reggiana Riduttori Rossi Zollern

Click here for more model types!

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating lters, thickeners, clariers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)
