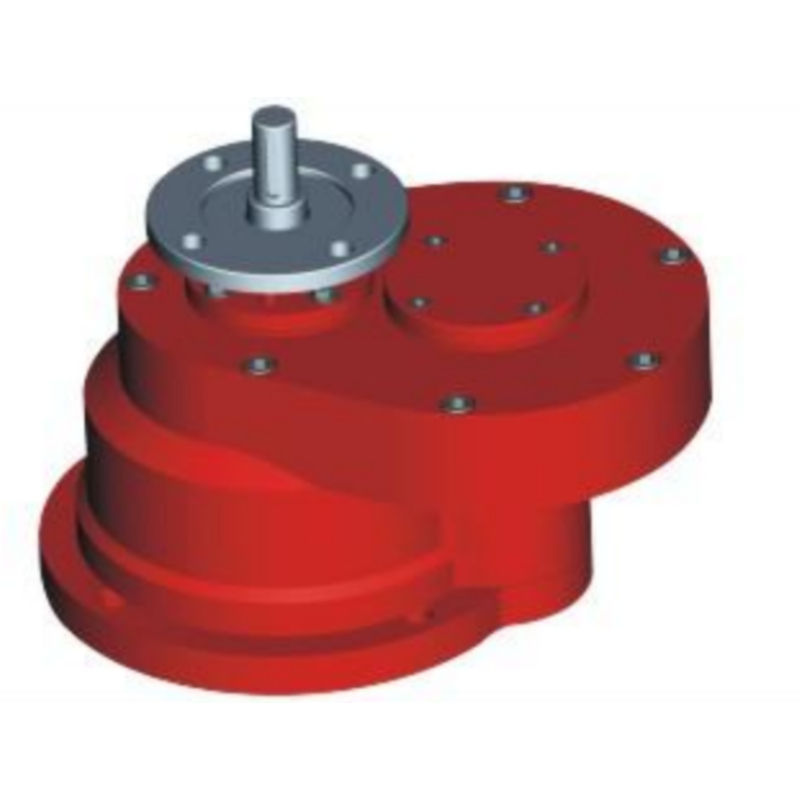

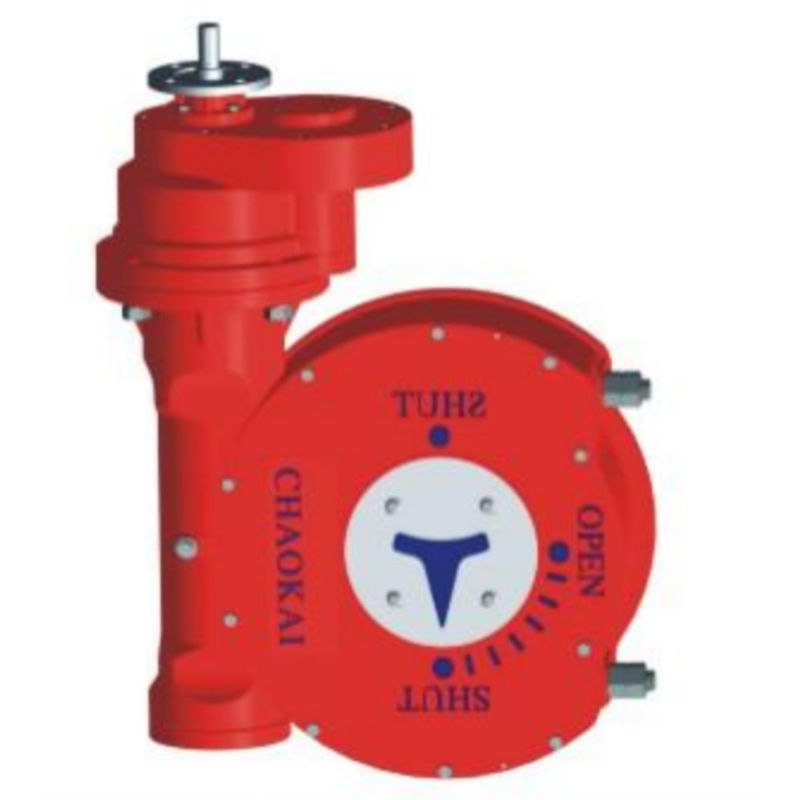

Technology data | ||||||||||||||||||
Model | S6 | S7 | S8 | S9 | S10 | S12 | S13 | S14 | S15 | |||||||||
Ratio | 456:01:00 | 551:01:00 | 583:01:00 | 682:01:00 | 737:01:00 | 1920:01:00 | 2407:01:00 | 2703:01:00 | 2759:01:00 | |||||||||
Input moment(N.m) | 122 | 133 | 156 | 156 | 156 | 195 | 195 | 195 | 250 | |||||||||
Out put moment(N.m) | 4000 | 5480 | 5850 | 7020 | 18500 | 28500 | 34500 | 39000 | 50000 | |||||||||
Rotate angle | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | |||||||||
Tolerance | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | ±5° | |||||||||
Butterfly valve DN | 400-450 | 500-600 | 700 | 800 | 900-1000 | 1100-1200 | 1400-1600 | 1800-2000 | 2400 | |||||||||
Ball valve DN | 200 | 250-300 | 350 | 400 | 500 | 600 | 800 | 1000 | 1200 | |||||||||

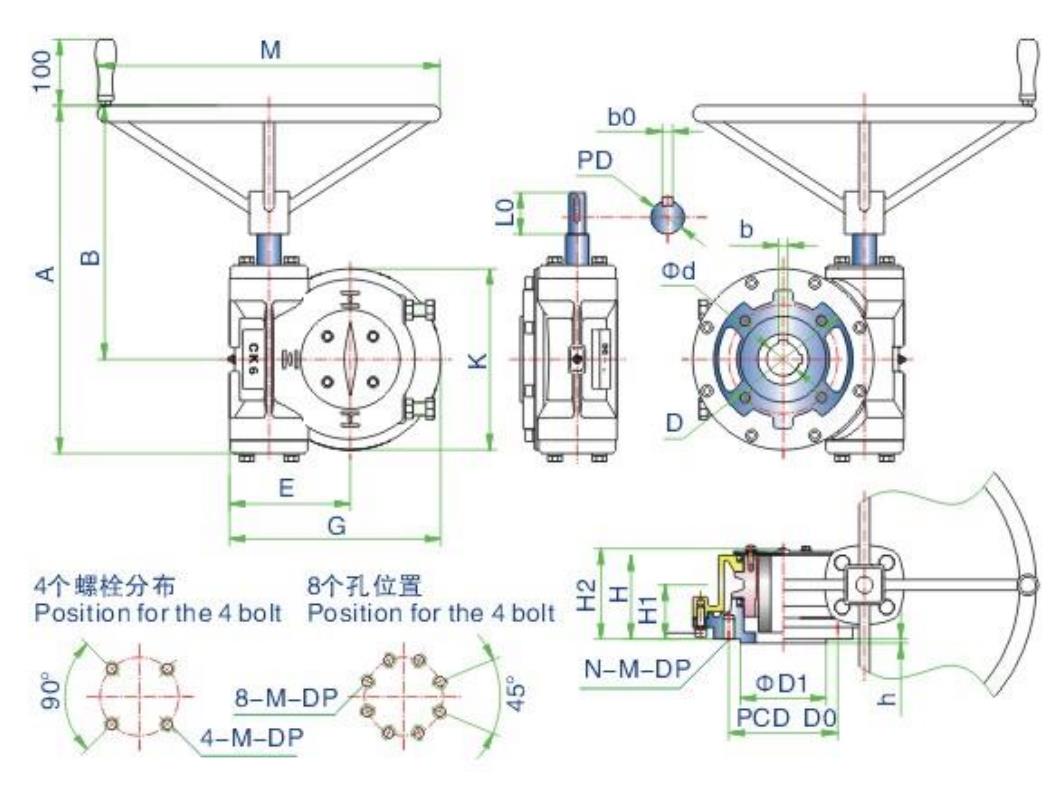

Joint dimension | ||||||||||||||||||
D | 205 | 260 | 300 | 350 | 415 | 475 | 560 | 650 | 800 | |||||||||
D1 | 170 | 200 | 254 | 298 | 356 | 406 | 483 | 590 | 720 | |||||||||
D2 | 130×5 | 160×5 | 200×5 | 230×5 | 260×5 | 300×8 | 370×8 | 490×8 | 600×8 | |||||||||
N-M | 8-M14 | 8-M16 | 8-M16 | 8-M20 | 12-M20 | 12-M20 | 12-M22 | 12-M27 | 12-M30 | |||||||||
d | 40 | 50 | 70 | 80 | 90 | 110 | 130 | 160 | 200 | |||||||||
dmin-max | 38-48 | 50-60 | 55-70 | 75-85 | 90-100 | 98-120 | 115-145 | 160-180 | 200-250 | |||||||||
Key×Qty. ×90° | 14×2 | 16×2 | 20×2 | 22×2 | 28×2 | 28×2 | 32×2 | 32×2 | 36×2 | |||||||||
h | 105 | 110 | 120 | 120 | 150 | 180 | 195 | 205 | 250 | |||||||||
φ | 350 | 350 | 400 | 400 | 500 | 600 | 600 | 600 | 600 | |||||||||
Outline dimension | ||||||||||||||||||
Model | S6 | S7 | S8 | S9 | S10 | S11 | S12 | S13 | S14 | |||||||||
A | 500 | 525 | 590 | 710 | 790 | 940 | 970 | 1025 | 1410 | |||||||||
B | 330 | 365 | 420 | 600 | 560 | 600 | 730 | 850 | 1080 | |||||||||
C | 470 | 515 | 550 | 630 | 820 | 850 | 1030 | 1150 | 1520 | |||||||||
E | 320 | 340 | 360 | 435 | 580 | 560 | 690 | 820 | 1020 | |||||||||
H | 290 | 300 | 350 | 400 | 425 | 450 | 480 | 520 | 600 | |||||||||
H1 | 125 | 130 | 155 | 160 | 180 | 210 | 240 | 240 | 340 | |||||||||
Q | 250 | 300 | 340 | 410 | 480 | 590 | 690 | 840 | 1070 | |||||||||
Weight(kg) | 45 | 58 | 90 | 116 | 195 | 300 | 600 | 1000 | 2000 | |||||||||
