Tariff-free EP301R1 EP301R2 EP301R3 EP301R4 Right Angle Planetary Gear Drives Speed Reducer Gearbox

Superior PerformanceThe Raydafon EP300R Series right angle planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a s......

Send Inquiry

Product Description

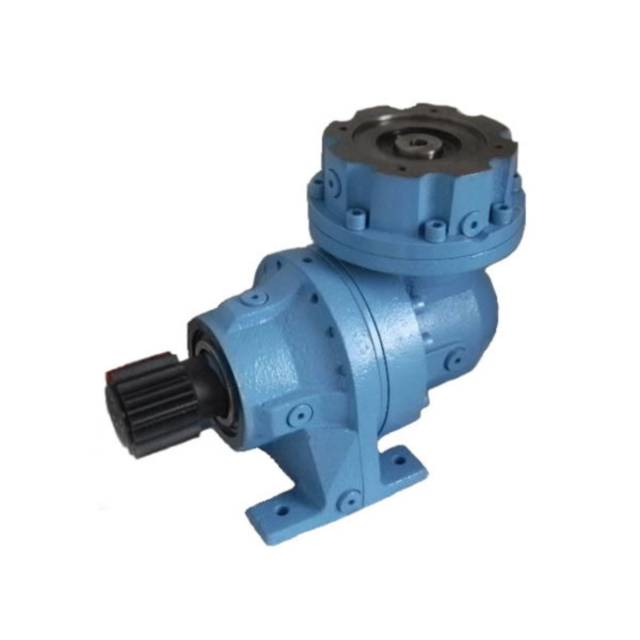

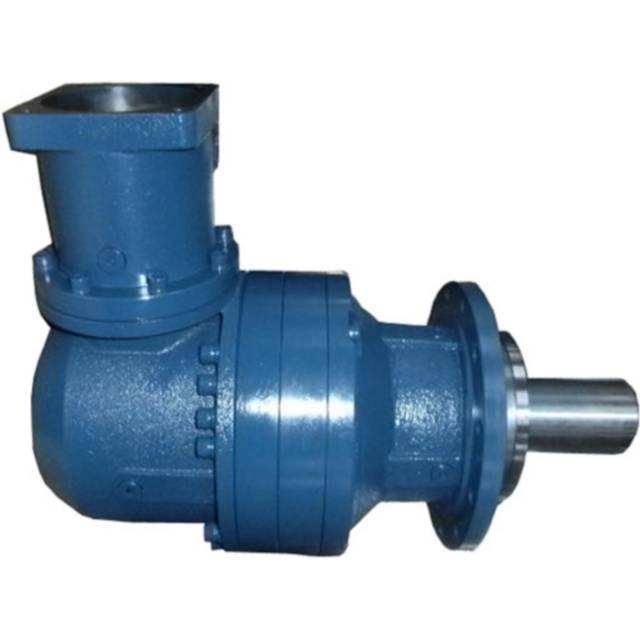

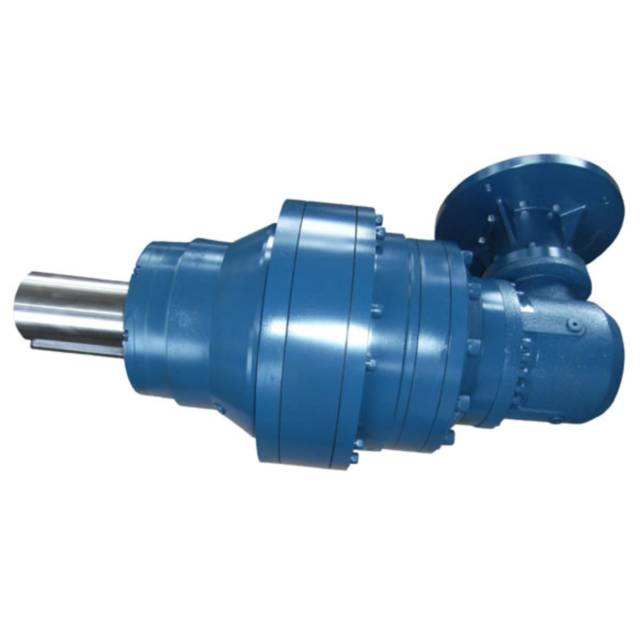

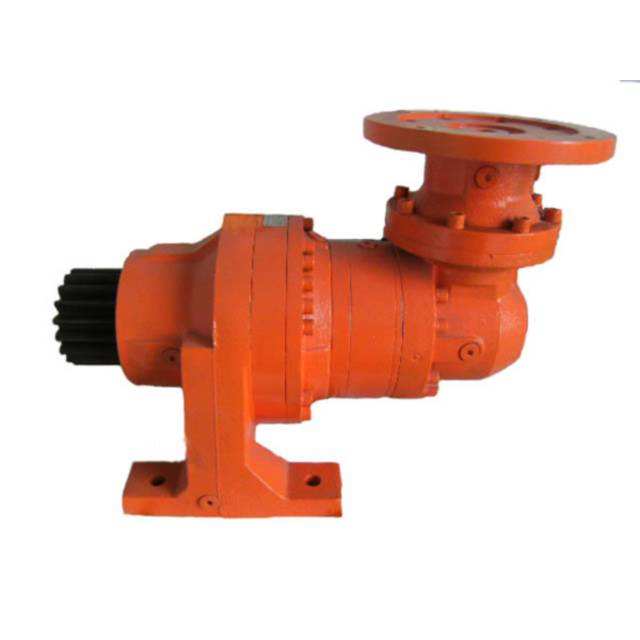

Superior Performance The Raydafon EP300R Series right angle planetary gear reducer is the best gearbox solution for all applications requiring high torque with minimal dimensions such as fixed industrial equipment and heavy self-propelled machines. This planetary gear transmission solution offers a substantial improvement over ordinary gearboxes in terms of space occupation and weight This gearbox combines high performance with low cost and compact size, excellent reliability simple installation and reduced maintenance The EP300L series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications The NB300R Series is also available in a high power version , linking the performance of our planetary technology with the high quality and reliability of gearboxes : a solution that is more efficient , quieter , more compact , and more cost-effective compared with traditional gear units

* Torque range

1,000 ... 1,100,000 Nm (8,850 … 9,735,820 in-lb)
* Gear ratios
3.4 ... 5,000
* Transmissible Mechanical Power
up to 1,050 kW
* Brake options
Hydraulic brake
Hydraulically released parking brake on request
Electric brake
DC and AC type
* Output
Foot and flange mounted
Output shaft: solid with key, splined, splined hollow, hollow with shrink disc
* Input
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adapters
Solid input shaft
* Applicable motors
Piston hydraulic motors
Hydraulic orbit motors
Electric motors IEC

Tipo		Torque Nm
EP300R	EP300R1 /EP300R2 /EP300R4	1000
EP301R	EP301R1 /EP301R2 /EP301R4	1750
EP303R	EP303R1 /EP303R2 /EP303R4	2500
EP305R	EP305R1 /EP305R2 /EP305R4	5000
EP306R	EP306R1 /EP306R2 /EP306R4	8500
EP307R	EP307R1 /EP307R2 /EP307R4	12500
EP309R	EP309R1 /EP309R2 /EP309R4	18000
EP310R	EP310R1 /EP310R2 /EP310R4	25000
EP311R	EP311R1 /EP311R2 /EP311R4	40000
EP313R	EP313R1 /EP313R2 /EP313R4	55000
EP315R	EP315R1 /EP315R4	100000
EP316R	EP316R1 /EP316R4	135000
EP317R	EP317R1 /EP317R4	170000
EP318R	EP318R4	250000
EP319R	EP319R4	350000
EP321R	EP321R4	500000

Click here for more model types!

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating lters, thickeners, clariers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)

Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
