Tariff-free LF 810TAB Series Sideflexing Plastic Flat Top Chains for the Conveyor of Instant Noodles Made in Vietnam

Mainly used for the delivery of instant noodles.The longest distance: 12MPacking: 10 feet=3.048 M/carton 52pcs/MChain No.Width ( W )WeightMinimum Radius R min. (mm)mminchkg/mlbs/ftLF810TAB-K470A1204.70.780.53550LF810TAB-K470B1204.70.800.58550LF810TAB-K470C1204.71.000.58550From standard, low friction......

Send Inquiry

Product Description

Mainly used for the delivery of instant noodles. The longest distance: 12M Packing: 10 feet=3.048 M/carton 52pcs/M

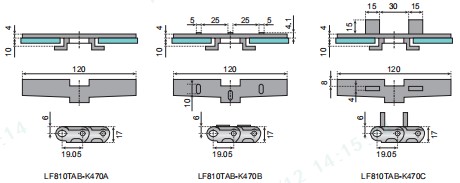

Chain No.	Width ( W )			Weight		Minimum Radius R min. (mm)
Chain No.		mm	inch	kg/m	lbs/ft
LF810TAB-K470A	120	4.7	0.78	0.53	550
LF810TAB-K470B	120	4.7	0.80	0.58	550
LF810TAB-K470C	120	4.7	1.00	0.58	550

From standard, low friction to specialized high-tech materials for very specific applications, the Raydafon Conveyor Chain range is capable of delivering a wide range of solutions for conveyor applications for the beverage industry.

High strength materials
For lubricated and dry running beverage applications and also for abrasive applications in glass works, special materials are available, offering high PV resistance and very low friction.

Sliding properties
Raydafon developed kinds of advance material for chain to ensure superior sliding properties,. In many cases, these materials are Especially defined for conveyor applications and the materials has friction coefficients tailored to the intended application.

Flatness
Digital products and tooling Design, Verification, Manufacturing, the control of the production process take care of flatness
Values meeting the highest standards. Together with the optimum sliding properties, this will prevent tipping of the products conveyed

Standardization
In case handling a number of different chains are used. Standard chains are used for general conveying of Can, PET, and Glass bottle; High Friction Chains with rubber and super grip top are used for inclines and declines. Chains with rollers are used in lines feeding pallets in order to reduce the back line pressure and noise. The product range allows standardization of case handling conveyors, as a result of the same Sprockets, Track, Return Roller and Wear Strips.
Raydafon offers a complete range of both plastic and steel chains with 84 mm width, intended for the global beverage standard 85 mm pitch between the lanes of multi-lane conveyors. The straight running HSSP84 and the side flexing HSRP84 are companions, running on the same sprockets. The gap between the different tracks/lanes is minimized compared to the traditional 3.25” chains as well as the gap between the links of the chains, to offer superior product handling and minimize the risks of products falling.

When 1000 series Belts are used for straight running conveying; 1060 series with 84 mm wide side flex chains is the ideal product for Combing to use. Even in the case of small turning radius, these chains still have a maximum supporting area and excellent transmission performance. It is suggested that magnetic side flex chain and Track should be used in the case of higher requirements.
Pin – D type
HSSP84, HSRP84, 1060-FT, 1060-FG, 880 TAB chains have the Pin-D type. Once assembled, the pin retention is done by means of geometrical fit instead of mechanical tension on the hinge eyes. This makes the chain less sensitive for attack by chemicals; it also allows assembly and disassembly from both side of the chains and reducing the error.

^{For more types,Please click here!}

We also provide sprockets:https://planetary-gearboxes.en.alibaba.com/productgrouplist-823342095/Sprocket.html

With the experience of more than 10 years, Raydafon is the leading manufacturer and exporter of various Kinds of conveyor components in China. Raydafon is equipped with 20 sets of injection machine and another 20 Sets of processing equipment. All Raydafon conveyor products are exported to over 65 countries and regions, Including Europe, America, South America, Southeast Asia, Middle East and Africa.
Raydafon conveyor products range covers:
--Plastic flat top chains, Flexible Chains, multiplex chains and Case Conveyor Chains;
--Stainless steel flat top chains, conveyor chains and roller chains;
--Plastic sprockets and idler wheels; Stainless steel sprockets;
--Plastic modular belts;
--Various kinds of conveyor components;
--Stainless steel & Plastic Bearing Units;;
--Conveyor Rollers.
Raydafon is always offering customers excellent quality, competitive price, prompt delivery and after-sale Service. Raydafon has large stocks, which makes prompt delivery possible. Raydafon also welcomes production According to customers’ samples or drawings.
Raydafon is pursuing a policy of " Quality first, Service Superior" and committed to meeting the needs of the
The market it serves. Raydafon sincerely hopes to set up business relations with the friends throughout the world
On the basis of friendship and mutual benefits.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
