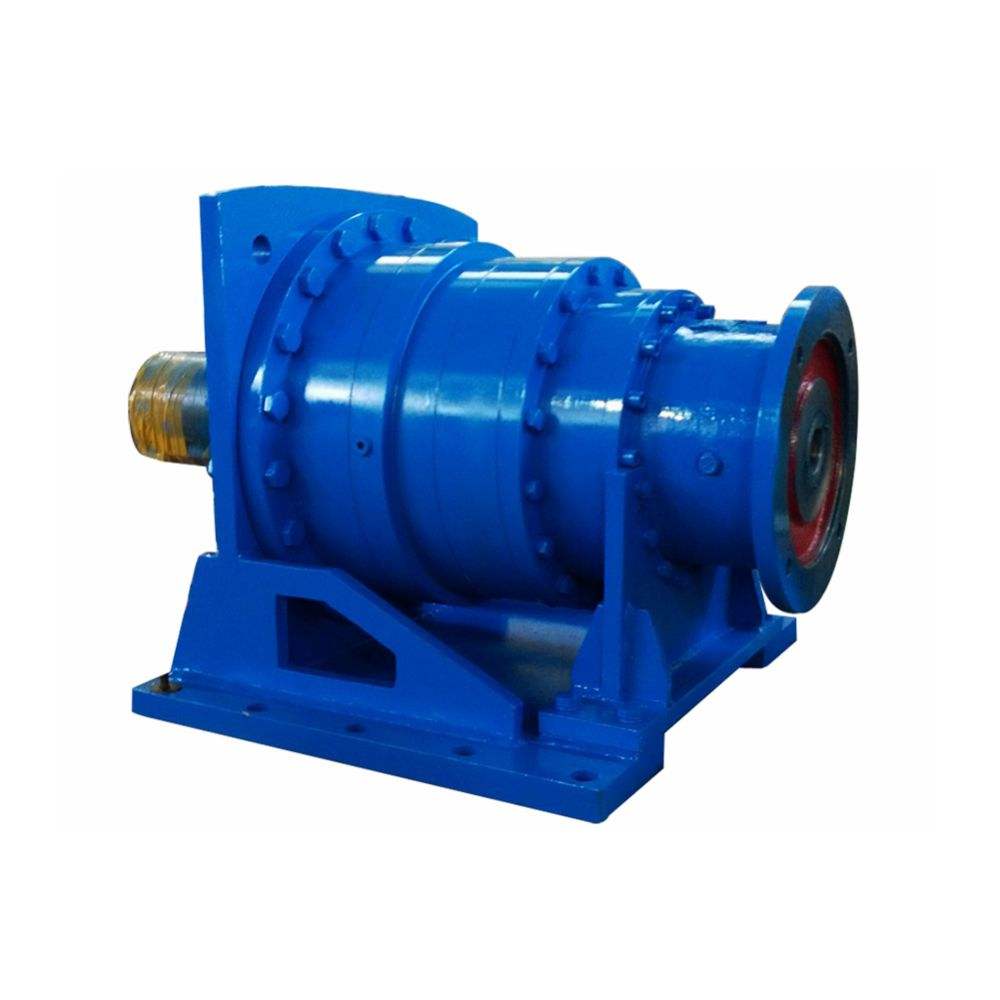

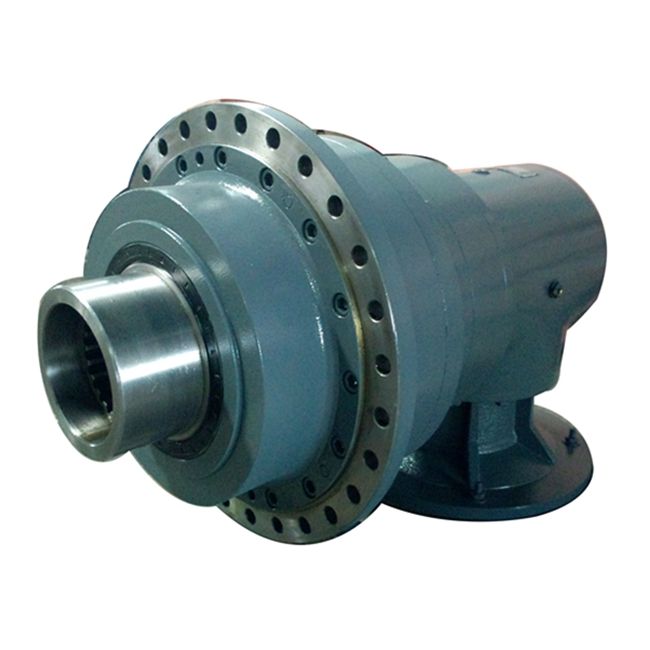

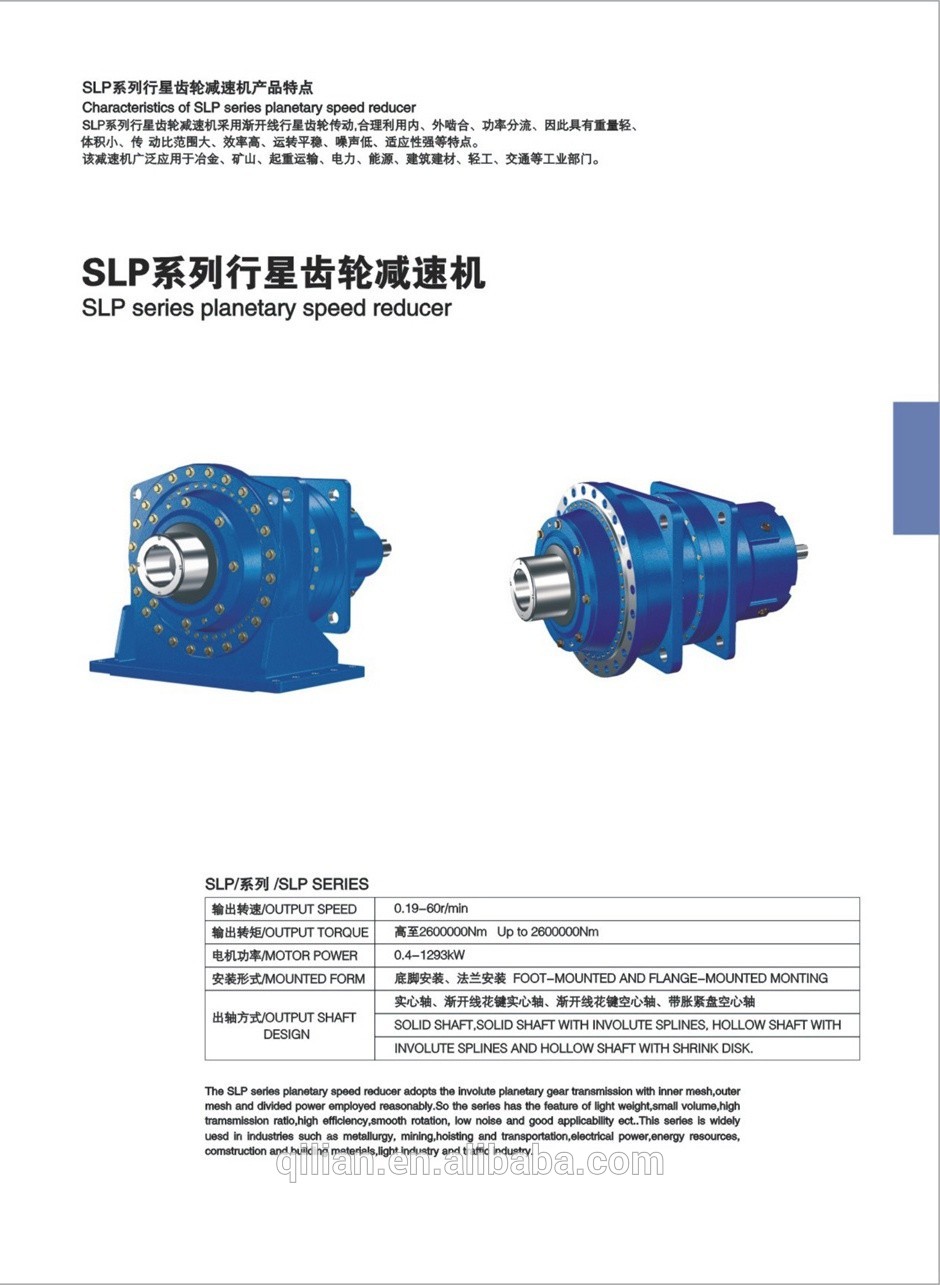

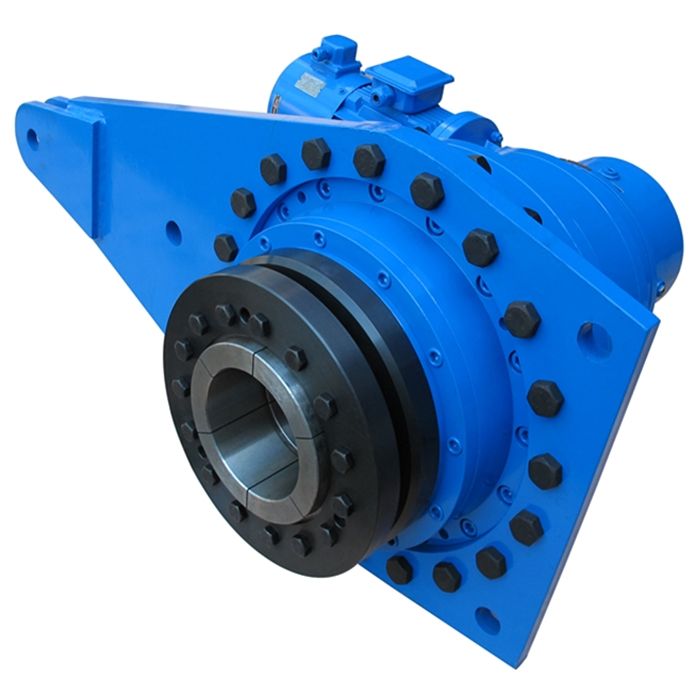

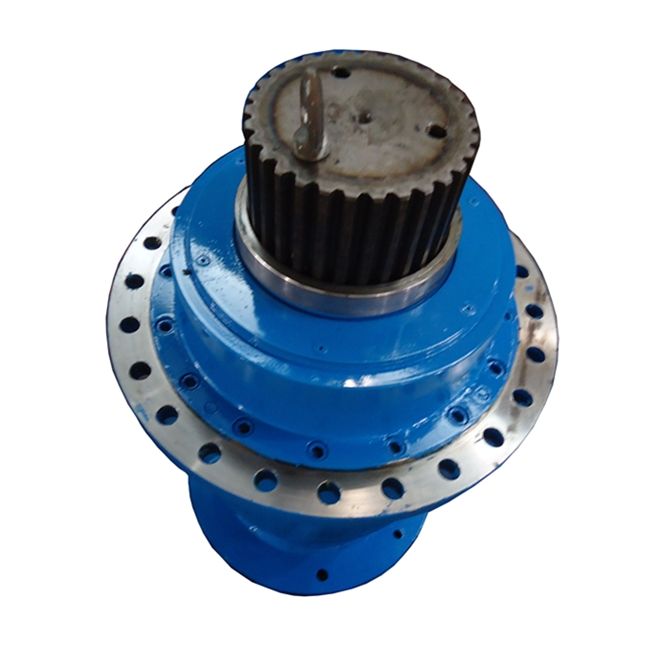

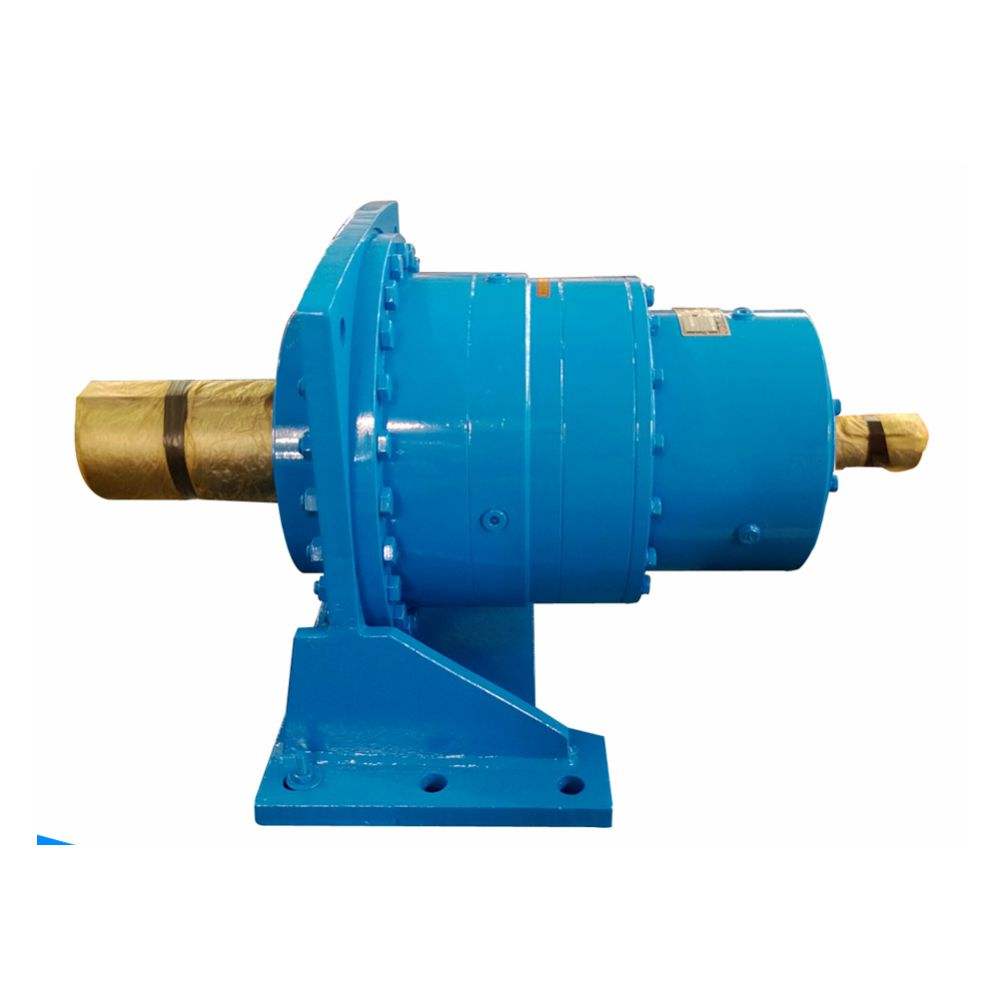

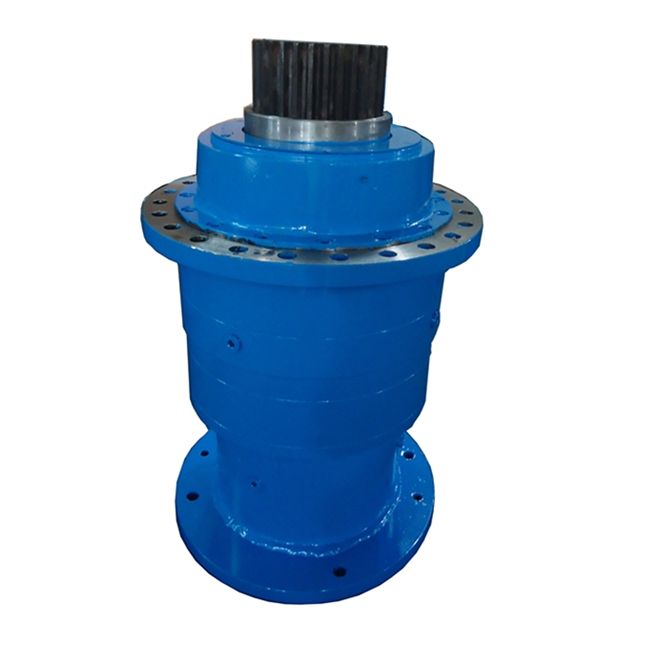

SLP series nonstandard heavy duty high torque planetary gearbox speed reducer for wind turbine
Advantage:
SLP series planetary speed reducer has the features of light weight, small volume, high transmission ratio, high efficiency, smooth rotation, low noise and good applicability.
1) Output speed:0.19~60r/min
2) Output torque: up to 260,000N.m
3) Motor power: 0.4~1293kW
4) Mounted form: foot-mounted ,flange-mounted
Main application:
Mixers / Agitator,Roller presses,Conveyor drives,Shredders ,Filtration technology,Water treatment,Reactors,Travel drives,Feeder,Mill
Housing material | Cast iron/Ductile iron |
Housing hardness | HBS190-240 |
Gear material | 20CrMnTi alloy steel |
Surface hardness of gears | HRC58°~62 ° |
Gear core hardness | HRC33~40 |
Input / Output shaft material | 42CrMo alloy steel |
Input / Output shaft hardness | HRC25~30 |
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
