Tariff-free TH130 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Send Inquiry

Product Description

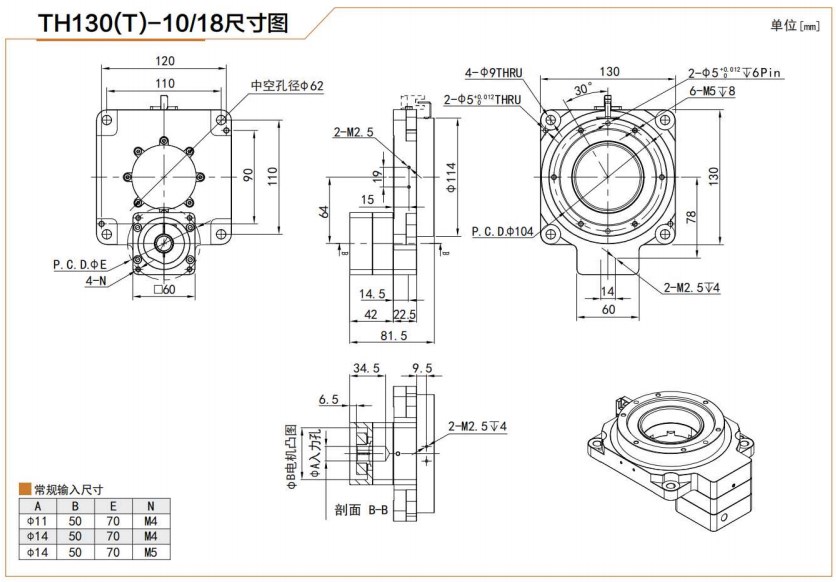

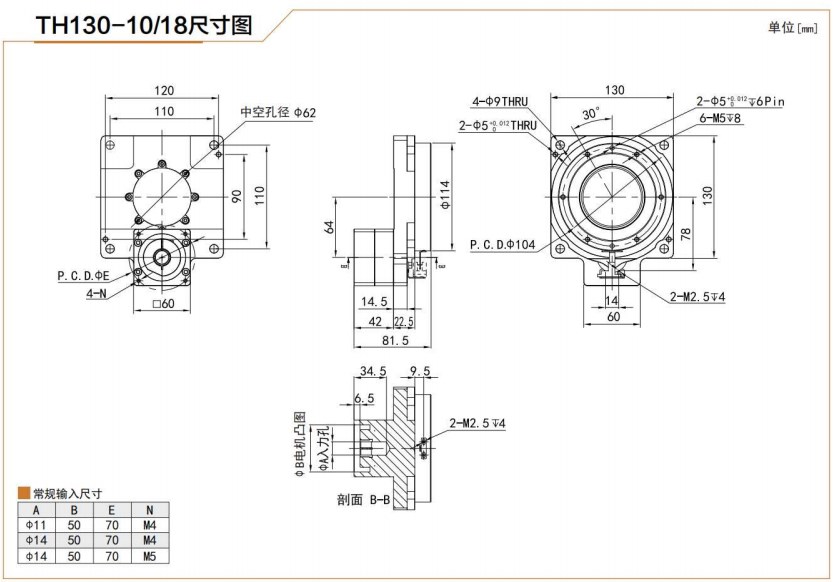

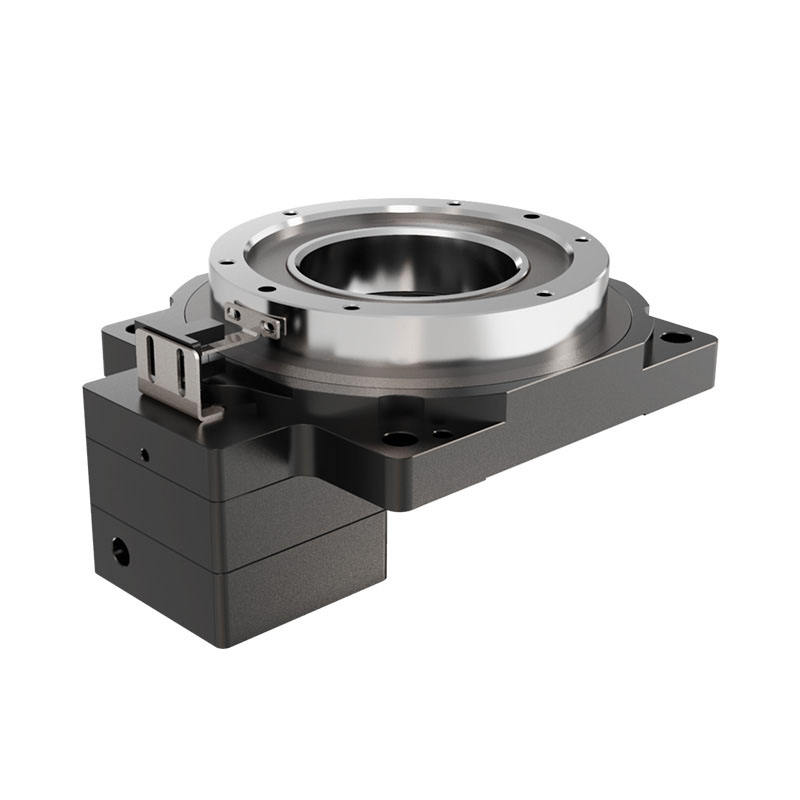

The TH130 Hollow Rotary actuator is a high-performance, compact, and powerful hollow rotary actuator designed to meet the requirements of high torque, high precision, and flexible installation in various industrial automation applications. This actuator adopts advanced planetary gearbox technology, ensuring smooth, precise, and low-noise rotational motion over a full angle range. The TH130 model features a significant hollow shaft design feature, allowing cables, hoses, or drive shafts to pass through its interior, simplifying system integration and achieving a more compact mechanical layout. Its built-in precision bearing system can withstand heavy loads and impact forces, ensuring the durability and reliability of the equipment in harsh working environments.

Specifications	TH130-10 / TH130-18
Reduction ratio	1:10 / 1:18
Allowable torque	78Nm / 52Nm
Adapted motor	200/400W AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	15870*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	130N / 55N
Allowable axial load	2000N
Positioning accuracy	0.5arcmin
Repeated positioning accuracy	5arcsec
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	2.5kg

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
