Tariff-free TH200 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

Send Inquiry

Product Description

The TH200 Hollow Rotary actuator is a high-performance, high torque hollow rotary actuator designed to meet the demands of high load, precise control, and space optimization in industrial automation applications. This product features its unique center hollow shaft design, allowing cables, fluid pipelines, or other transmission components to pass through the shaft, simplifying the installation process and greatly saving space for system integration. The TH200 model adopts precision planetary gearbox technology, providing smooth and efficient torque transmission, ensuring precise and error free rotation positioning throughout the entire angle range. The high-quality bearing system built into this actuator can withstand heavy loads and maintain excellent durability and stability even under harsh working conditions.

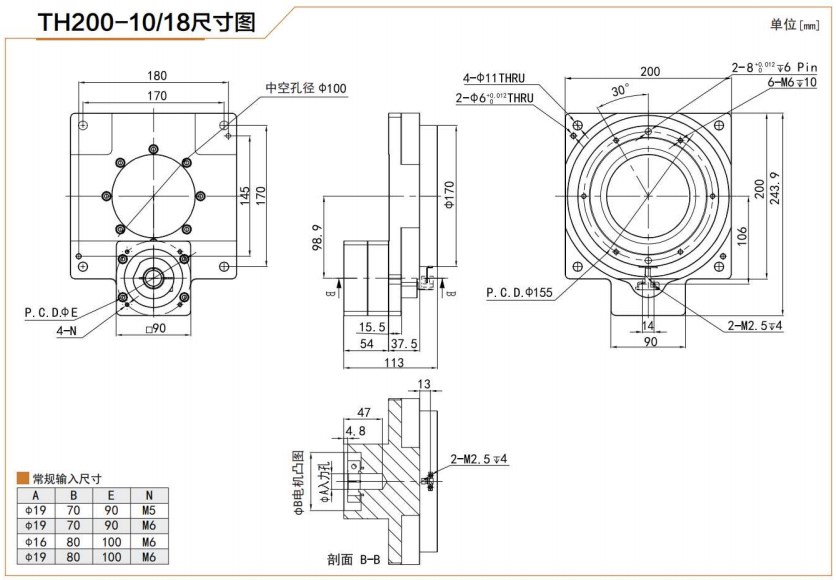

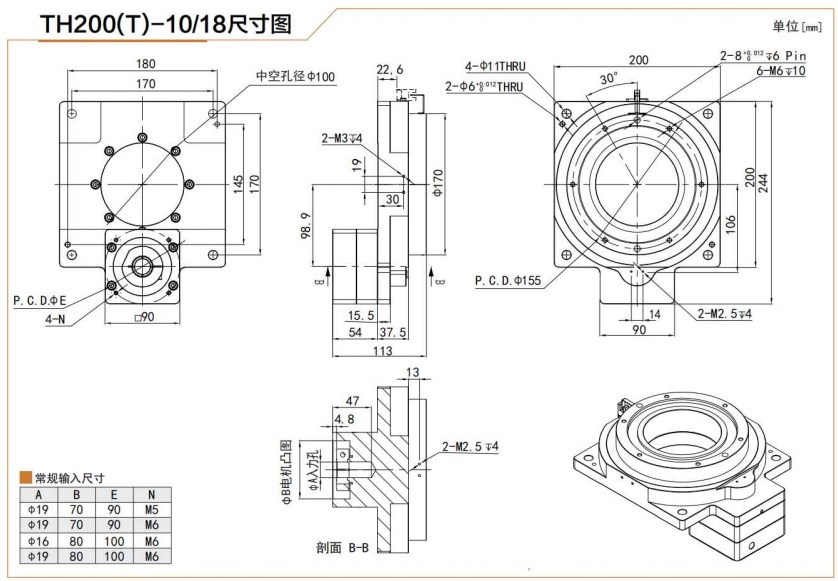

Specifications	TH200-10 / TH200-18
Reduction ratio	1:10 / 1:18
Allowable torque	180Nm / 120Nm
Adapted motor	500/750/100W AC Servo motor
Rotating platform bearings	Cross Roller Bearing
Moment of inertia	108150*0.000001 kg.m²
Permissible speed	200r/min
Allowable inertia load	216N/130N
Allowable axial load	4000N
Positioning accuracy	0.5arcmin
Repeated positioning accuracy	5arcsec
Deviation of rotating platform tabletop	0.005mm
Parallelism of rotating platform	0.015mm
Concentricity of rotating platform	±0.01 mm
Precision lifespan	20000 h
Protection level	IP40
Weight	8kg

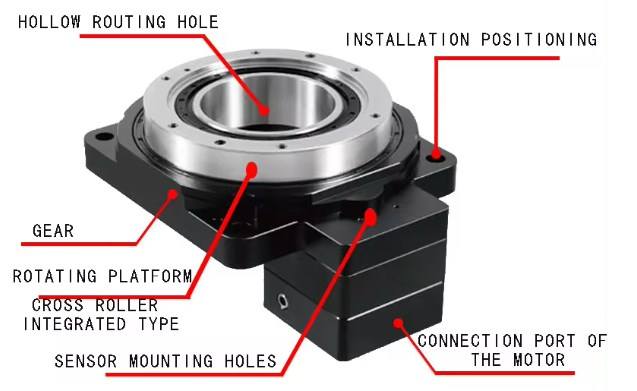

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
