Tariff-free THM085 Hollow Rotary Actuator Rotating Platform Table With High Precision Planetary Gearbox

The Hollow Rotary Actuator (HRA) is an advanced mechanism that specializes in producing rotational motion around a hollow central shaft, offering unique space-saving features for routing cables or fluids internally, along with precision and reliability in various industrial applications.Specificatio......

Send Inquiry

Product Description

Specifications	THM085
Reduction ratio	30/40/50/60/70/80/100
Rated torque	55/50/60/55/50/45/40Nm
Adapted motor	200/400W AC Servo motor
Emergency stop torque	3x rated torque
Rated input speed	5000rpm
Maximum input speed	10000rpm
Return gap	≤1arcmin
Torsional rigidity	7Mn/arcmin
Permissible radial force	1530N
Permissible axial force	765N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	97%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤58dB(A)
Moment of inertia	0.13kg.cm²
Weight	2.5kg

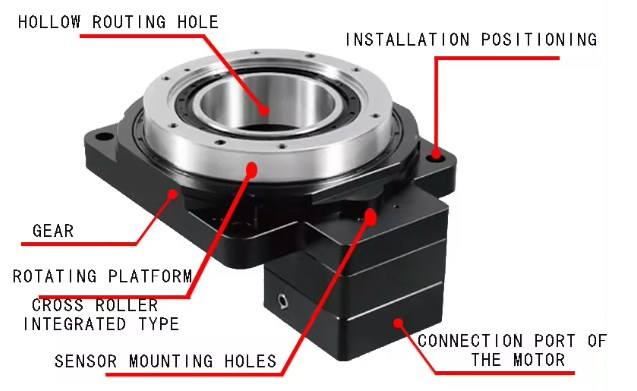

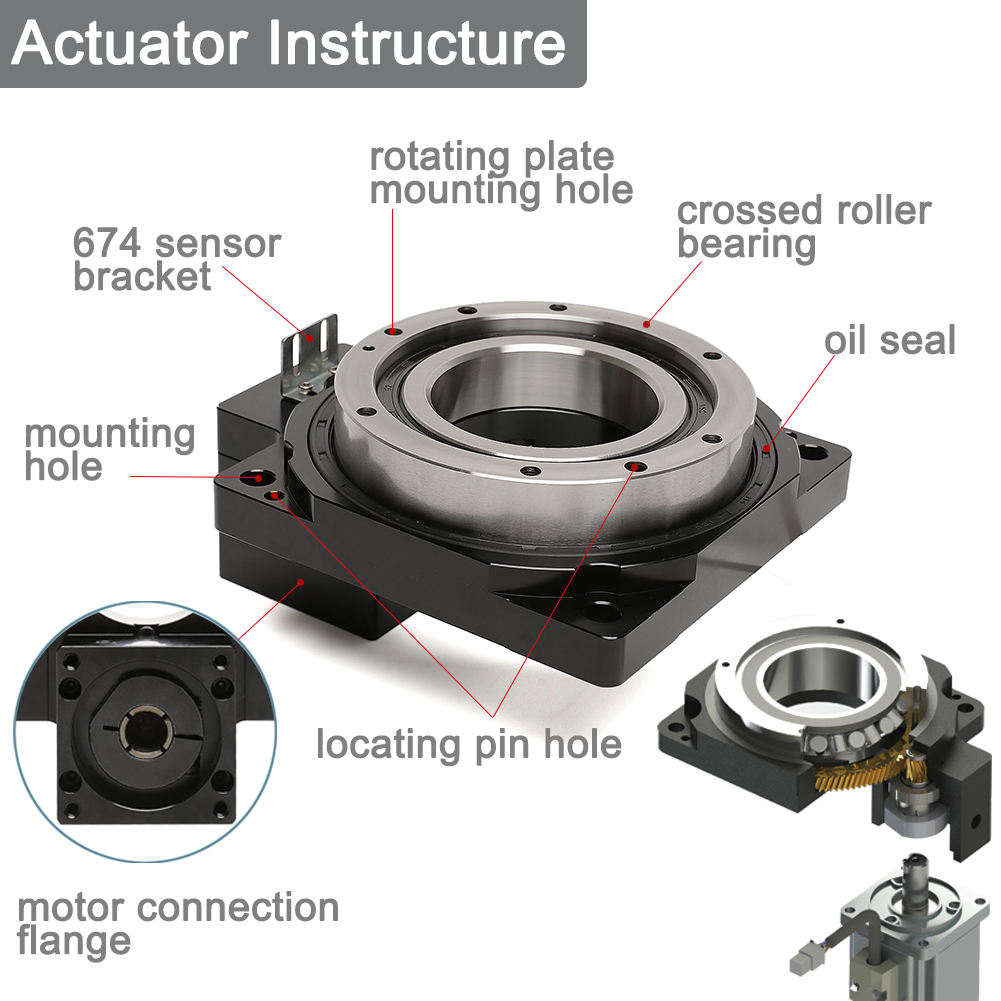

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

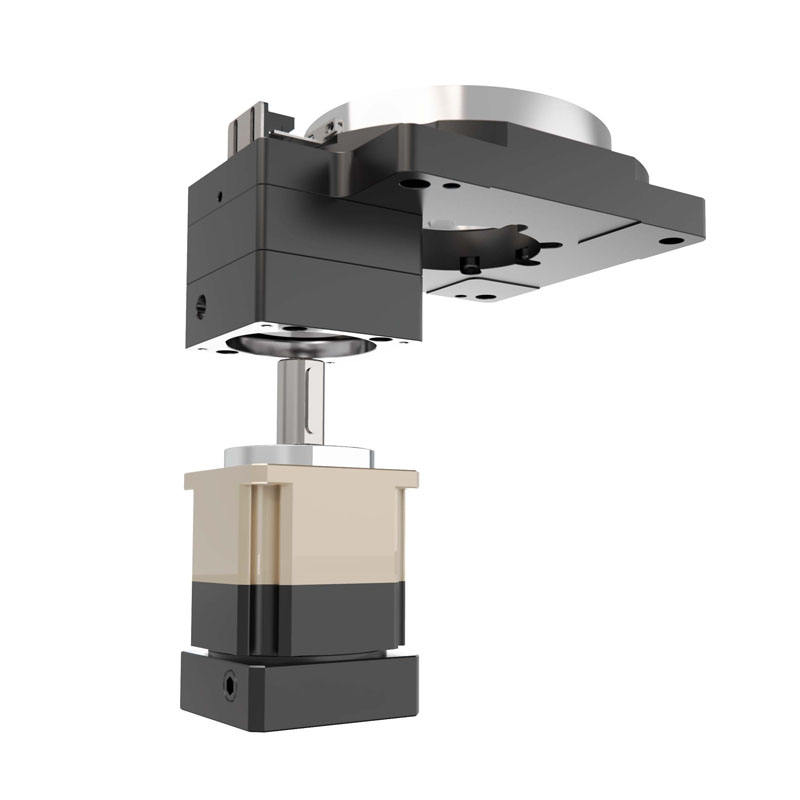

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
