Tariff-free THR200 Hollow Rotary Actuator Rotating Platform Table for High Precision Planetary Gearbox

THR200 Hollow Rotary ActuatorThe THR200 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox, also known as the Hollow RotaryPlatform and Hollow Rotary Table, is a high-precision motion control device with a hollow central axis. This device is used extensively in auto......

Send Inquiry

Product Description

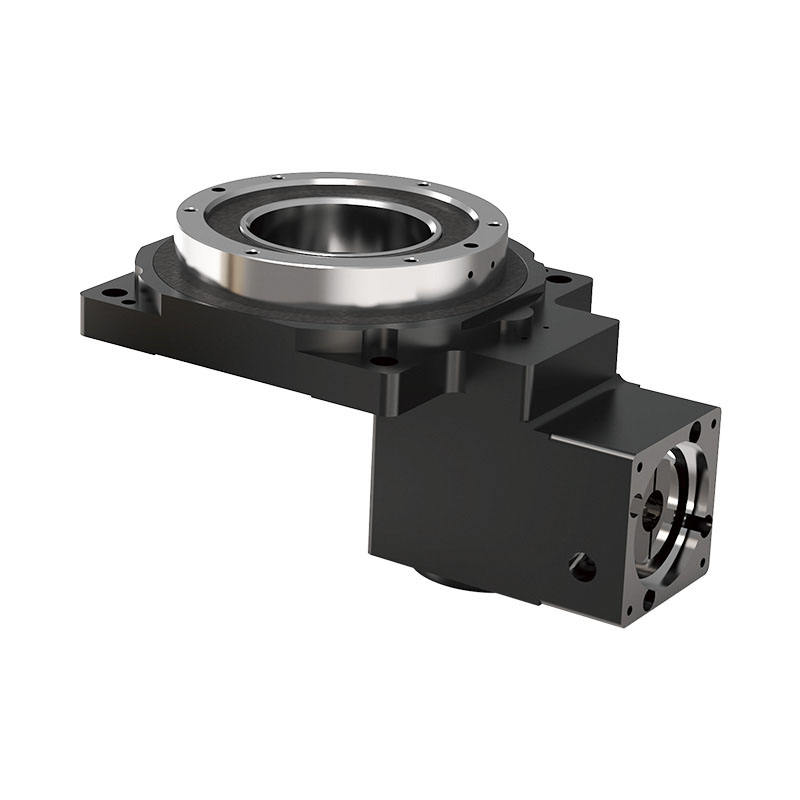

THR200 Hollow Rotary Actuator

The THR200 hollow rotary actuator Rotating Platform Table With High Precision Planetary Gearbox, also known as the Hollow Rotary
Platform and Hollow Rotary Table, is a high-precision motion control device with a hollow central axis. This device is used extensively in automation and motion control applications.

Specifications	THR200
Reduction ratio	10/20/30/50
Rated torque	48Nm
Adapted motor	750/1500W AC Servo motor
Emergency stop torque	2.5x rated torque
Rated input speed	1500rpm
Maximum input speed	20000rpm
Return gap	≤1arcmin
Torsional rigidity
Permissible radial force	1050N
Permissible axial force	550N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	95%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤65dB(A)
Moment of inertia	0.07kg.cm²
Weight	12kg

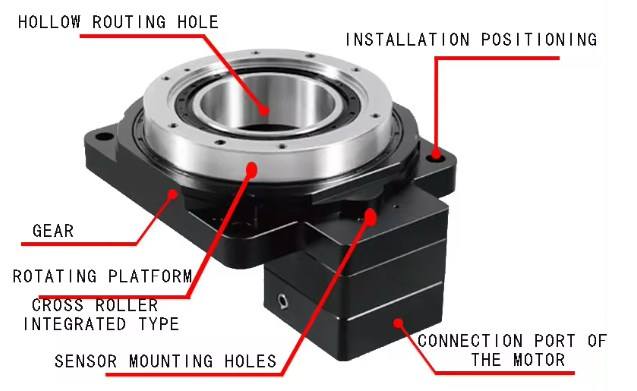

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.

We are a modern enterprise that specializes in the development, production, sales, and service of professional servo electric cylinders, servo press equipment, and other servo stamping equipment. Our company has a professional design team, processing team, assembly team, sales team, and after-sales service team. We mainly research and develop servo cylinders, servo presses, electric push rods, electric slide tables, and multi-degree-of-freedom platforms. Our company always adheres to the business philosophy of "integrity, sincerity, stability, and compliance", and always strives for excellence in design, manufacturing, and service.
