Tariff-free Transmission CA Type Agricultural Chain Made in Vietnam

CA627 CA550D CA555D CA557D CA620D CA2062H Steel Conveyor CA Type Agricultural ChainThis corn head gathering chain assembly fits Fantini corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA627 chain that is assembled using special high-strength heat-tre......

Send Inquiry

Product Description

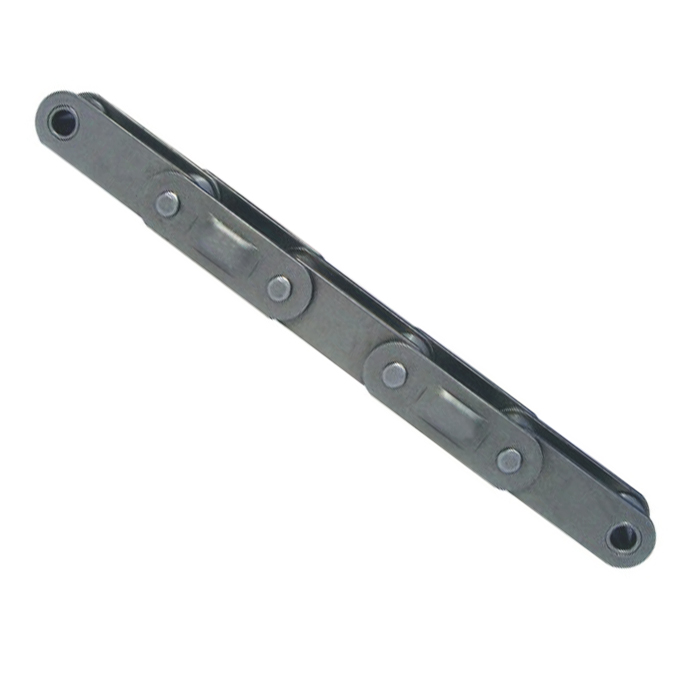

CA627 CA550D CA555D CA557D CA620D CA2062H Steel Conveyor CA Type Agricultural Chain

This corn head gathering chain assembly fits Fantini corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA627 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. These chains are made with chrome pins which can make them last twice as long. It has seven (6) CPEF2 attachments/ gathering lugs that are spaced every 15.35" and it is 78 links long, which is 92.12" total.

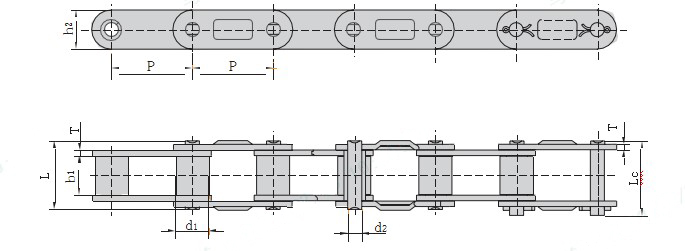

	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length			Plate dimension			Ultimate tensile strength
Chain No	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min
Chain No		mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf
CA627	30.00	15.88	19.05	8.28	36.1	39.4	20.5	3.00	50.00/11247
CA550D	41.40	16.87	19.81	7.19	35.0	38.0	19.3	2.80	39.10/8886
CA555D	41.40	16.87	12.70	7.19	29.1	32.0	19.3	3.10	39.10/8886
CA557D	41.40	17.78	20.24	8.00	37.4	40.6	23.1	3.10	55.61/12639
CA620D	42.01	17.91	24.51	7.19	41.8	45.2	20.2	3.25	39.10/8886
CA2062H	38.10	22.23	12.57	5.94	29.2	31.6	18.0	3.25	31.10/6992

C80F3 OR Pitch: 25.4mm
Roller diameter: 15.88mm
Width between inner plates:15.78mm
Pin diameter: 7.92mm
Pin length: L36.6mm Lc 38.7mm Plate depth: 24.0mm Plate thickness: 3.25mm Ultimate tensile strength: 56.7/12886 kN/lbf Average
tensile strength: 69.4kN

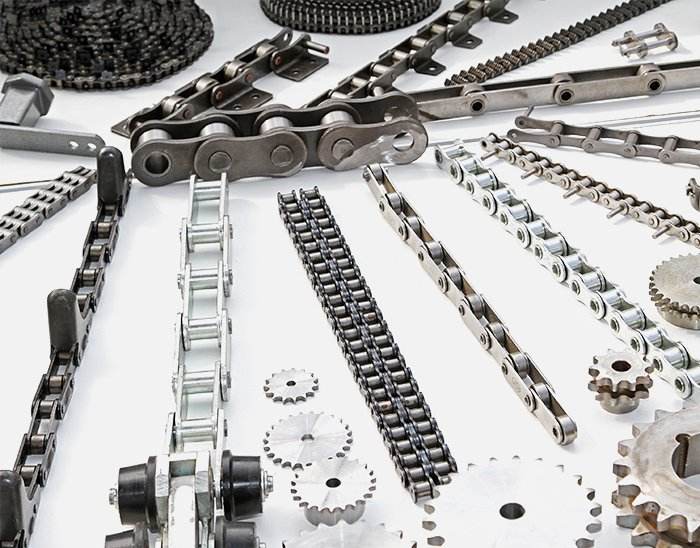

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you.
We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
