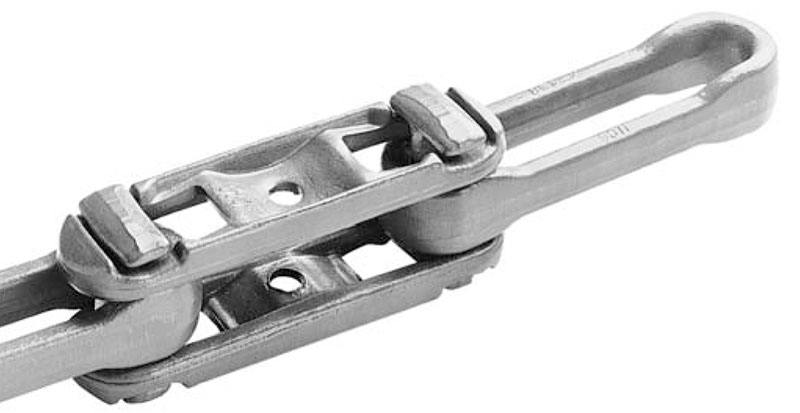

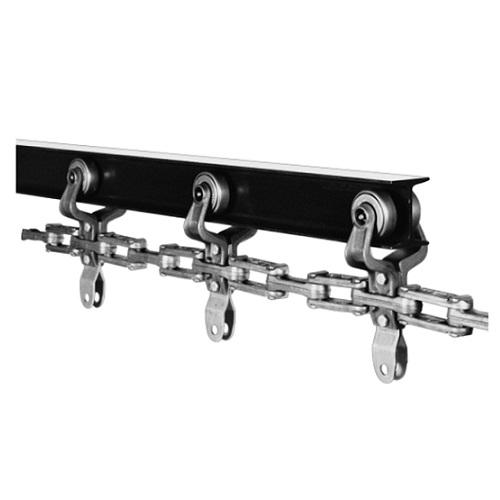

Tariff-free X348 X458 X678 Drop Forged Rivet-less Overhead Conveyor Chain for Grain Machines Made in Vietnam

Chain NumberNominal PitchActual PitchPin DiameterPin LengthOther DimensionsUltimate Tensile StrengthPDLABCEQ3483"3.02"0.50"1.81"1.1"0.52"0.74"0.55"24750 lbs76.2mm76.6mm12.7mm46mm28mm13.2mm18.5mm14mm110 KN4584"4.03"0.625"2.244"1.42"0.63......

Send Inquiry

Product Description

Chain Number

Nominal Pitch

Actual Pitch

Pin Diameter

Pin Length

Other Dimensions

Ultimate Tensile Strength

348

3.02"

0.50"

1.81"

1.1"

0.52"

0.74"

0.55"

24750 lbs

76.2mm

76.6mm

12.7mm

46mm

28mm

13.2mm

18.5mm

14mm

110 KN

458

4.03"

0.625"

2.244"

1.42"

0.63"

0.69"

47250 lbs

101.6mm

102.4mm

15.88mm

57mm

36mm

16mm

25.4mm

17.5mm

210 KN

678

6.03"

0.87"

3.03"

0.83"

1.26"

0.98"

85500 lbs

152.4mm

153.2mm

22mm

77mm

50.8mm

21mm

32mm

25mm

380 KN

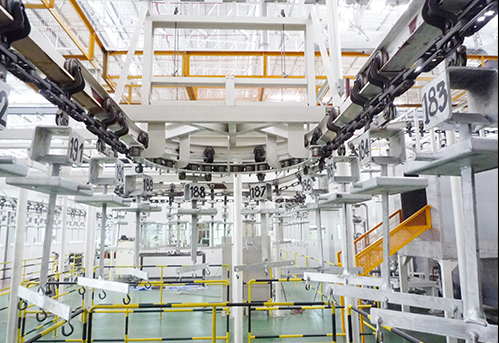

Application of rivet-less overhead conveyor chain

Rivet-less overhead conveyor chains, also known as rivetless chain systems or X-type chains, are commonly used in various industrial applications that require efficient and reliable material handling. Here are some typical applications of rivet-less overhead conveyor chains: 1. Automotive Industry: Rivet-less overhead conveyor chains are extensively used in automotive manufacturing plants. They are employed for transporting automobile components, such as engines, transmissions, chassis, and body parts, throughout the assembly lines. These chains are capable of carrying heavy loads and can withstand the demanding production environments found in automotive manufacturing facilities. 2. Food and Beverage Industry: In the food and beverage industry, rivet-less overhead conveyor chains are widely utilized for conveying packaged products, such as bottles, cans, boxes, and cartons. They are designed to meet the sanitary requirements of the industry, with features like stainless steel construction and smooth surfaces that facilitate easy cleaning and prevent contamination. 3. Warehousing and Distribution: Rivet-less overhead conveyor chains are employed in warehousing and distribution centers to efficiently move goods and materials. They are used for tasks like order picking, sorting, and transporting items across different areas of the facility. These chains can handle various loads, including boxes, pallets, and containers, making them suitable for managing the logistics and material flow within warehouse operations. 4. Manufacturing and Assembly: Manufacturing and assembly processes in industries such as electronics, appliances, furniture, and machinery often rely on rivet-less overhead conveyor chains. These chains facilitate the movement of components, sub-assemblies, and finished products between different workstations or assembly lines. They enable efficient production flow, reduce manual handling, and enhance productivity. 5. Material Handling and Storage: Rivet-less overhead conveyor chains are utilized in material handling and storage applications, such as bulk handling systems and storage facilities. They are used to transport bulk materials, such as grains, aggregates, powders, and chemicals, in a continuous and controlled manner. These chains can handle heavy loads and operate in environments with high temperatures, making them suitable for demanding material handling applications. 6. E-commerce and Parcel Delivery: With the growth of e-commerce and parcel delivery services, rivet-less overhead conveyor chains are employed in distribution centers and sorting facilities to handle the flow of packages and parcels. They enable automated sorting, routing, and distribution of packages, optimizing the order fulfillment process and improving operational efficiency. These are just a few examples of the applications where rivet-less overhead conveyor chains are commonly used. The versatility, durability, and efficient material handling capabilities of these chains make them suitable for a wide range of industries that require reliable and cost-effective conveyor systems.

Please click on the photos below to visit their websites.

We also provide sprockets:https://planetary-gearboxes.en.alibaba.com/productgrouplist-823342095/Sprocket.html?spm=a2700.shop_index.88.65

We have more than 10 years of production experience ,professional equipment and workers.

We are specialized in manufacturing transmission and conveyor roller chains in China.
We also can produce all kinds of non-standard roller chain according to your drawing.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

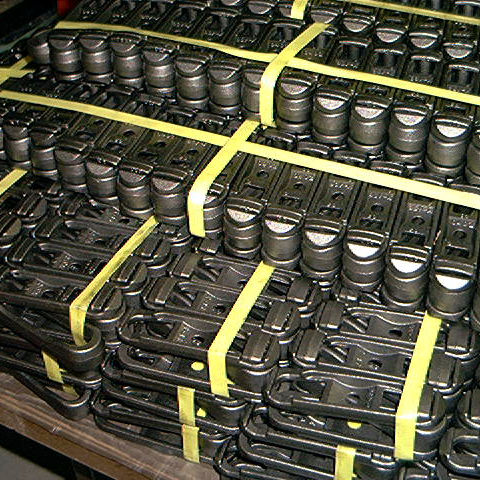

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
