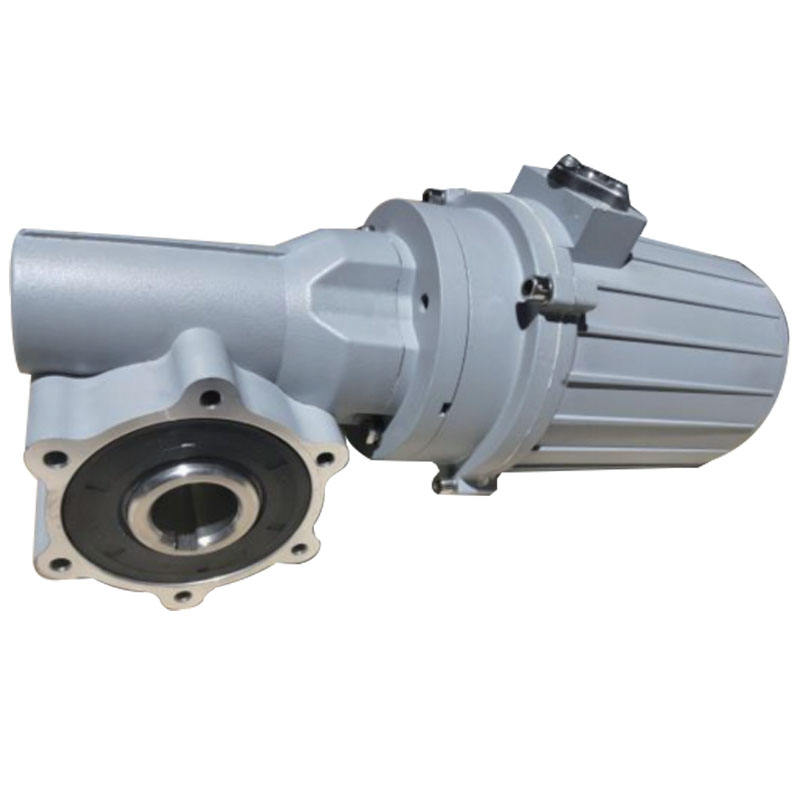

Tariff-free XRV/MRV050 Series Worm Gear Reducer Washing Gearbox for Automatic Car Wash Machine With IP67 Motor

XRV050 seriesXRV050 series reducer for automatic car washer is a special worm gear reducer used forauto car washer, which has the advantages of easy installation, low noise, long life and highprotection class. The protection level can reach IP56. The supporting motor power can be0.25kw-075kw, and ma......

Send Inquiry

Product Description

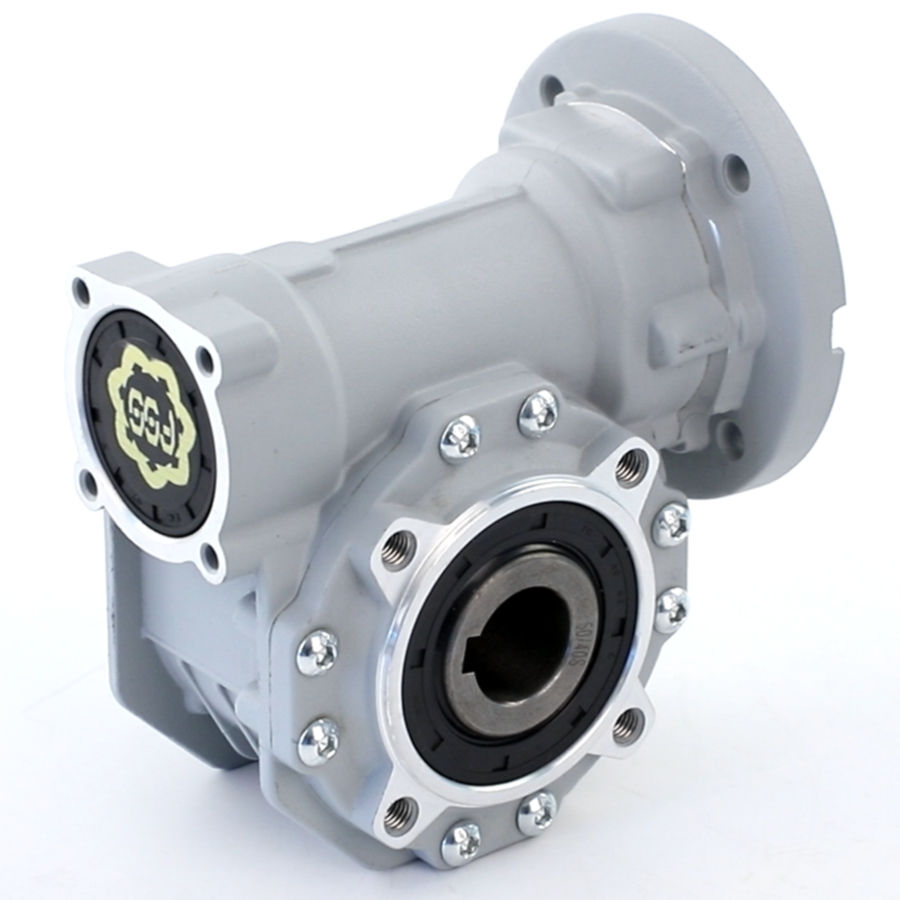

XRV050 series

XRV050 series reducer for automatic car washer is a special worm gear reducer used forauto car washer, which has the advantages of easy installation, low noise, long life and highprotection class. The protection level can reach IP56. The supporting motor power can be0.25kw-075kw, and matching flanges, to meet the different needs of customers.

Features:

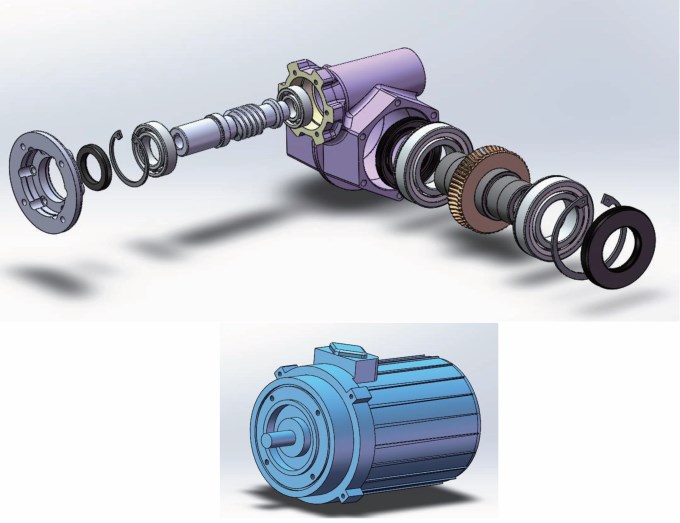

1.Modular design for each module, with more common components

2.Wide range of gear ratios, with more gear ratio options than general models;

3.Wheels material is SUS304+Gcusn12, to ensure the high wear resistance and corrosion resistance

4.The body structure is compact and compact, making it easy to install in multiple environments;

5.Long life lubrication with fully synthetic oil (S1 lubricant, viscosity 320; B2 lubricant, viscosity 220)

6.Die cast aluminum ADC12 body, surface sprayed with plastic, good corrosion resistance, beautiful and practical;

7.NOK oil seal at the input and output ends to ensure sealing performance;

8. The worm material is 20 Crmnti carburized and quenched, with a hardness of HRC58-62. The carburized layer thickness after refinement is 0.25-0.45mm;

9. Protection level IP67, suitable for various indoor and outdoor use scenarios and harsh working conditions

Type	Ratio	Flange	Power
XRV050	65/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100	71b14	0.25kw/0.37kw/0.55kw
XRV050	65/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100			80b14	0.55kw/0.75kw

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

XRV050 series

Type	Ratio	Flange	Power
MRV050	5/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100	71b14	0.25kw/0.37kw/0.55kw
MRV050	5/7.5/10/12/15/16/20/25/30/40/50/52/60/80/100			80b14	0.55kw/0.75kw

Motor

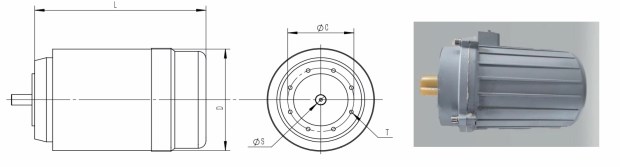

IP67 motor

Type	L	D	φC	φS	T
71B14	180	120	85	14	M6
80B14	205	135	100	19	M6

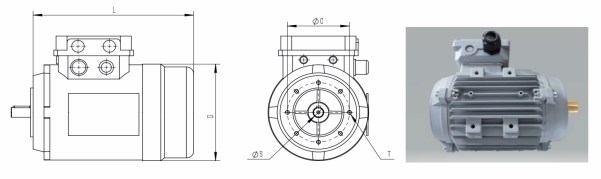

IP56 motor

Type	L	D	φC	φS	T
71B14	190	140	85	14	M6
80B14	215	158	100	19	M6

Click Here for more types!
