THG200 Hollow Rotary Actuator Servo Motor for High Precision Planetary Gearbox Tariff-Free for Machinery Industries

Send Inquiry

Product Description

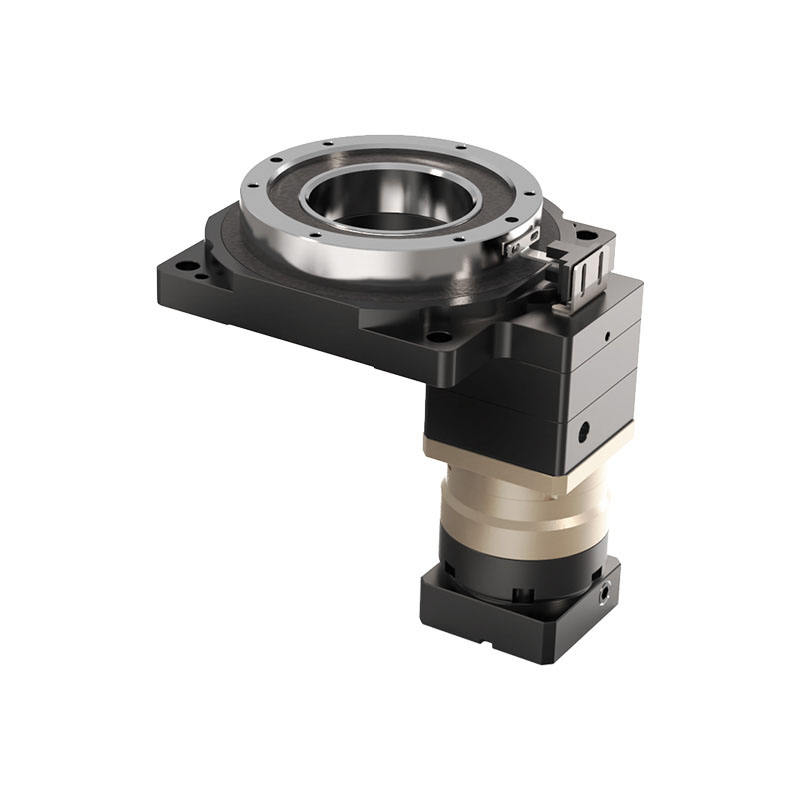

The THG200 hollow rotary actuator high-precision planetary gearbox rotary platform is a rotary actuator with a hollow core, allowing cables, fluid pipelines, or other necessary components to pass through the center of the actuator without affecting its own rotation. It is also known as a hollow rotating platform and a hollow rotating platform. This product features a high-precision planetary gearbox, which is widely used in various applications due to its compact design and high torque output.

Specifications	THG200(i)
Reduction ratio	30/40/50/70/80/100
Rated torque	130/140/160/140/120/100Nm
Adapted motor	750W AC Servo motor
Emergency stop torque	3x rated torque
Rated input speed	4000rpm
Maximum input speed	8000rpm
Return gap	≤1arcmin
Torsional rigidity	14Mn/arcmin
Permissible radial force	3520N
Permissible axial force	1625N
Service life	20000hr (Continuous operation reduces service life by 50%)
Transmission efficiency	97%
Working temperature	-10-+90℃
Protection level	IP65
Lubrication	synthetic lubricating oil and grease
Noise	≤60dB(A)
Moment of inertia	0.48kg.cm²
Weight	11.7kg

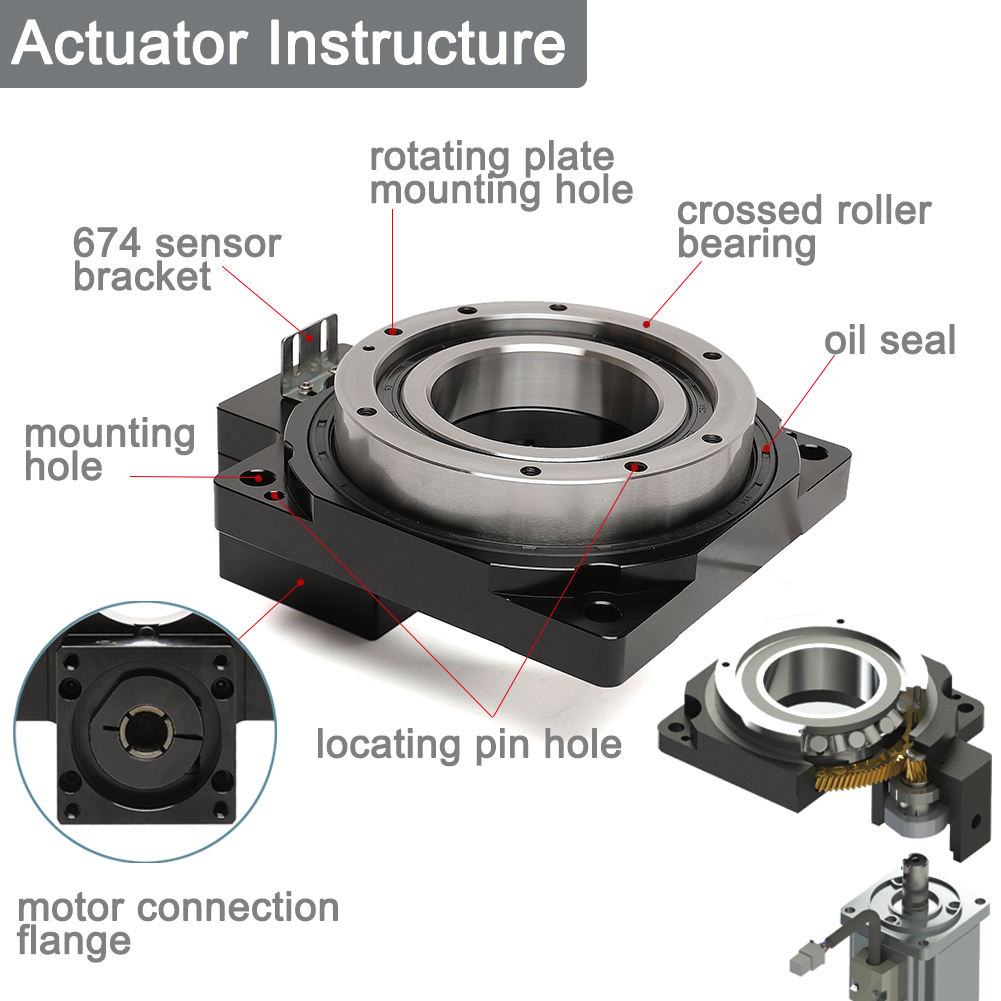

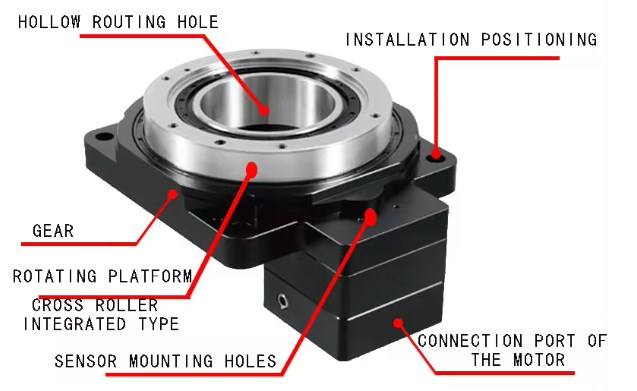

Basic Structure of the Hollow Rotary Actuator

1.Cross roller bearings: provide high stiffness and precise rotational support.

2.Precision gears: torque amplification and speed control are achieved through transmission devices such as planetary gears.

3. Input installation flange: Connect the motor or other drive source to ensure stable power transmission.

4.Input shaft: transmits the rotation of the motor to the internal gear system and may be designed hollow for passing through cables or pipelines.

5.Induction device: such as an encoder, used for real-time detection and feedback of actuator position information, achieving precise control.
