1BZ-2.5 disc harrow agricultural machine with 26 inch disc
:
: .
Main products : disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.
1BZ Series of Hydraulic offest Disc Harrow Agriculture Machine is suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming, it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The Disc Harrow can cultivate the soil instead of plow.
1BZ-2.5 specification is as following :
| Model | 1BZ-2.5 |
| Working width | 2500mm |
| Working depth | 200-250mm |
| Size of harrow disc blade | 26'' (660mm) x 5mm |
| No. of harrow disc blade | 24pcs |
| Weight | 1500kg |
| Macthed power | 100-120hp |
| Square shaft size | 40*40mm, shaft with heat treatment |
| Bearing | RSP sealed bearing pedestal ,with oi hole |
| No. of tires | 2pcs |
| Type of tires | 7.50-16 , this tires is wlaking effect |
| Linkage | Hydraulic trailed with tractor |
Yucheng Hongri Heavy disc harrow Advantages is as following :
1.Harrow disc : 26'' diameter by 5mm thickness , made of 65Mn Spring Steel , the hardness is 38-46hrc, good toughness and high wear resisting .
2. Square shaft : 40*40mm , made of 45# steel ,with tempering and quenching , so our shaft can not broke.
3. Disc harrow main frame produced with 120*120*6mm tube , it is strong to use .
4. The disc harrow with sealed bearing pedestal , with oil hole , easy to maintain.

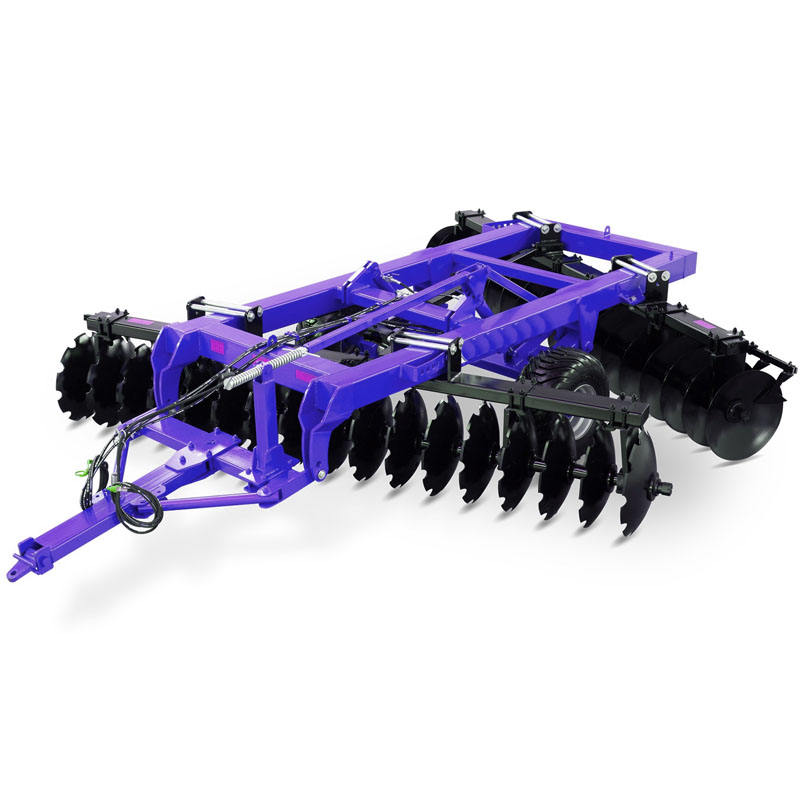

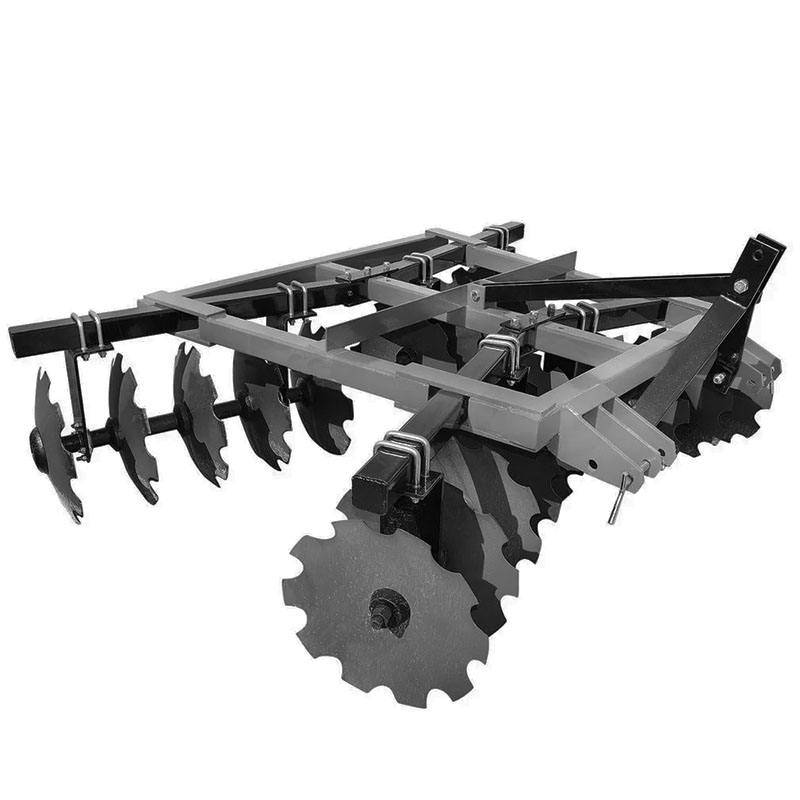

1BZ-2.5 , 24pcs heavy duty disc harrow real picture :

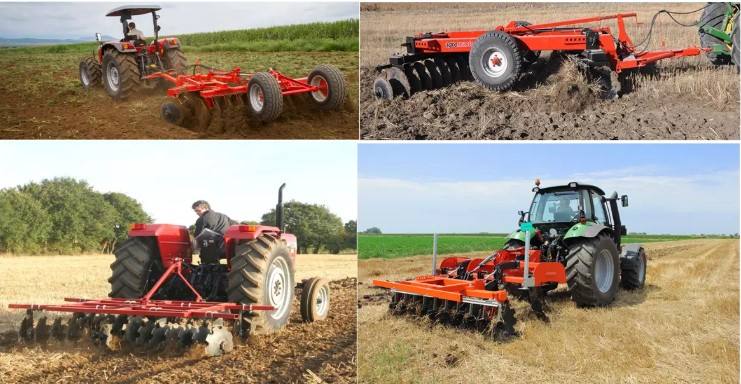

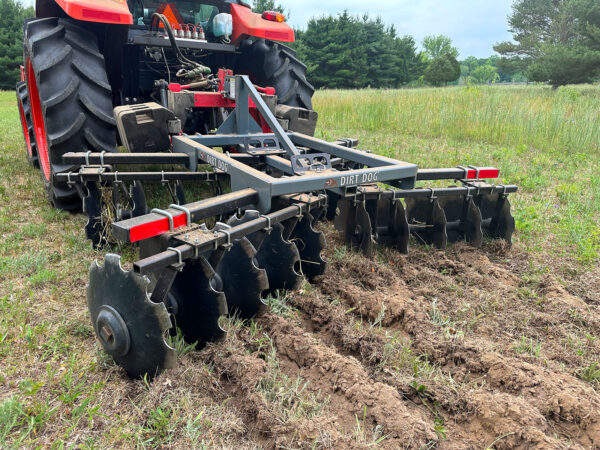

Four wheel Tractor rear three pointed mounted heavy duty disc harrow real factory pciture is as following :
-Delivery time: after confirm order,within 15 days.
-Payments items: As usual, it is30% depositafter confirm order andbalance 70% before shipment.

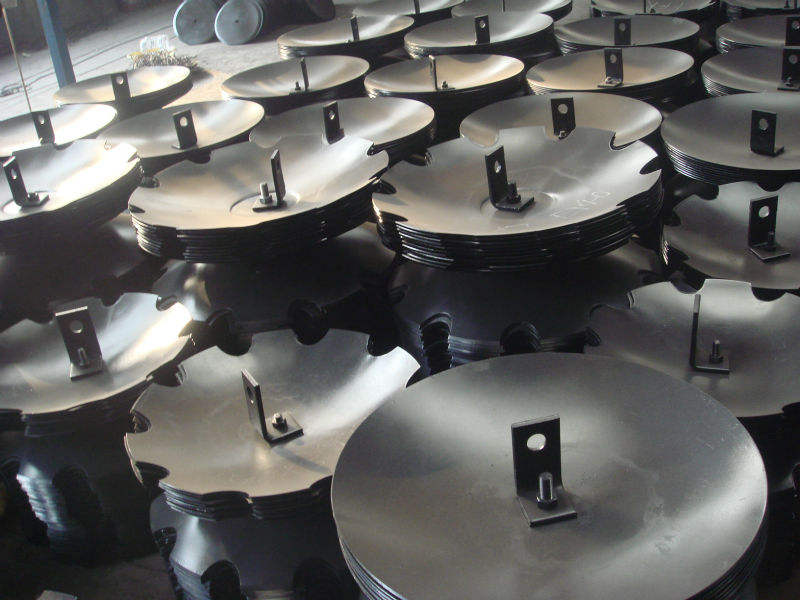

-Disc blade material: Boron steeland65Mn steel.
- We are able to following yourdrawingorsampleto machining.
