Vietnam Agricultural Farm Greenhouse Valley Automatic Sprinkling Gearbox for Center Pivot Irrigation System Tariff-free

Expand under high temperature and pressure to minimize water condensation.American made and case hardened input and output bearings provide the highest quality and load rating in the industry.Worm gear high strength ductile iron provides longer wear life than steel when combined with cast iron gear.......

Send Inquiry

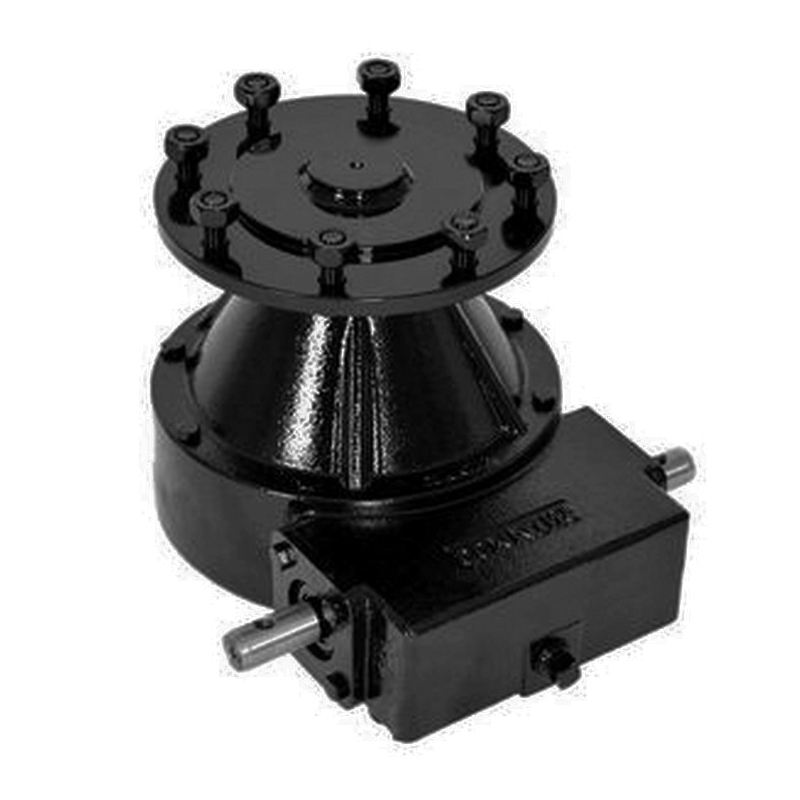

Product Description

Expand under high temperature and pressure to minimize water condensation.

American made and case hardened input and output bearings provide the highest quality and load rating in the industry.

Worm gear high strength ductile iron provides longer wear life than steel when combined with cast iron gear.

Compared with the normal 14 1/2 ° tooth design, the unique 25 ° tooth angle in the tooth design industry provides 40% longer life and better reliability under adverse conditions.

The largest large gear journal and keyway provide strength in the critical load-bearing area.

The expansion chamber cover is made of corrosion-resistant cast aluminum; The rubber diaphragm allows the oil to expand and contract during operation. The vent cap prevents pressure build-up and seals from leaking.

Threaded end caps allow precise bearing preload to extend bearing life.

52:1 transmission ratio full concave tooth design keeps the meshing gears lubricated.

High strength cast iron for large gears provides the highest bearing capacity and longest service life in the industry. Optional bronze gears are available for extreme conditions.

Multi viscosity gearbox oil exceeds 85w140 Gl5 oil, which is suitable for long gear wear under extreme load conditions.

Click here for more models and latest quotations!

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

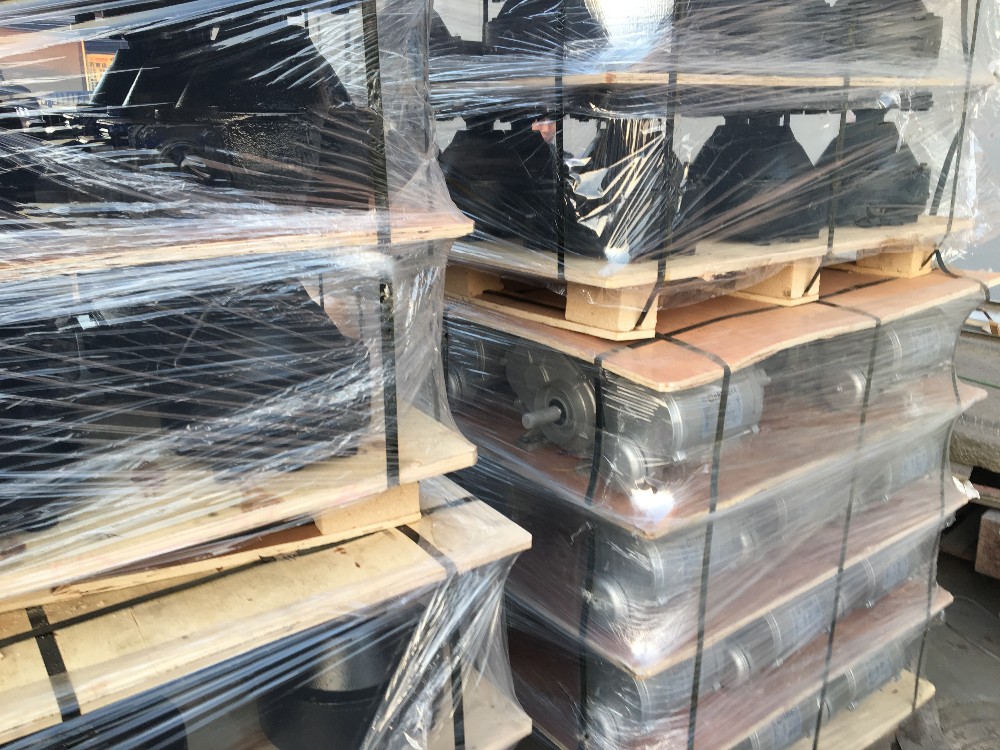

Packaging
Size	120 (L) * 100 (W) * 700 (D)
Weight	0.8 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
