Agricultural Machinery Spring Trip Cultivator Shank For Sudan
Connect person:Lyna zhang , whatsApp : 0086 15165936190

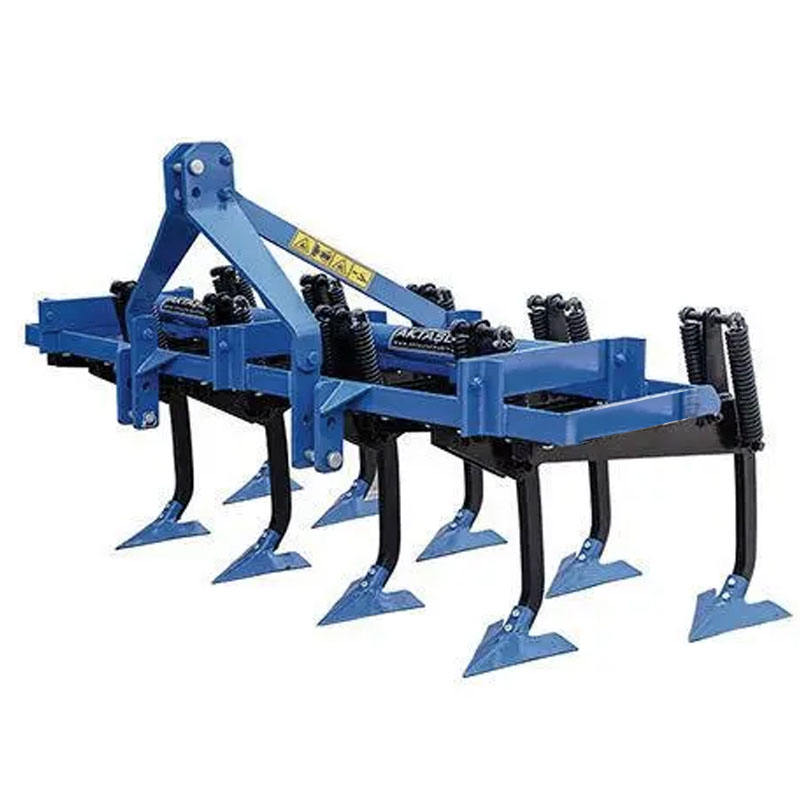

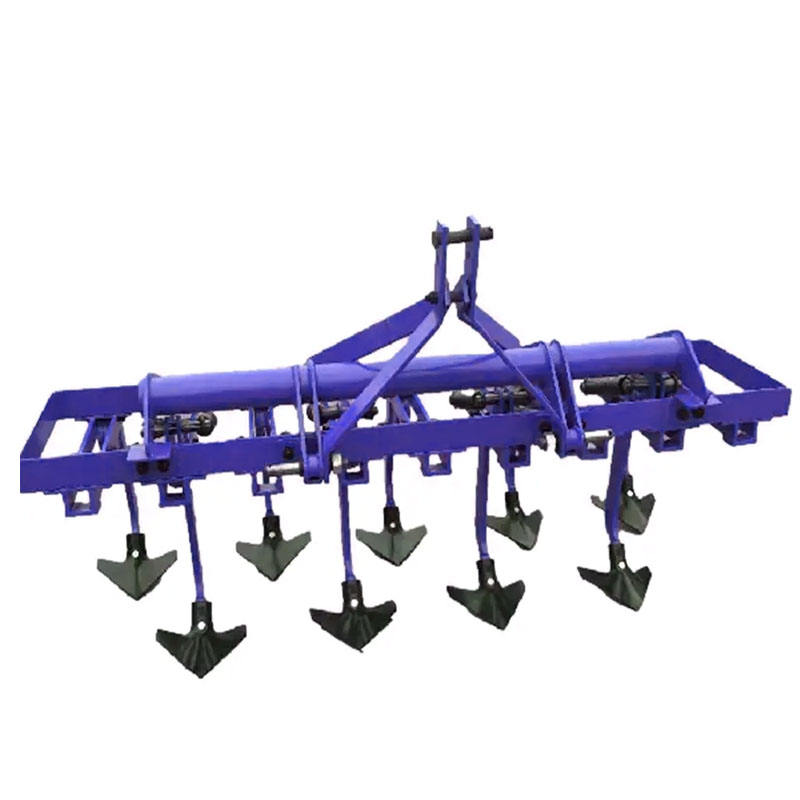

As a novel farm 9 tines spring tines spring cultivator developed by our company according to the demand of the international market, 3ZT dual-farm 9 tines spring tines spring cultivator adopts a dual-spring straining device.
During the working process of the farm 9 tines spring tines spring cultivator, the gunnel can automatically kick up when coming across an obstructer and can restore to the original working status after getting over the obstructer. In this way, the gunnel is under protection.
The machine has the advantages of convenient row pitch adjustment and easy depth adjustment.
The machine is suitable for intertillage ripping operation in corn, cotton, beans and peas fields.
25mm thickness leg with boron steel break shovel .
Every leg with 2pcs spring to protect .
3ZT series spring cultivator specification is as following :
You can choose the matched model according to your tractor horse power.
Model | 3ZT-1.0 | 3ZT-1.4 | 3ZT-1.8 | 3ZT-2.2 |
Working width | 1000mm | 1400mm | 1800mm | 2200mm |
No. of tines | 5pcs | 7pcs | 9pcs | 11pcs |
Working depth | 100~200mm | |||
Total weight | 260kg | 300kg | 350kg | 420kg |
Matched power | 25hp | 30~40hp | 40~50hp | 50~70hp |
3ZT-1.0 spring cultivator with 5pcs tine leg .
3ZT-1.4 spring cultivator with 7pcs tine leg .
3ZT-1.8 spring cultivator with 9pcs tine leg .
3ZT-2.2 spring cultivator with 11pcs tine leg .
3ZT-2.6 spring cultivator with 13pcs tine leg .
Product package :
1. Frame will be packed in pallet
2. Cultivator all parts expect frame can put into iron case .
Company Information :
Hangzhou Raydafon Machinery Co.,Ltd.is a professional manufacturer of plough disc harrow blade for Farm Tractor Land Cultivators .There is an existing advanced production line of forging,casting ,machining ,heat treatment in the company.
Our company has been a reliable and excellent manufacturer of disc harrow blade for Farm Tractor Land Cultivators, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
