Vietnam Attractive Price W 2300 Series Walterscheid Replacement PTO Shaft Tariff-free

W 2300 Series PTO Shaft Replacement of WalterscheidLength: 1410mmEnd 1:1 3/8 "6 spline yokeEnd 2:1 3/8 "6 spline K34 clutch 100NmPipe: 0v/1Protection: SD15Maximum dynamic capacity 540 rpm: 28 kW, 500 NmMaximum dynamic capacity 1000 rpm: 44 kW, 415 NmValue at working angle of 5 ° and s......

Send Inquiry

Product Description

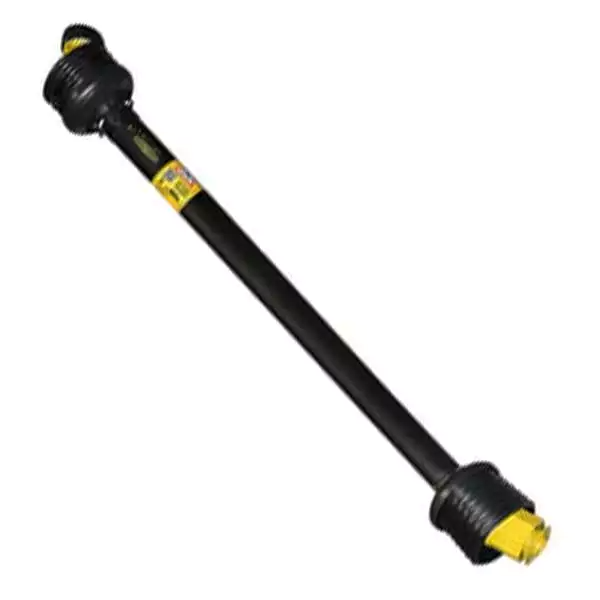

W 2300 Series PTO Shaft Replacement of Walterscheid

Length: 1410mm End 1:1 3/8 "6 spline yoke End 2:1 3/8 "6 spline K34 clutch 100Nm Pipe: 0v/1 Protection: SD15 Maximum dynamic capacity 540 rpm: 28 kW, 500 Nm Maximum dynamic capacity 1000 rpm: 44 kW, 415 Nm Value at working angle of 5 ° and service life of 1000 hours LZ=sliding length from intersection to intersection (unit: mm)

Specification of W 2200 series PTO shaft

Application range	* Mowers * Harvesters * Seeders
Properties	* Tractor-side 1–3/8" (6) shaft collar kit * Lubrication interval from 50 to 100 hours * Fulfills EC 89/392 EEC requirements * Complies with EN12965 safety standard * CE marking available
Consists of	* Semi clutch axle with shielding * Declaration of conformity * Instruction manual

How long should I have my PTO shaft Power take-off (PTO) is an important part of tractor transmission and farm equipment. This shaft transfers mechanical power from the tractor engine to the implement mounted behind it. The size of the PTO shaft needs to be correct to prevent damage or injury. Taking the time to ensure the proper shaft size can make the equipment run smoothly and safely, thus saving you money in the long run. It is important to understand the different types of PTO shafts available and how they work with your agricultural equipment. Depending on the task of the machine, you can select a specific type of shaft suitable for work and protect it from unnecessary pressure, impact or tension. There are two types of PTO shafts: hydraulic shaft and mechanical shaft. They come in a variety of sizes and lengths, so you need to decide which device is best for you. Hydraulic PTO shaft For farmers who need hydraulic power for tractors, hydraulic PTO shaft is a good choice. These devices are easy to install and suitable for various tractors. They are designed for use with high-power tractors and can be used at speeds up to 1000 rpm. They are also durable and can handle various tasks. This type of PTO shaft is suitable for rotary ploughs, pulverizers and other heavy equipment. It adopts yoke to yoke arrangement, so the shaft moves smoothly without sudden stop or resistance. It has a robust design with integrated safety chain and shield. It is made of high-quality steel and has anti-rust coating to ensure its durability. Danger of mechanical wrapping point The tractor power take-off (PTO) drive shaft is identified as a mechanical winding point hazard when the PTO is completely unshielded. This is a very common type of accident, which can cause serious injury or death, especially for children. Case 1: A child fell off his father's tractor and was caught by the rotating shaft, and died unfortunately. He was unable to get out of the shaft and suffered serious head, arm and leg injuries. PTO drive shaft is an integral part of many farm machines, but it may cause serious danger if used improperly or protected improperly. This may be caused by many factors, including improper operation and maintenance. When using PTO powered machinery, it is important to follow the manufacturer's instructions and safe working methods. This is the only way to minimize the risk of injury or death caused by entanglement. In order to maintain the operation and safety of the equipment, the PTO shaft must be properly lubricated. This applies especially to universal joints, yokes and shields on shafts. Regular lubrication of them helps prevent premature wear. The correct shaft length will help to minimize the mechanical stress and load, and help to prevent the damage of the connecting points, connecting shafts and implements. This will ensure that your equipment is in optimal operation and will continue to be a valuable asset for your business.

PTO control on agricultural tractors transmission The simplest and earliest form of PTO is the gearbox PTO. The PTO shaft is directly connected to the tractor's transmission. The PTO works only when the tractor clutch is disengaged, so if the tractor is put into gear while decelerating, the PTO will stop working. This is a disadvantage in applications such as lawn mowing. The transmission PTO usually requires an overrunning clutch. Without it, the driven device (such as the mower blade) will apply force to the PTO shaft due to inertia, and then apply force to the transmission. This device will "drive" the tractor. You can still move using the tractor's drive clutch. The PTO overrunning clutch prevents this by allowing the PTO shaft to rotate freely in one direction. In recent models, this is built into the tractor. In older tractors, it is an additional device installed on the PTO shaft. Live (two-stage clutch) The live PTO operates using a two-stage clutch. Depressing the clutch halfway will separate the transmission, while fully depressing the clutch will separate the transmission and PTO. This allows the operator to slow down or shift gears while the PTO is still running. independent Independent PTO means that the PTO shaft is controlled by a separate clutch. Like the live PTO, this allows full control of the tractor while controlling the PTO separately. There are two main types of independent PTO; Mechanical and hydraulic. In addition to the PTO lever, the mechanically independent PTO also uses a separate switch selector. Generally, the tractor must be stopped or turned off to change this selector position. The hydraulic independent PTO uses a single selector. PTO shaft of agricultural gearbox Tractors, combine harvesters, harvesters and other agricultural equipment use PTO shafts. These components bear high loads and stresses, so it is important to find out the cause of their initial failure. Continuous compression of the shaft will damage the connecting shaft, even the tractor and implement. The PTO shaft of agricultural gearbox is an integral part of agricultural implements or tractors. The PTO shaft of the agricultural gearbox is fixed with safety guards at both ends, which can be found on implements and tractors. The PTO shaft can be welded to the drive end through the universal joint, and the rear shaft can be directly welded to the tractor.

Why choose us? 1. Engaged in agricultural machinery manufacturing and sales for more than 20 years. 2. "ever power" and "HZPT" are produced in China. 3. Certification 4. Strict quality control to provide customers with the best service. 5. We can provide high-quality and fast after-sales service. 6. Our goal: win-win. We can design and produce machines according to customers' needs. 8. We have developed dozens of replacement parts for Japanese tractors, and we can deliver these parts with the machine.

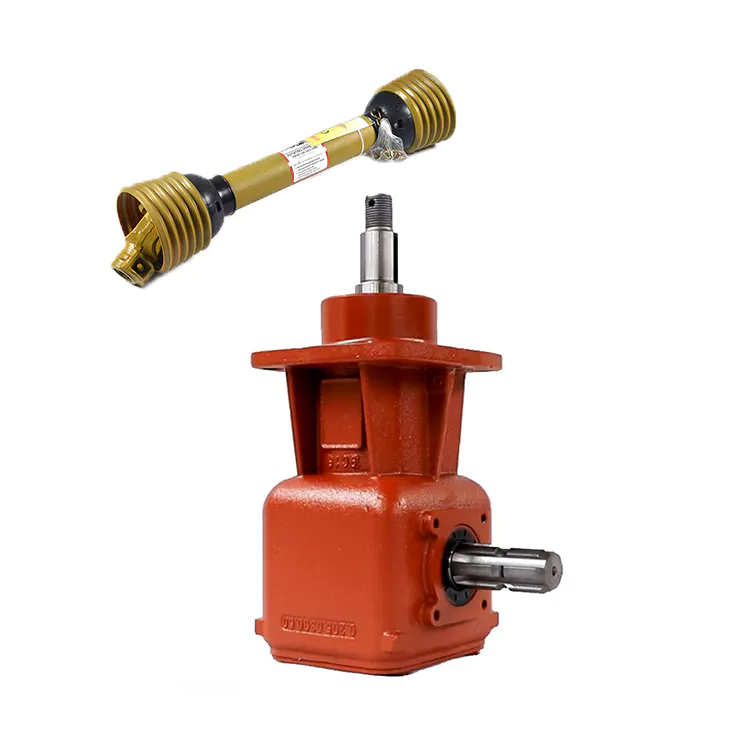

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
