Vietnam Best Manufacturers SA Series Ratchet Torque Limiter Tariff-free

A ratchet torque limiter is a device able to interrupt the transmission of power in the event of a torque peak or overload that exceeds the setting. The torque limiter is automatically re-engaged after the cause of the overload is removed. Ratchet torque limiters are generally employed to protect im......

Send Inquiry

Product Description

SA1 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
1SA1	400	1 3/8" Z6	138	21
2SA1					138
3SA1					149
4SA1					150

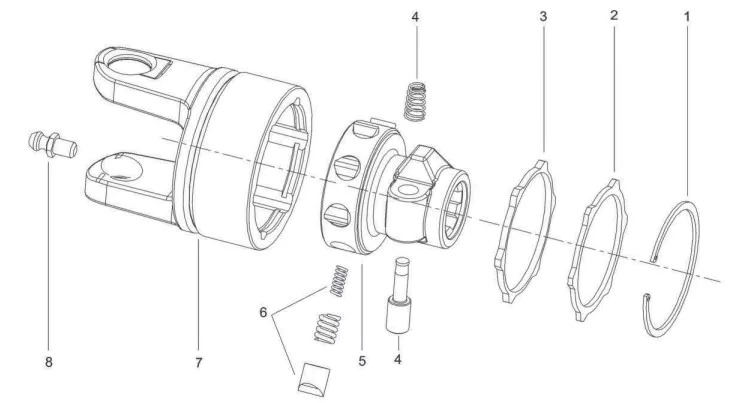

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=8)
7. Housing with yoke
8. Grease nipple

SA2 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
1SA2	800	1 3/8" Z6	156	21
2SA2					156
3SA2					167
4SA2					168
5SA2					172
6SA2					178
7SA2					189
7NSA2					175
8SA2					189

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=16)
7. Housing with yoke
8. Grease nipple

SA3 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
2SA3	1200	1 3/8" Z6	171	22
3SA3					182
4SA3					183
5SA3					187
6SA3					193
7SA3					204
7NSA3					190
8SA3					204

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=24)
7. Housing with yoke
8. Grease nipple

SA4 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
5SA4	1600	1 3/8" Z6	206	22
6SA4	1600	1 3/8" Z6			212	22

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=32)
7. Housing with yoke
8. Grease nipple

SA5 Series Ratchet Torque Limiter

Series	Max Torque(Nm)	Spline	A(mm)	B(mm)
6SA5	2000	1 3/8" Z6	231	22

1. Circlip
2. Retaining washer
3. Dust guard ring
4. Pushpin kit
5. Hub
6. Pawl kit(Qty=40)
7. Housing with yoke
8. Grease nipple

We also supply PTO Shaft & Agricultural gearboxes
If you are interested, you can click here: https://hzpt.com/agricultural-pto-shaft/

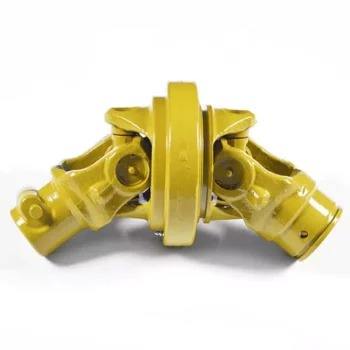

Wide Angle Joint Manufacture
