Vietnam Competitive Price Triangular End Yoke for PTO Shaft Tariff-free

Triangular End Yoke for PTO ShaftCode For U-JointFor example1. One end yoke2. The series of cross kit3. The other end YokeDo you need to replace a worn or broken yoke in your PTO shaft assembly? Raydafon is your fully stocked source for PTO implement yokes you can trust with your ag equipment. We ca......

Send Inquiry

Product Description

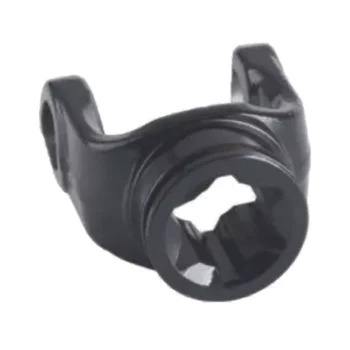

Triangular End Yoke for PTO Shaft

Code For U-Joint
For example

1. One end yoke
2. The series of cross kit
3. The other end Yoke

Do you need to replace a worn or broken yoke in your PTO shaft assembly? Raydafon is your fully stocked source for PTO implement yokes you can trust with your ag equipment. We carry a broad assortment of Weasler yokes for the North American, Italian, and German series. Choose from hundreds of parts and multiple spline count options. Our customer service team is available to assist you with product selection and to provide reliable technical support.

Engineered for precision and durability, Raydafon end yokes help to minimize noise and vibration to keep your driveline running smoothly. In addition, Raydafon driveshaft end yokes are:
* Forged from hardened steel
* Heat treated to endure tough conditions
* Engineered a precise fit
* Direct replacement - this differential end yoke matches the fit and construction of the original yoke
* Excellent value - this replacement end yoke offers original equipment quality at a fraction of the price of dealer parts
* Quality materials - this end yoke is machined from cast iron for strength and is precision machined for reliability
* Validated fit - this differential end yoke has been tested to confirm an accurate fit
* Ensure fit - to make sure this part fits your exact vehicle, input your make, model, and trim level into the garage tool

Part of PTO Shaft
Internal Yoke- There are two, located at both ends of the PTO shaft -tractor and implement. This is welded to the drive end.
Universal Joint- There are two, located at both ends of the PTO shaft.
External Yoke- There are two, located at both ends of the PTO shaft. It has a “Y” shape to connect to the U-joint and a female hole.
Safety Chains- The chains are used to secure the PTO shaft onto the equipment and onto the tractor.
Safety Shield- These cones are found on both ends.

1	23			45
Cross	Joint simple			Splined yoke	Tube yoke			Tube

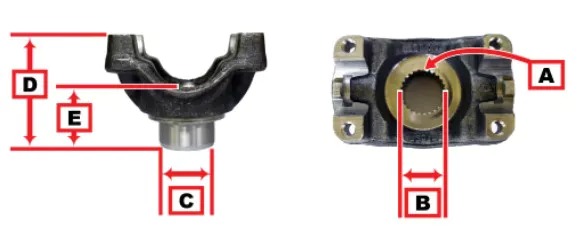

How to Measure an End Yoke

A.) Spline Count

B.) Spline Outside Diameter (from the farthest point to the farthest point)

C.) Hub Outside Diameter

D.) Overall Height

E.) Through Hole

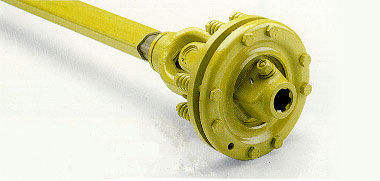

We also supply PTO shaft.

End Yoke's Production Workshop
>Forging production lines: 6
>Main equipment:
Double disk friction press:1000t, 630t, 400t, 300t 11 units,
Bar cutting machine: 3 units,
Medium frequency heating furnace: 4 units
Box heating furnace: 4 units
CNC milling machine: 3 units
CNC lathe: 10 units
CNC machining center: 2 units
>Apply industry: auto parts, tractor, tool manufacturing, textile machinery, mining, and other industries
>Main products: Crankshaft, hardware parts, shafts, gears, petroleum machinery parts, connecting rods, high-pressure valve bodies,knuckles, etc.
