Vietnam Custom High Quality Weasler 6 Series PTO Shaft Replacement Tariff-free

PTO Shaft Replacement Of Weasler 6 SeriesConstant power and high performance PTO drive shaft is the most important drive shaft solution in agriculture and lawn industry. The constant power PTO drive shaft is a complete assembly from the tractor to the implement. They are designed for continuous heav......

Send Inquiry

Product Description

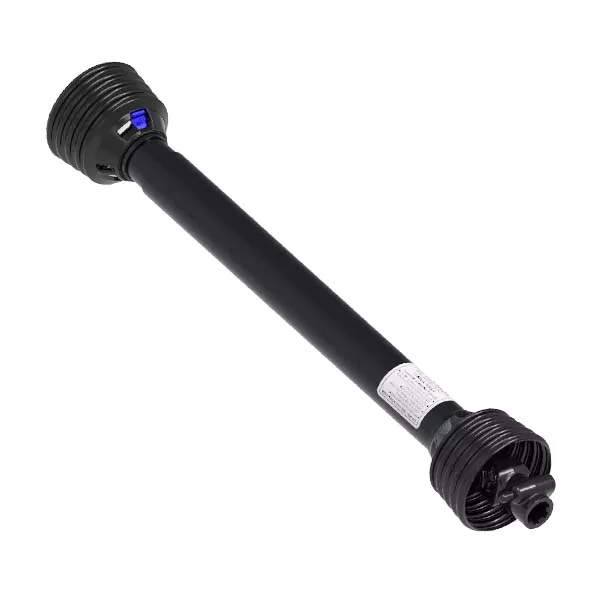

PTO Shaft Replacement Of Weasler 6 Series

Constant power and high performance PTO drive shaft is the most important drive shaft solution in agriculture and lawn industry. The constant power PTO drive shaft is a complete assembly from the tractor to the implement. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Constant power PTO drive shaft can perfectly replace Weasler brand 6 series

Advantages of constant power PTO shaft -Design adjustability (cutting by length) capability. -Interchangeable with the most competitive models. -Spline and square shaft sections are available. -The simple locking structure allows quick and easy assembly or disassembly using simple tools (such as keys, coins or screwdrivers). The available extended lubrication electronic kit can reduce the downtime, and the lubrication interval is 50-250 High-temperature three-lip seal can better retain grease. -Customer specific engineering and sales support. Design features -Easy to lock protection system: provide full coverage under the maximum angle, 360 ° friction welding on the protective cover, black, UV resistant and ozone resistant, cold weather impact grade of - 35 ° C, meet and exceed all applicable safety standards, and the removal and installation process is fast and simple. -Yoke: interchangeable with all other Everpower yokes and standard yokes on the market, cast iron collar, through hole, to prevent debris from gathering inside. -Cross and bearing kit: high torque capacity and longer service life. It is made of high-quality steel to improve strength. The standard kit can be upgraded to or exchanged with the electronic kit. -The same component design as Everpower's household and metric product lines.

Weasler 6 Series PTO Shaft Replacement If your farm needs to replace the PTO shaft, you can choose Weasler 6 series. These shafts have a 6-spline tractor end and a circular implement end, allowing you to drive the equipment easily. These shafts also have different spline sizes, so you can match them perfectly with your implement and tractor. They also have many functions, including safety chain and solid shield to prevent accidental damage during transmission. How to disconnect the PTO shaft from the tractor Before starting to use the tractor, make sure that the engine is completely switched off. This is critical so that you will not hurt yourself or others when removing the PTO shaft. In addition, you should wear all necessary safety equipment and ensure that you use the tools suitable for work. It is very important not to detach the PTO shaft from the moving tractor, as this may cause serious injury or even death. How to remove the PTO shaft from the tractor The first step to disconnect the PTO shaft is to reach under the safety shield of the implement. After reaching this area, look around for the pin or button that secures the implement shaft to the tractor. You can also find this position by looking at the tractor's PTO spindle. Once you find this, press it with your finger or thumb. This will release the PTO shaft from the tractor main shaft. If you have problems, you can hit the shaft with a hammer to help it loosen. However, when the tractor is running, it should be avoided to hit the shaft with a hammer, because this may backfire and cause accidents. Alternatively, you can pour oil onto the PTO shaft to disengage it from the tractor. This method may not be so effective, although it will work. For best results, you should always lubricate the PTO shaft to prevent the failure of the universal joint and to prevent the end thrust from damaging the gear box of the implement. Make sure to lubricate the shaft regularly or according to the maintenance plan. Lubrication recommendations According to general experience, universal joints should be lubricated every 20 hours or 8 hours under severe conditions. It is also important to fully open the protective cover and allow grease to flow to all cross bearings, especially if the PTO shaft is overheated. For example, if the shaft overheats and only one of the four ports is open, the grease will not reach each cross bearing, causing them to fail. This is why all ports on the PTO shaft must be lubricated and the specific lubrication recommendations on the product lubrication table must be followed. The upper supporting shaft is an important part of agricultural equipment. It is connected to tractors, combine harvesters and harvesters and often bears high loads. This constant stress will cause shaft compression and eventually failure.

6 Series PTO Shaft Parts

Part Number	Cup Diameter	Length (B)	Snap Ring	Series
1-1475	0.9687	1.453	inside	L6

6 Series Square Or Rectangular Parts

Shield	Shield Bearing	Length	Shield Bearing ID
69-0648	56-1600	48	1.83
69-0648	56-0600	48	1.50
900-2548	920-0260/ *0415169	48	1.375

6 Series Splined Parts

Part Number	Bore	Type
857-1420	1.250-.250 round	clamp
850-1420	1.250-.250 round	straight round
850-1422	1.375-.312 round	straight round
150-1421	1.375-21 spline	QD collar
150-1406	1.375-6 spline	QD collar

6 Series Quick Disconnect Yokes

Part Number	Diameter	No of Splines
101-0610	0.981	10
105-0615	1.00"	15
100-0621	1.375	21
100-0606	1.375	6

6 Series Clamp Yokes

Part Number	Diameter	No of Splines	Bore	c-e Length	Clamp Type	Notes
6 Series Splined Clamp Yokes
06091-1461	.875	20	1.4	2.53	double bolt	splined
807-0615	1.00	15	1.2"	2.5"		splined
6 / 0600 Round Clamp Yokes
807-0614	0.875	.187				round
06091-2664	0.875	0.188				round
807-0616	1.00	0.250				round

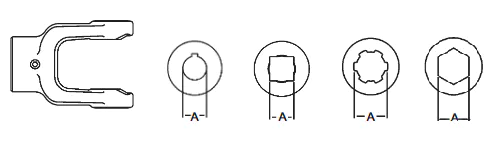

6 Series Straight Bores

6 Series Round Bores

Part Number	Bore	Key	(c-e) Length	Bore Length
806-0610	0.625	.187
806-0612	0.750	0.187 / 0.250
806-0613	0.812	0.187 / 0.250
806-0614	0.875	0.187 / 0.250
800-0615	0.9375	0.250	2.5
806-0616	1.00	0.187 / 0.250	2.5	1.125
806-0618	1.125	0.250 / 0.312
806-0619	1.187	0.250 / 0.312
806-0620	1.250	0.250 / 0.312	2.5

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
