Vietnam Economical Custom Design W 2100 Series Walterscheid Replacement PTO Shaft Tariff-free

W 2100 Series PTO Shaft Replacement of WalterscheidThe standard design applies to drive shafts that use parallel shafts. According to the application, it is recommended to operate the simple joint to a maximum angle of 25 °. During continuous operation, a constant angle of up to 15 ° shall......

Send Inquiry

Product Description

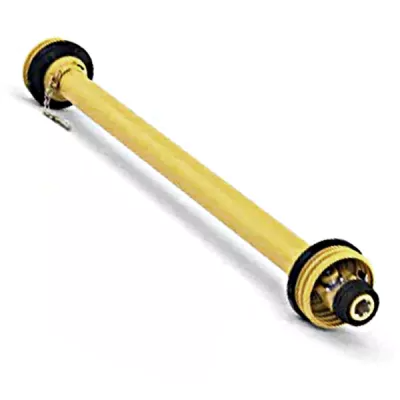

W 2100 Series PTO Shaft Replacement of Walterscheid

The standard design applies to drive shafts that use parallel shafts. According to the application, it is recommended to operate the simple joint to a maximum angle of 25 °. During continuous operation, a constant angle of up to 15 ° shall not be exceeded. Advantages of W 2100 series PTO shaft The W series PTO drive shaft provides proven HZPT technology and is perfectly designed for all applications. The outstanding advantages of this PTO drive shaft are its long service life, ease of use and excellent safety features. For decades, HZPT has been the guarantee of the highest quality. The W series is optimized for simple to complex transmission tasks. It impressed users with its rugged design and high reliability in daily use. Another advantage is that all components of the PTO drive shaft W series can be easily replaced to increase the convenience of use, or if spare parts are needed.

Tips for replacing the PTO shaft with Walter scheid Walter scheid's replacement PTO shaft is designed to meet the needs of a wide range of applications. It is made of high-quality materials and provides warranty. PTO shaft is a key component of tractor or implement. It transmits power to various accessories, including flail mowers, wood cutters, rotary harvesters and combine harvesters. These equipment are under high pressure, so it is very important to complete the work safely and quickly. When using agricultural equipment, the manufacturer's instructions and best practices must be followed. This will protect you from injury and ensure that you do not damage any components on the tractor or implement. Before starting to connect the implement, it is better to be familiar with the attachment and its PTO shaft. It is also a good idea to read the attached manual. Once you have collected all the necessary tools and information, you should use an implement to connect it to the PTO. Connecting the implement to the PTO may take a long time, so there are some tips and tricks to help speed up the process. 1. Use car floor mats, a carpet or a piece of strong cardboard to reduce the pressure on the knee when hanging tools. 2. Use the correct implement PTO shaft adapter for connection - it should be a universal joint installed at the end of the implement. The splines on the universal joint must be aligned correctly so that the implement will not rotate when connected to the PTO. 3. Use proper PTO shaft shield to protect the implement and its accessories from damage. The telescopic part of the protective cover must be slightly shorter than the length of the telescopic half on the PTO drive shaft to prevent jamming when lifting the implement. 4. Check the PTO drive shaft to ensure that it is in good condition and the splines are correctly aligned. If the splines are not aligned, the PTO may need to be replaced. 5. Before turning off the engine, be sure to lock the tractor PTO in the extended position. This is a good way to ensure that the implement remains in its original position when the tractor is not running and prevent it from falling back to the ground, thus causing injury. 6. Fix the restraint chain close to the O-ring guard on the implement and the U-shaped guard on the tractor to ensure that it will not move when connecting the implement to the PTO. 7. If the three-point implement is connected to the PTO, remove the drawbar from the implement, because the implement will be damaged due to shaft impact when it is lowered. If you have any questions about how to connect the implement to the PTO, please call HZPT, and our knowledgeable technicians will be able to answer them for you. Specification of W 2100 series PTO shaft

Long description	PTO drive shafts complete standard series W 2100
Application range	* Small crop sprayers * Tedders * Windrowers
Properties	* Tension side 1-3/8" (6) shaft collar kit * Machine side 1-3/8" (6) slide pin * Lubrication frequency from 50 to 100 hours * Fulfilling the requirements laid out in EC 89/392 EEC * Fulfilling the safety standard EN12965 * CE marking available
Consists of	* PTO shaft with shielding * Declaration of conformity * Instruction manual
Technical info	* See Walterscheid instruction manual * Max. dynamic capacity 540 rpm: 12 kW, 210 Nm * Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm * Values at working angle 5° and service life 1000 hours * LZ = slid in length in mm, from intersection to intersection

Is the PTO shaft North America or metric?

The simplest way to determine whether the PTO is a North American PTO or a metric PTO is to determine the shape of the oil pipe and shafting. If the oil pipe/shaft is square, rectangular, hexagonal or spline, the PTO is domestic. Metric if the pipe/shaft is bell, lemon or star. There are two types of metric transmission systems: German (Waltschede brand) and Italian (Bondioli and Pavesi). The shafts/tubes in Germany have lemon and star outlines, while the ones in Italy have bell design.PTO Domestic North American tubing shape PTO Metric tubing shape PTO tubing shape Bell Italy

What series is the transmission system?

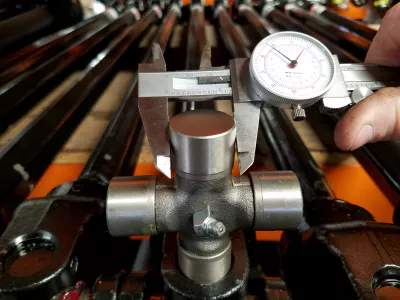

The accurate method to determine your PTO series is to measure the spider and bearing set at the tractor end of the transmission system twice. Use a caliper to measure the outer diameter of the universal joint cover, which is the same as the inner hole of the measuring yoke lug. Secondly, measure the U-joint in two directions. Use the spider and bearing identification table to match these measurements and easily determine the remaining PTO components required or the entire drive train required.

PTO shaft of agricultural gearbox The PTO shaft is an extremely complex mechanism that allows the implement to draw energy from the engine. It works with the mechanical agricultural gearbox. The PTO shaft can be installed on the vehicle transmission and is an important part of the system. The high-quality PTO shaft shall be durable enough to withstand torque and minimize vibration. HZPT produces various durable PTO shafts to meet all your requirements. Agricultural gearboxes are also available. Contact us now!

Why choose us? 1. Engaged in agricultural machinery manufacturing and sales for more than 20 years. 2. "ever power" and "HZPT" are produced in Vietnam. 3. Certification 4. Strict quality control to provide customers with the best service. 5. We can provide high-quality and fast after-sales service. 6. Our goal: win-win. We can design and produce machines according to customers' needs. 8. We have developed dozens of replacement parts for Japanese tractors, and we can deliver these parts with the machine.

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
