Product Description

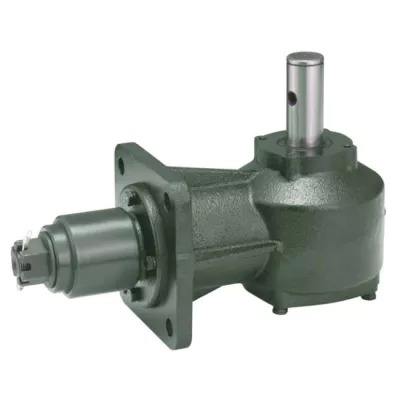

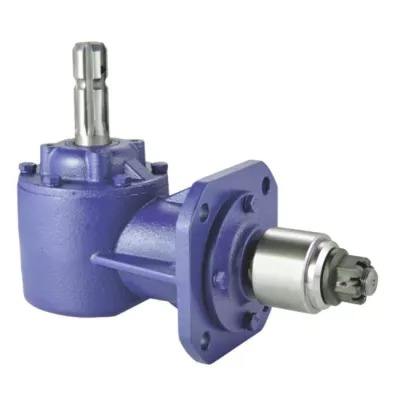

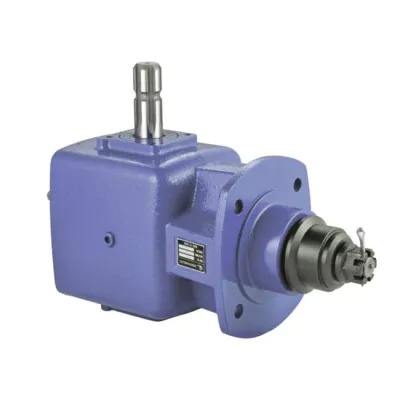

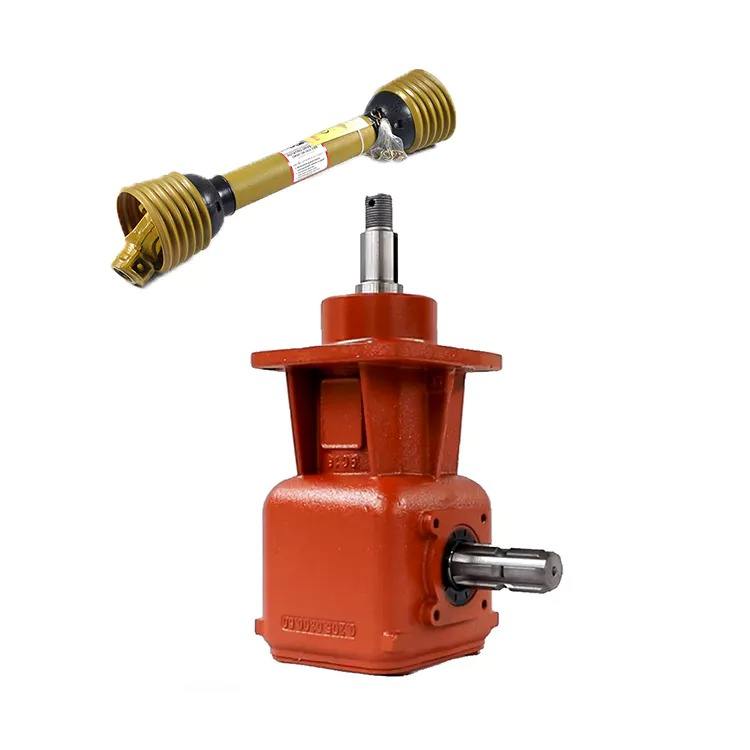

EP-9.311-JCG Rotary Tiller Cultivator Gearbox for Agricultural

Purchase of rotary tiller cultivator gearbox The gearbox of rotary tiller cultivator is an integral part of your farm equipment, which may be a huge expense. It is important to buy a high-quality gearbox, which can be used by you in the next few years. At HZPT, you can find a variety of agricultural equipment gearboxes. We provide free delivery services for most projects. The difference between a cultivator and a cultivator is simple, but the boundary may become blurred. The tiller is designed to dig deep into the soil and prepare a garden bed, while the tiller is designed to carry out fine operation at the early stage of preparing the bed or around the planting plants, so as to stir the loose soil before fertilization or irrigation. Generally speaking, tillers are more suitable for breaking soil on new garden beds, working in heavy clay, or preparing soil for turf. At the end of the gardening season, they can also be used to screen rocks, break up soil lumps, and mix the remaining plant materials into the soil. Most tillers are driven by gas engines, but electric power is developing. Some hybrid machines even combine the power of the front gear tiller with the versatility of the electric model. There are many different types of rotary tillers on the market, and they all have different uses. Some are designed for tractors, while others are designed for hand tools. One of the most common types is the front tooth model, which is the best choice for working on the ground without obstacles or obstacles. These devices are usually powered by a small four-stroke gas engine, and have a narrow head and short curved sharp teeth. They are very suitable for turning soil around vegetable rows, and even for weeding. Another type of rotary tiller is the rear harrow type. Its engine is larger than the front harrow type, which is most suitable for rotating on large vegetable beds. These devices are usually tractors with a rated power of 130 HP, and can be equipped with other accessories, such as packers and rollers, to adjust the working depth. No matter which type of rotary tiller you choose, you need to ensure that the gearbox is properly lubricated. This will help keep it running smoothly and prevent wear. A good rotary tiller gearbox oil will contain additives to protect it from corrosion and ensure its normal operation for as long as possible. The gearbox of rotary tiller is an important part of the machine. It must be designed to work under various operating conditions. It should be able to withstand high pressure and vibration. It should be made of durable materials, such as cast iron or graphite.

Rotary tiller cultivator gearbox The gear box of rotary tiller cultivator is one of the most important parts of rotary tiller. A good rotary tiller gearbox will make your machine work normally and last longer. It is also a key part to maintain the power and efficiency of the machine. How to select the right oil for the Tiller transmission When you are purchasing the gearbox of rotary tiller, you will want to find a gearbox made of high-quality materials. This is especially true if you plan to use the transmission in harsh conditions. For example, cast iron gearboxes have higher durability and reliability than graphite gearboxes. What to look for in the tiller gearbox The tiller gearbox design has many functions to help your rotary tiller work efficiently. The gearbox can be adjusted to adapt to various operating conditions, and it is easy to change the rotor speed as required. Considerations when selecting the PTO shaft for the transmission PTO shaft is an important part of agricultural gearbox. It allows you to transfer more power from the tractor to the rotary tiller gearbox, thus improving the torque and performance of the machine. The PTO shaft is an integral part of the rotary tiller, which will be used by you in the next few years. In order to ensure the normal operation of the PTO shaft, it is very important to purchase high-quality products at HZPT. We provide various PTO shafts for your machine, so you can make sure to find the right shaft for you.

ITEM	HC-9.311-JCG Rotary Tiller Gearbox
Ratio	1:3
Teeth	36/12
Module	4.35
Power(HP)	50
Rated Input	540rpm
Input/Output Description	1 3/8 Z6 Optic axis
Weight(N.W)	21KG

Glad to tell you we can manufacture all kinds of gears according to clients drawing and specifications, specializing in
non-standard items.
At present, we have all kinds of CNC machines and gear machines.
If you need OEM gears by casting, forging, or machining, please feel free to contact us. We pay most attention to quality and our QC will inspect the goods for you before delivery. I hope the good quality and lower price is your best choice.

We Also Supply PTO Shafts

How to replace the gearbox on your rotary cultivator?

1. Unhook the tiller from the tractor.
2. Make sure the tiller is securely blocked and leveled.
3. Remove the PTO shaft from the tiller.
4. You must reverse tines on the tiller before reverse operation.

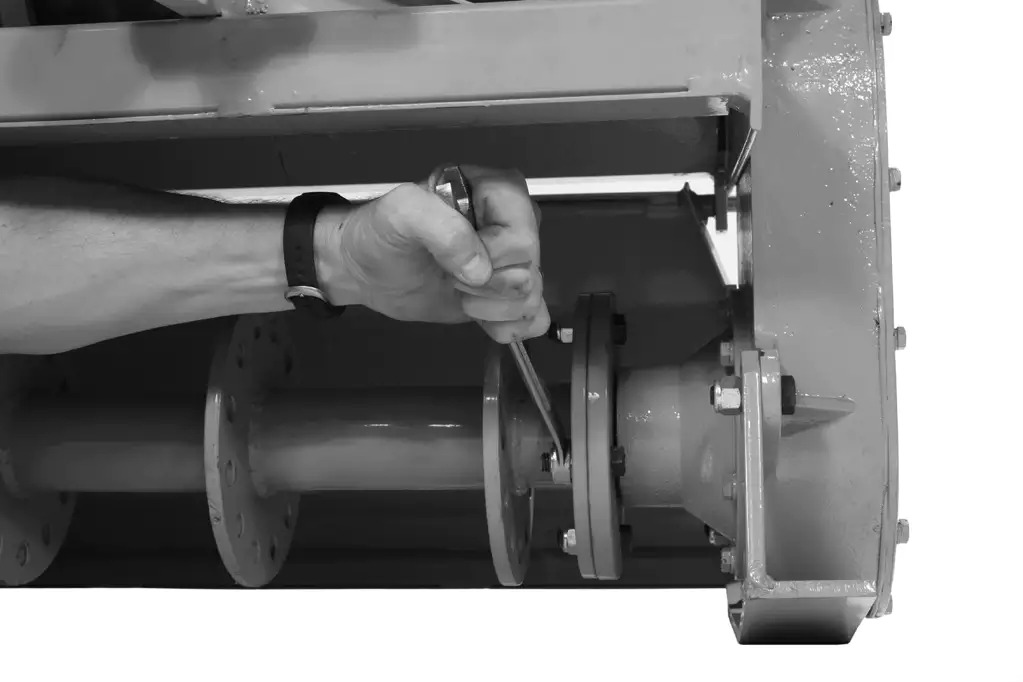

5. To reverse the tine direction, remove four (4) bolts at each end of the tine carrier.

6. Carefully drop out the tine set and turn 180° and place it in front of the tiller. Before reattaching the tines, remove the gearbox.

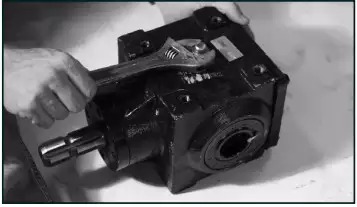

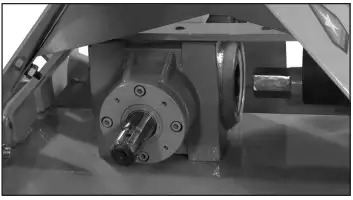

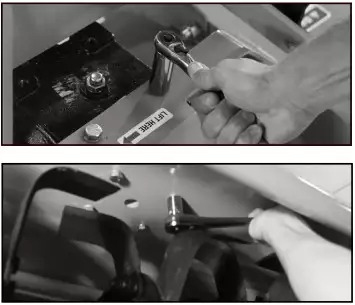

7. Loosen and remove a total of (6) bolts, (2) on top of the gearbox and (4) underneath.

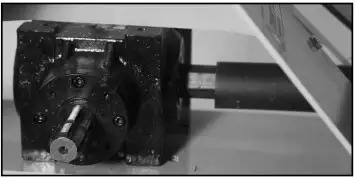

8. Slide gearbox to left approximately 5”. Side key shaft should drop out of gearbox on the right-hand side.

NOTE: If the key shaft does not come out of the gearbox, simply slide the key shaft out of the side gearbox first and then remove it from the main gearbox.

9. Slide gearbox forward and out.

10. Remove the fill plug from the top of the gearbox.

11. Remove the flat plug from the bottom of the gearbox. Switch the fill plug from the top of the gearbox to the bottom and flat plug from the bottom to top

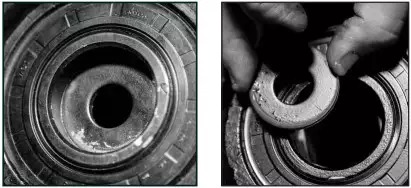

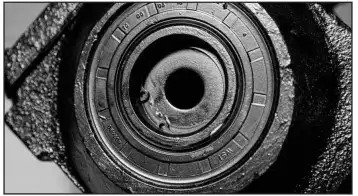

12. On the side opposite where the key shaft was inserted, find the washer held in by a snap ring.

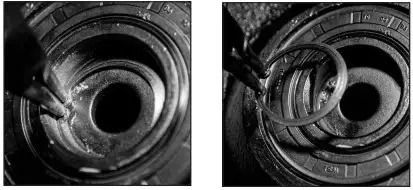

13. Using snap ring pliers, carefully remove the snap ring

14. Remove washer from key shaft hole as well.

15. Put washer and snap ring back into the hole where the key shaft was just removed.

16. Flip the gearbox over and re-insert it into a frame
17. Slide the key shaft into the now freed-up key shaft hole on the opposite side of the gearbox.

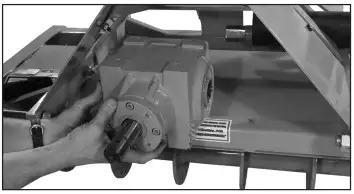

18. Slide the gearbox back to the center of the tiller
19. Reinsert 6 bolts (2 top, 4 bottoms). Do not tighten until all 6 are successfully started.

20. Once the key shaft is successfully reinserted and all 6 bolts are started by hand, tighten all 6 bolts on the gearbox. Do not tighten any of the six gearbox bolts until all six have been threaded and started, then tighten.

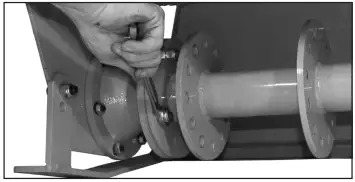

21. Carefully reattach to each hub.

NOTE: Instructions partially made with tines removed for instructional clarity only Tine set is heavy and contains WARNING sharp edges. Handle carefully!

22. Your tiller unit should now turn and till in the reverse direction.

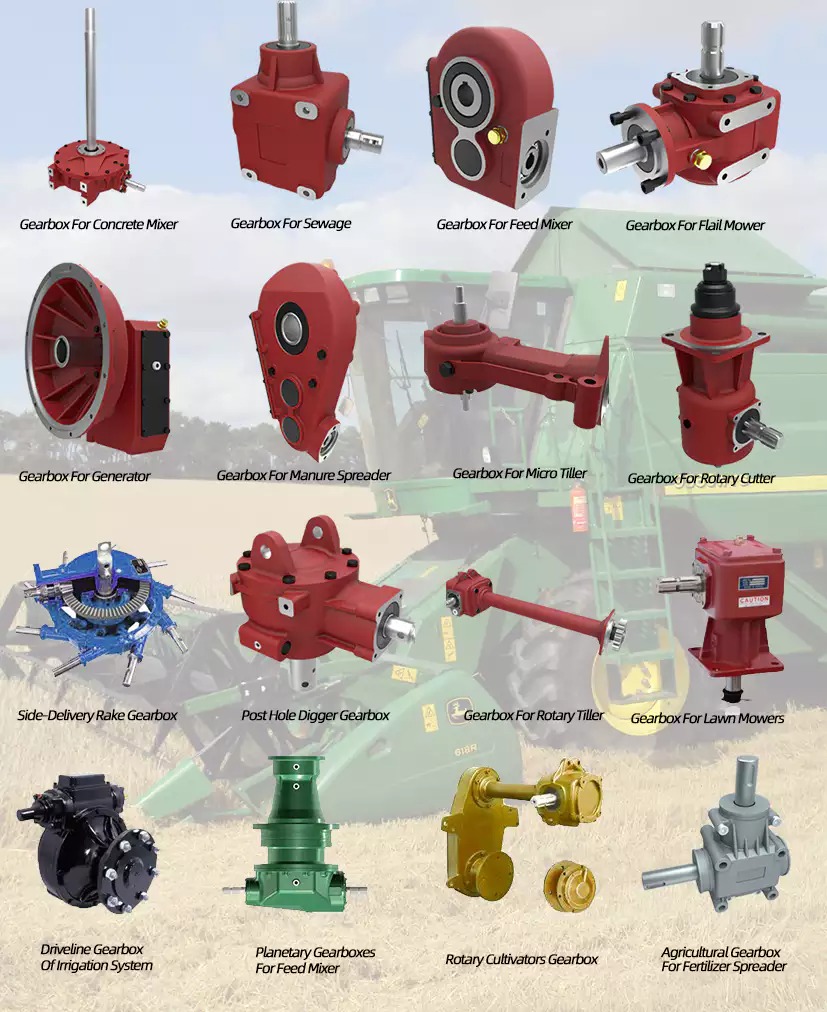

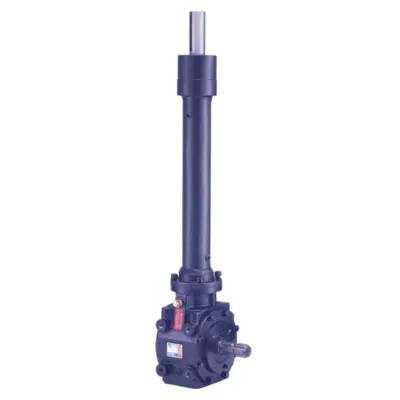

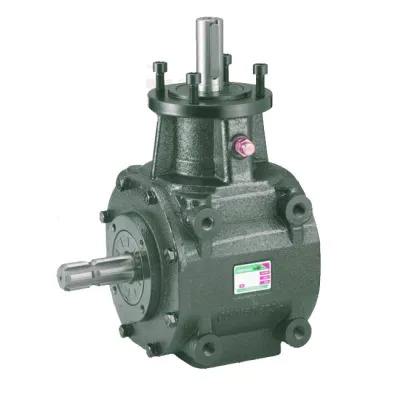

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop

Hangzhou Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D,manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox,spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

Click here for more details!

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
