Vietnam Exquisite Structure Weasler 12 Series Replacement PTO Shaft Tariff-free

PTO Shaft Replacement of Weasler 12 Series12 series PTO shaft specifications1-3/8 ″ - 6 spline spring Lok tractor yokeA cross kit is required.An implement yoke is required.19 hp @ 540 rpm48 ″ compression length (dimension A)Bore 1Minus End YokeBore 2Minus End YokeCompressed (Closed) Length41.00 inch......

Send Inquiry

Product Description

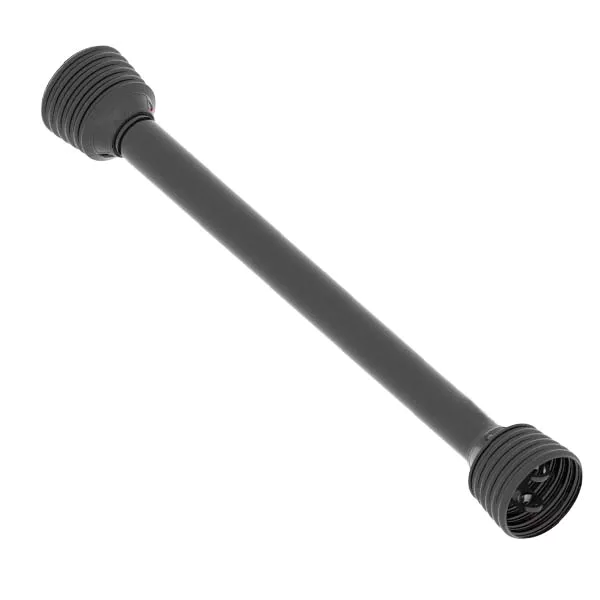

PTO Shaft Replacement of Weasler 12 Series

12 series PTO shaft specifications 1-3/8 ″ - 6 spline spring Lok tractor yoke A cross kit is required. An implement yoke is required. 19 hp @ 540 rpm 48 ″ compression length (dimension A)

Bore 1	Minus End Yoke
Bore 2	Minus End Yoke
Compressed (Closed) Length	41.00 inches	1041 mm
Compressed Overall Length	49.12 inches	1248 mm
Connection 1	YOKE ARMS
Connection 2	YOKE ARMS
Extended Length	69.75 inches	1772 mm
Extended Overall Length	77.87 inches	1978 mm
HP@1000RPM	29 HP	22 kilowatts
HP@540RPM	19 HP	14 kilowatts
Length	49.12 inches	1248 mm
Outside Diameter	6.00 inches	152 mm
Shipping Dimensions	41" L × 6" H × 6" W	104cm L × 15cm H × 15cm W
Shipping Volume	1476.00 in3	24187 cm3
Shipping Weight	23.70 pounds	11 kilograms
Weight	23.70 pounds	11 kilograms

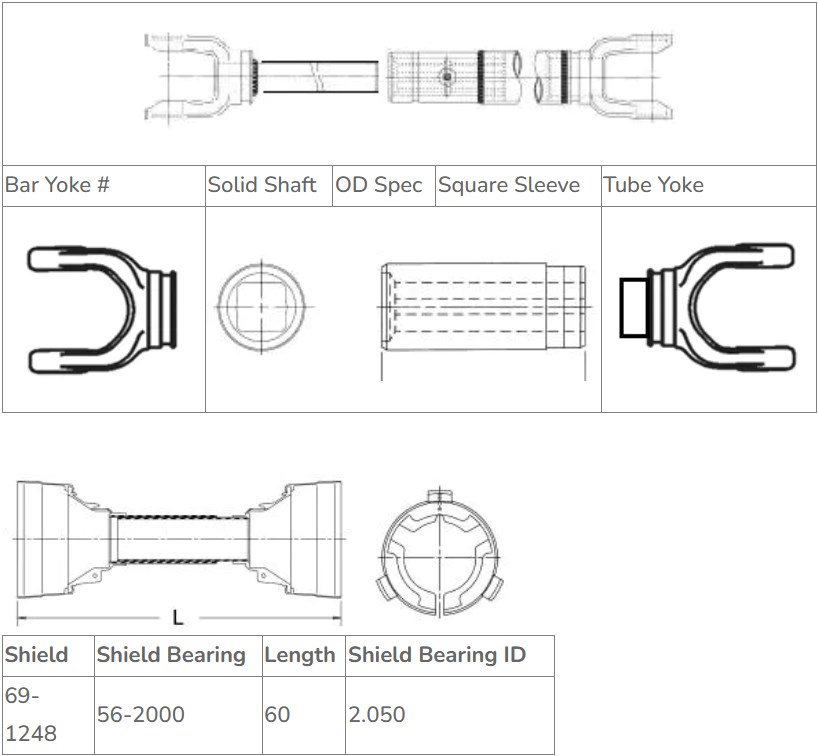

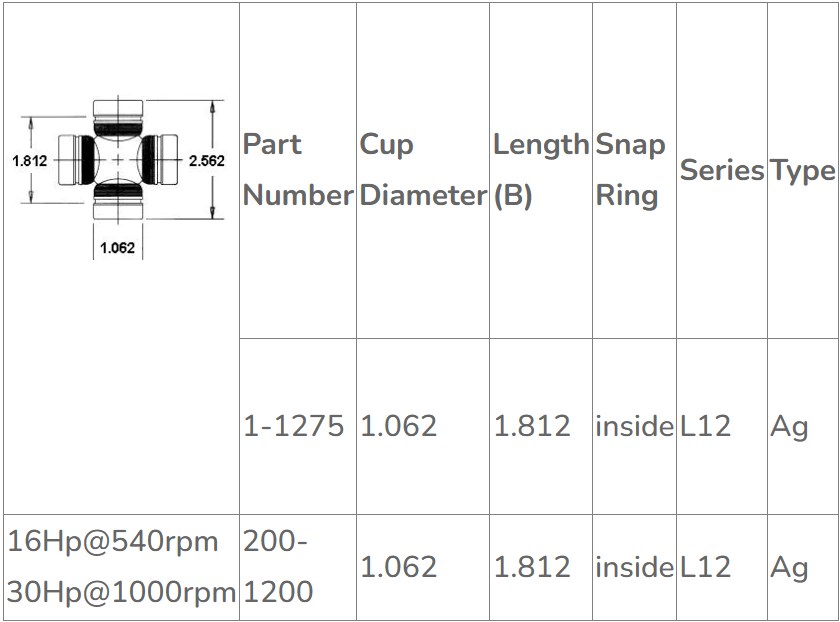

12 Series PTO Shaft Parts

12 Series Square Or Rectangular Parts

12 Series Quick Disconnect Yokes

Part Number	Diameter	No of Splines	C-E Length
12-2300	1.00	15	3.25
100-1221	1.375	21
100-1206	1.375	6	4.0

6 Series Clamp Yokes

Part Number

Diameter

No of Splines

Bore

c-e Length

Clamp Type

Notes

12 Series Splined Clamp Yokes

6211353

1.00

Splined

12 / 1200 Round Clamp Yokes

12 / 1200 Hex Clamp Yokes

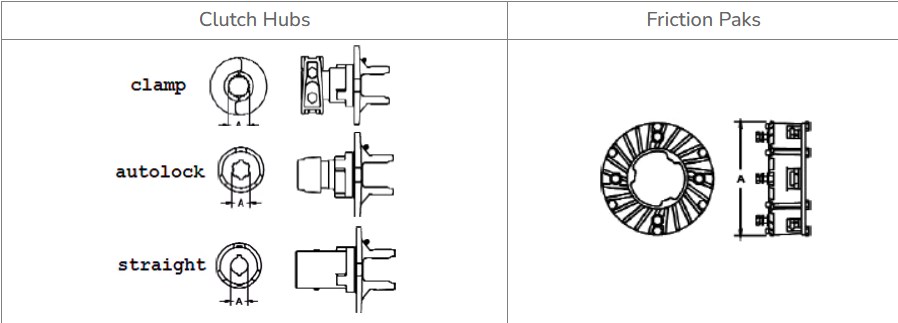

Torqmaster Clutches

PTO shaft of agricultural gearbox PTO shaft is an important part of agricultural gearbox. Improper PTO maintenance will seriously damage the PTO mechanism. Since the PTO shafts are responsible for connecting the transmission to the implements, they are essential to maintain the performance of agricultural implements. To avoid vibration problems, a good PTO shaft should be able to resist torsion and shear stress. As a professional mechanical transmission supplier, we provide various durable PTO shafts to meet the requirements of all customers.

We also supply agricultural gearbox:https://planetary-gearboxes.en.alibaba.com/productgrouplist-200696697/Agricultural_Gearboxes.html?spm=a2700.shop_index.88.62

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
