Vietnam Factory 600L Series Wheel Drive Planetary Speed Reducer Gearbox Replacement of Bonfiglioli

Superior PerformanceThe NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled ......

Send Inquiry

Product Description

Superior Performance

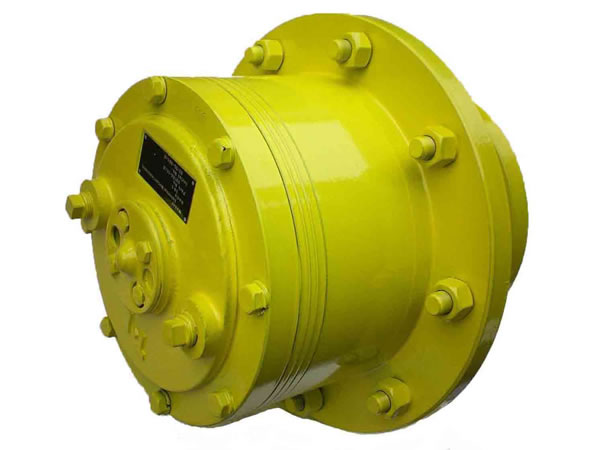

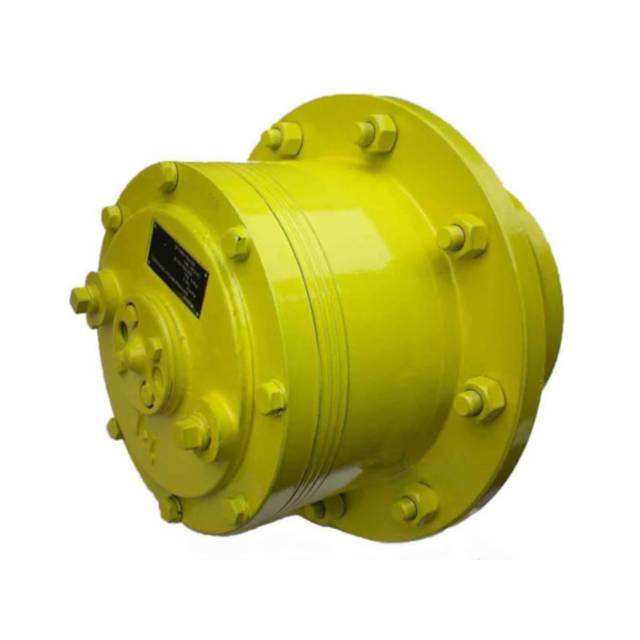

The NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: thegearbox has rotating housing flanges to fit wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strong tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.

Track drives type	Max torque N.m	Range of ratio(i)	Max input speed(rpm)	Braking torque(N.m)
EP601L1A	1750	5.77	1000	450-600
EP603L2A	4000	19-23-32-40	3000	210
EP603L2B	4000	19-23-32-40			210
EP602L2	5000	12.4-25.8			-
EP605L2	7000	22-27-30-42-53			220-310
EP606L2, L3	12000	30-35-43-68-79			300-800
EP607L2, L3	17000	33-75-108			300-600
EP609L2, L3	23000	33-142			300-800
EP610L2, L3	30000	20-111			300-800
EP611L2, L3	36000	41-47			300-800
EP613L3	45000	108			300-800
EP615L3	60000	108			300-1000

The installation dimensions of planetary gearbox, wheel drive gearbox, winch drive gearbox and track drive gearbox produced by us are exactly the same as those of trasmital Bonfiglioli, and the performance parameters are very close to those of trasmital Bonfiglioli, which can be used instead of trasmital Bonfiglioli's products.

bonfiglioli model	601R	603W	605W	606W	609W	611W	613W, 615W
our model	EP601R	EP603W	EP605W	EP606W	EP609W	EP611W	EP613W, EP615W

Click here for more model types!

Construction (dryers, crushing machines, mixing mills, cranes, mobile scaffolds) Material handling (gantry cranes, mobile dock cranes, movable stocks, bridge cranes) Waste and sewage treatment (rotating lters, thickeners, clariers, Warm hoists, agitators) Mine and quarry machines (drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines) Wind energy (pitch drives, yaw drives) Substructures (movable roofs, movable gantries, piling) Steel processing machines (conveyors, extruders, cutting machines, roll benders, rolling mills) Food industry (mixing machines, mixers, conveyors, fruit extractor machines)
