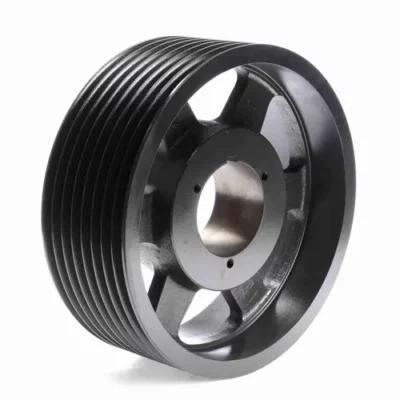

5V Series Cast Iron Eight-Groove Sheaves with Split Taper Bushings for "5V" Belts

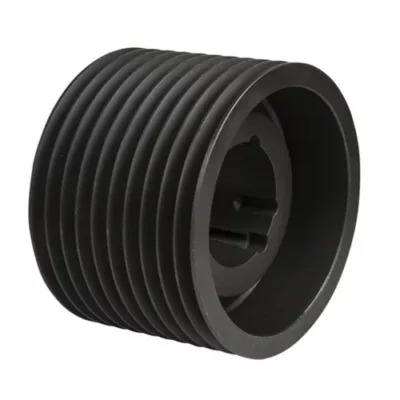

5V series 8-groove tapered bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 7.10 "to 50.0". According to the pulley size, they use Q2, R2, S1 or U1 split taper bushings, which we also have in stock. Most of our 8-groove 5V split taper pulleys are made of high-strength 35 cast iron, coated with phosphate coating and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

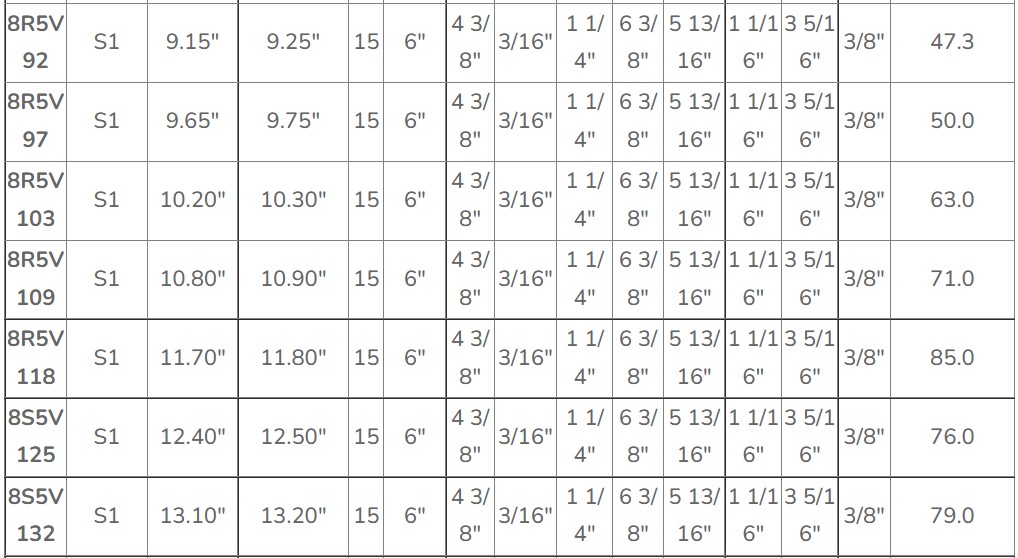

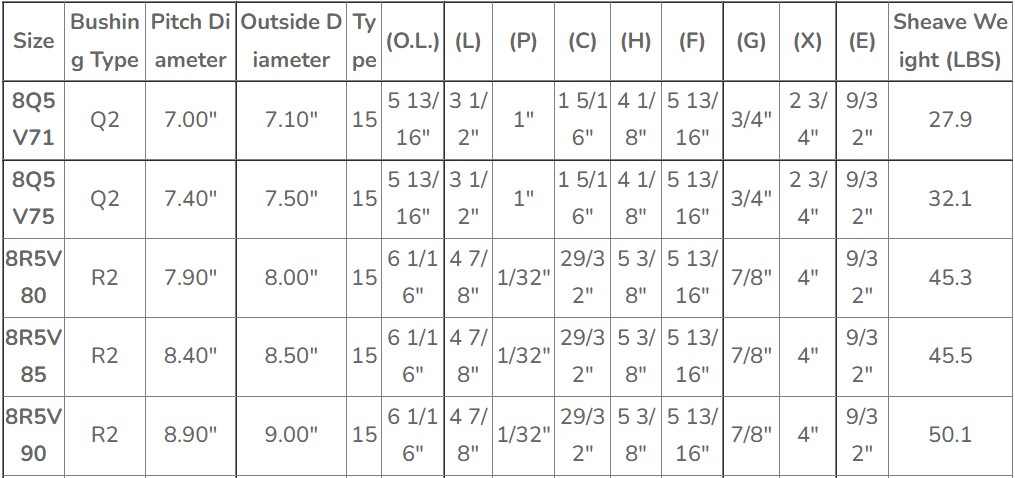

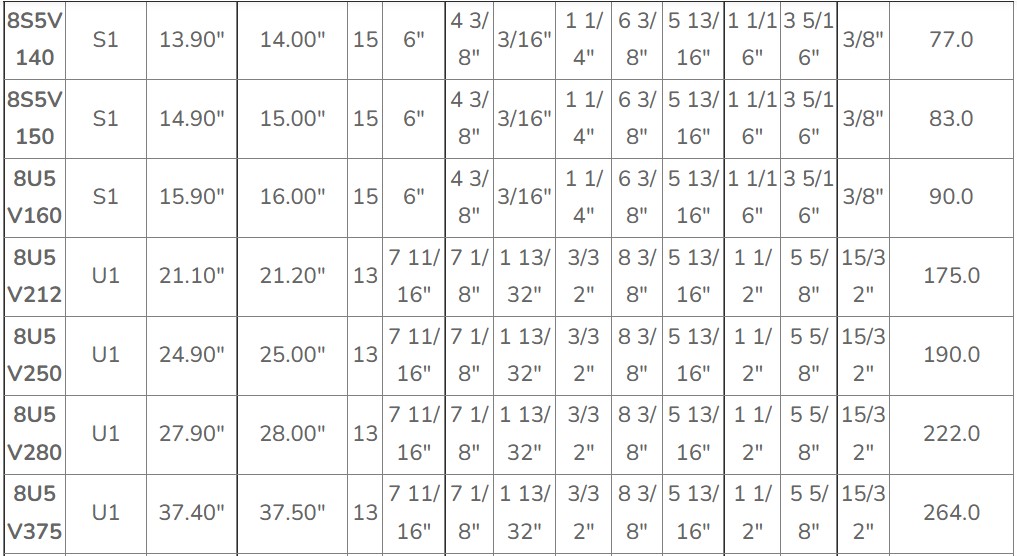

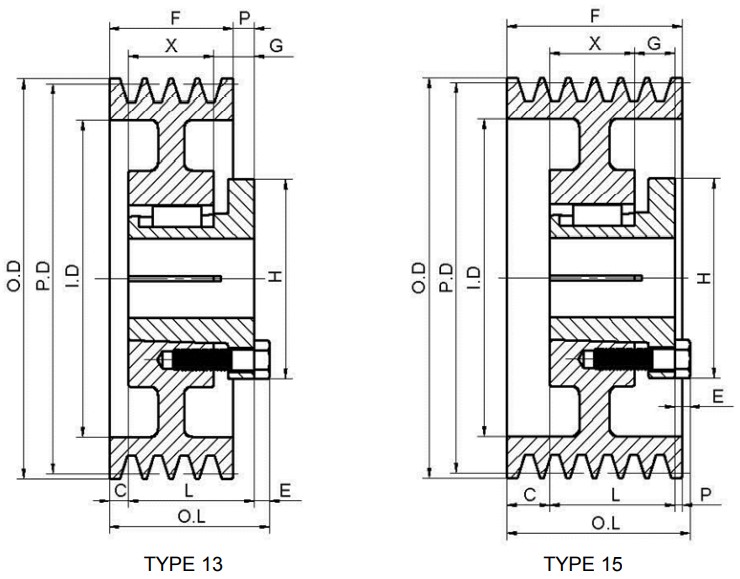

Eight-Groove 5V Split Taper Sheave Size Chart
For more details, please click here to contact us!
Supporting 5V, 5VX series V belt
(1) 5V series V-belt
Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.
(2) 5V series ribbon V-belt
The 5V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ".
(3) 5VX toothed V-belt
The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will be used in conjunction with existing vertical v-belt pulleys/pulleys.
(4) 5VX belt toothed V-belt
All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt. For more information or a quote, please contact us and we are happy to help you.

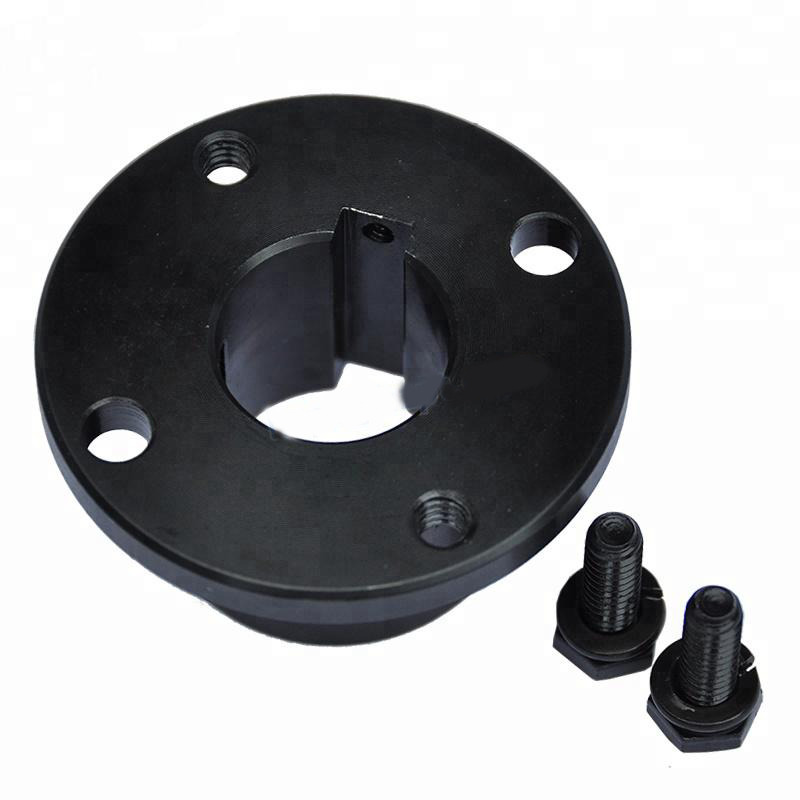

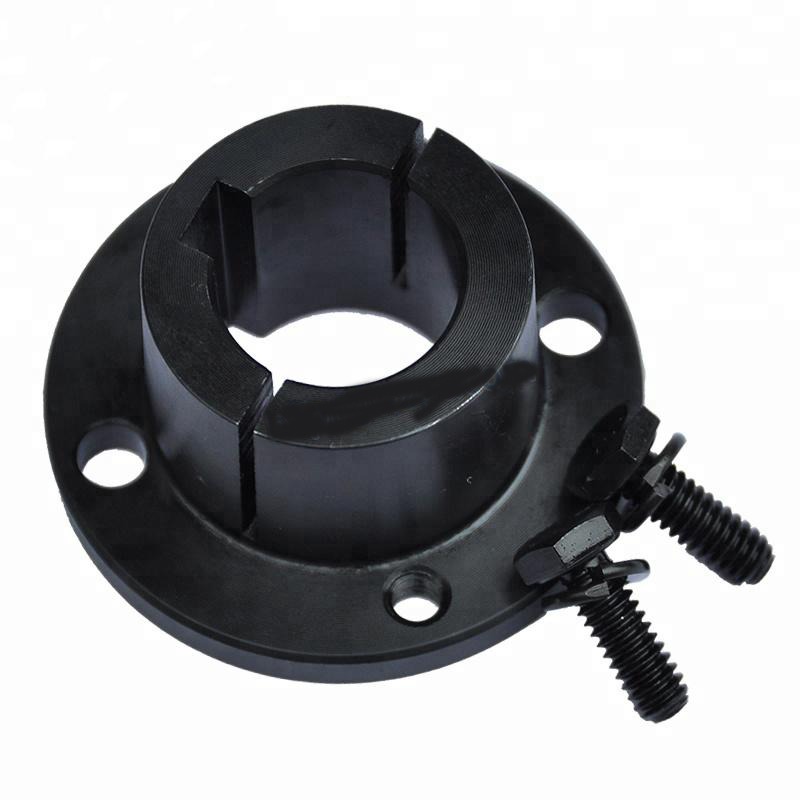

Split Taper Bushings
Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. Split tapered bushes are one of the most commonly used bushes because of their high overall strength, ease of installation and unloading, and high retention for successfully connecting the shaft to the drive or idler gear assembly. The open tapered bushing is used for various pulleys, conveyor pulleys, and sprockets. We have G series to W2 series split tapered bushings, and 0.375 inch to 7.438 inch inch inch and metric hole diameters.

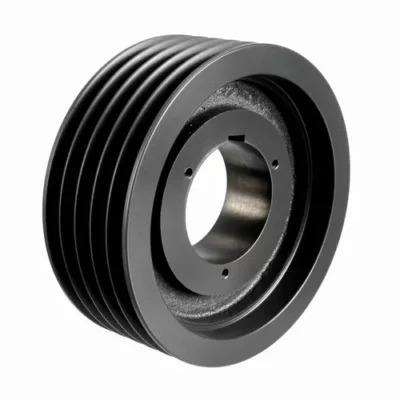

5V pulley of V-belt

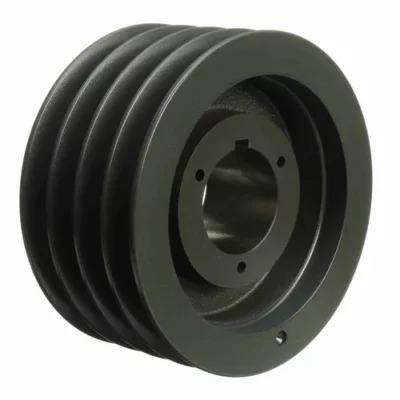

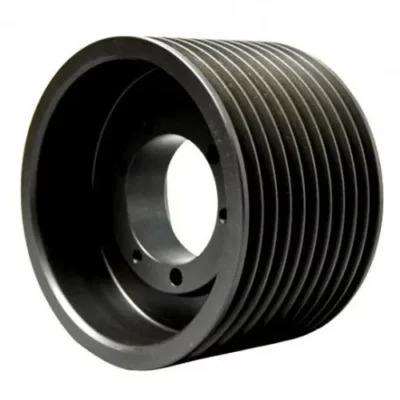

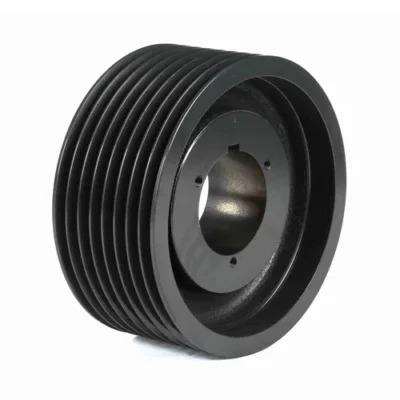

The 5V pulley is specially made for 5V series V-belts and ribbon 5V belts. The size of our 5V v-pulley is manufactured according to ARPM standard, so it can be directly interchanged with other brands. There are only two types of 5V pulley: taper lock and QD (quick disassembly), which can increase the flexibility of the hole diameter range. The difference between our pulleys and other pulleys on the market is that most pulleys are made of Grade 35 cast iron instead of the standard Grade 25 cast iron. This results in stronger pulleys and better wear resistance. In addition, it should be noted that these pulleys, after dynamic balancing, run more smoothly and have less vibration, thus extending the life of bearings and machinery. In addition, they are phosphate and paint to increase corrosion protection.
Features and Advantages of Split Tapered Pulley
1, The belt is a kind of elastic body, which can reduce the impact of load and operate stably without noise
2, Overload will cause the belt to slip on the wheel, thus protecting the whole machine
The grooves of most American standard pulleys are applicable to several different belt types, and the design and application of belts are relatively flexible.
There are many types of American standard pulley grooves and tapered bushes. Some pulleys and bushings can be installed at the front and rear, which has become a solution under harsh conditions in different occasions.
5, American standard pulleys and tapered bushes provide precise balance control and perform well in the transmission.
Common Application of Open Tapered Pulley
Machine tool
Crusher, pulverizer, crusher, classifier, vibrating screen
Material conveying system
Fans, blowers and exhausters
Pumps and compressors
Woodworking saw, milling machine, planer, lathe
Technological Processing
Warehouse inventory
The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
